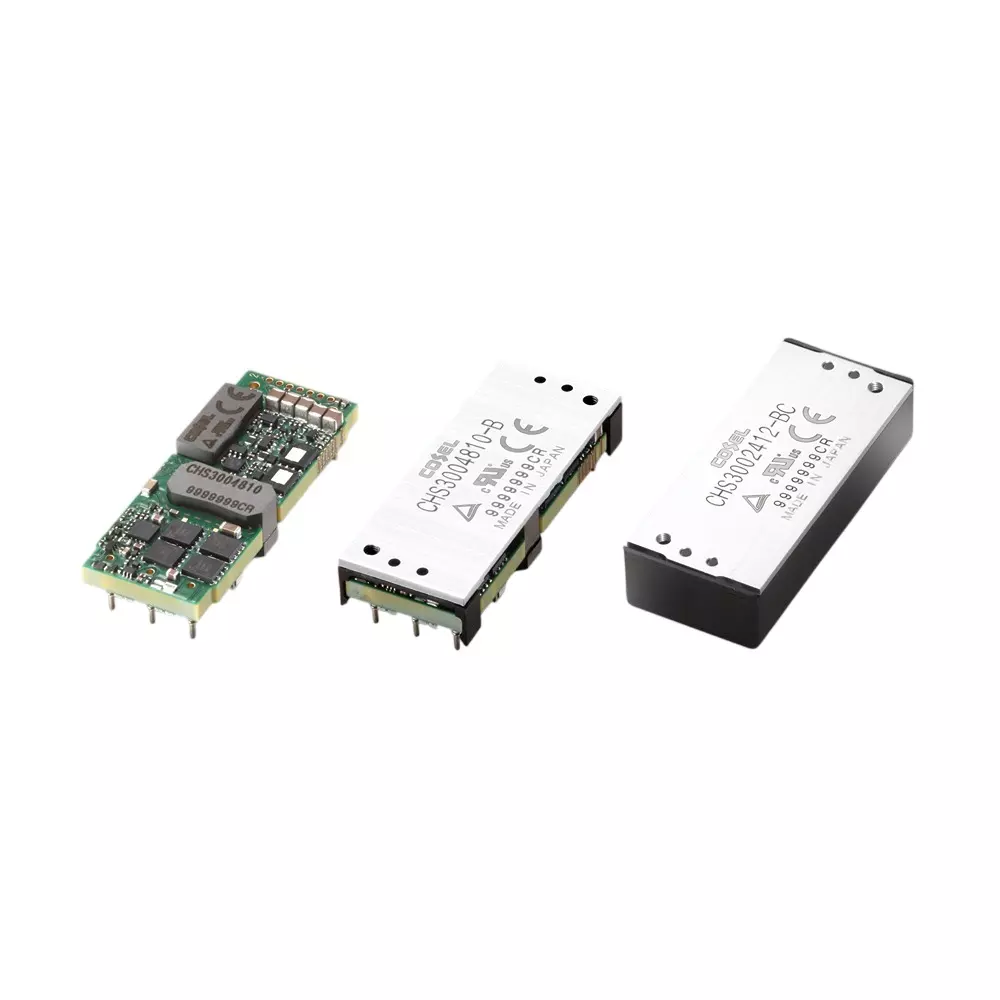

| Type of Product | DC-DC Converter |
| Model No | CHS3004812-U |
| Series | CH |
| Country of Origin | Japan |
Type of Product |
DC-DC Converter |
Model No |
CHS3004812-U |
Series |
CH |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Cosel |
Maximum output power |
300 W |
Output Voltage Adjustment Range |
-10%/10% [Internal fixed (TRM open), adjustable with external resistor] |
Input Voltage (V) |
DC 36 to 76 |
Import Country |
Direct Import from Japan |
Monotaro ID |
19674629 |
Mass (g) |
38 (max) |
Rated Output Current (A) |
25 |
Vibration |
49 m/s² [10 to 55Hz cycle 3 minutes each in X, Y, and Z directions for 1 hour] |
Outer Dimensions, Width W x Height H x Depth D (mm) |
58.4x11x22.86(WxHxD) |
Shape |
Bus Converter / Power Module |
Function |
Remote sensing: possible, remote control: possible (negative logic: L for output ON, H for output OFF) |
Specifications |
Protection circuit latch stop |
Operating Temperature (c) |
-40 to 85℃ |
Rated Output Voltage (V) |
DC 12 |
Cooling Method |
Natural cooling/forced air/conduction |
Overcurrent Protection |
Operates at 105% minimum of rated current (intermittent overcurrent, automatic recovery) |
Input Current (A) |
6.61 typ |
Storage Temperature |
-40 to 100℃ |
Rated Output Power (W) |
300 |
Safety Standard |
UL60950-1, C-UL(CSA60950-1), EN62368-1 certified |
