| Load Regulation | ±1% |
| Type of Product | DC-DC Converter |
| Efficiency (%) | 0.78 |
| Model No | PSD-15C-12 |
Load Regulation |
±1% |
Type of Product |
DC-DC Converter |
Efficiency (%) |
0.78 |
Model No |
PSD-15C-12 |
Series |
PSD 15 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Mean Well |
Output Voltage Adjustment Range |
±2% |
Output Voltage (V) |
12 DC |
Output Current (A) |
1.25 |
Import Country |
Direct Import from Japan |
Monotaro ID |
49500798 |
Packaging Type |
Open frame |
Specifications |

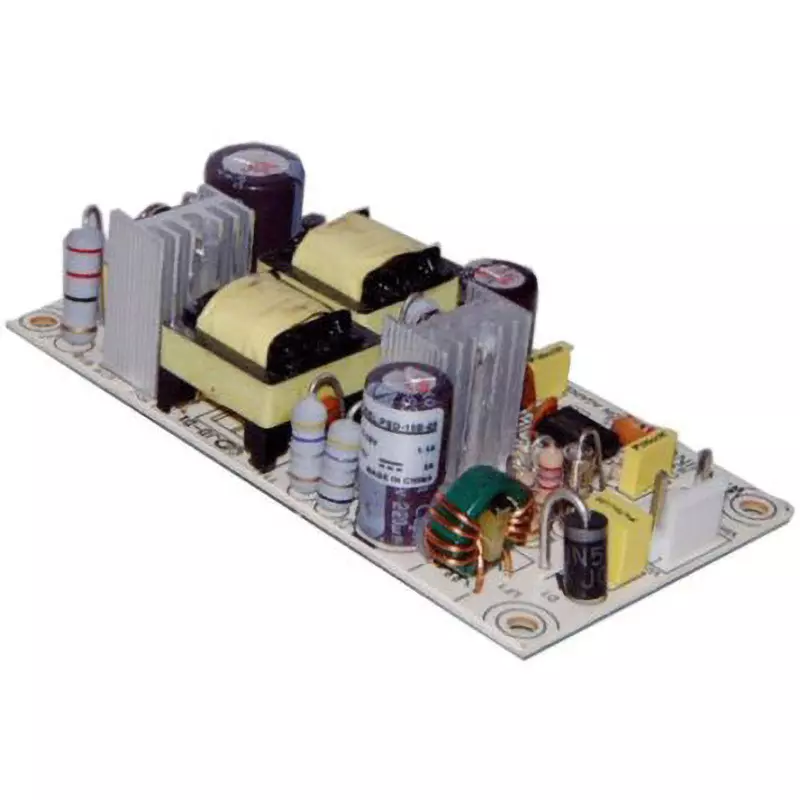

LVD, EMC, CE. Mean Well 15 W Single Output DC-DC Converter - PSD-15 Series. The MEAN WELL PSD-15 series is a high-quality open-frame switching power supply. This 15 W PCB-mount DC-DC converter complies with LVD and EMC directives and has CE certification. The PSD-05 features a wide 2:1 DC input range and 2000 V DC input-to-output isolation. This DC-DC converter features short circuit, overload, overvoltage, and reverse polarity protection. The PSD-15 switching power supply is ideal for a wide range of applications, from general electrical engineering to automotive and battery backup applications. Features include: 2:1 wide input range, short circuit, overload, overvoltage, and reverse polarity protection, natural convection cooling, 100% full-load burn-in test, fixed 67 kHz switching frequency, low cost, and high reliability. |
Operating Temperature (c) |
-10 to 60℃ |
Safety Standard |
EAC, CE, UKCA |
Rated Input Voltage (V) |
48 V DC |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Input Voltage Range (V) |
36 to 72 DC |
Width (mm) |
49 |
Rated power (W) |
15 |
Type of Sign |
Chassis mount |
Insulation Voltage |
1.5 kV AC |
Length (mm) |
94 |
