| Type of Product | DC-DC Converter |
| Efficiency (%) | 79 to 82% |
| Model No | RP-1212D |
| Series | RP |
Type of Product |
DC-DC Converter |
Efficiency (%) |
79 to 82% |
Model No |
RP-1212D |
Series |
RP |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
RECOM |
Minimum Temperature |
-40 ℃ |
Output Voltage (V) |
±12(DC) |
Output Current (mA) |
±42 |
Import Country |
Direct Import from Japan |
Monotaro ID |
48425406 |
RoHS Directive |
Correspondence |
Packaging Type |
SIP7 |
Mass (g) |
2.4 |
Specifications |

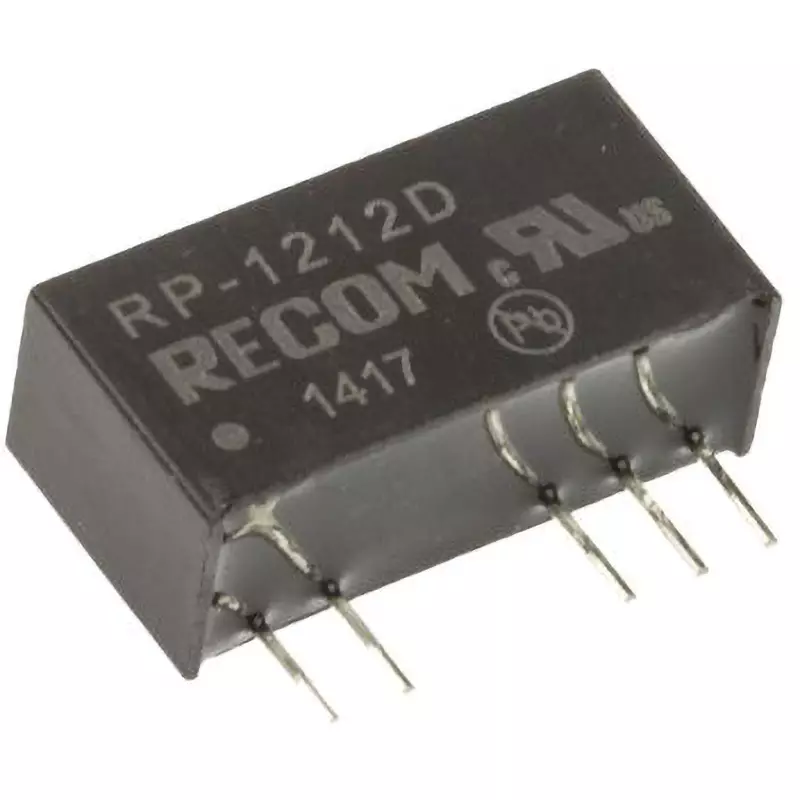

Compliant with EN60950-1, UL609501-1, and EN60601-1. Operating temperature is without derating. Recom 1 W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RP Series. The Recom RP Series offers extremely high isolation of 5.2 kV dc in a compact package. The DC/DC converter is EN60601-1 certified and suitable for medical and IGBT driver applications. Industry-standard pinout Single and dual output options 250 Vac rating 5.2 kV dc isolation makes it ideal for telecom and safety equipment applications UL94V-0 package material High efficiency (80% typical) Short-circuit protection Capacitive input filter |
Type |
dual |
Width (mm) |
7.05 |
Rated power (W) |
1 |
Type of Sign |
Through hole |
Length (mm) |
10.2 |
Highest Temperature |
85 ℃ |
