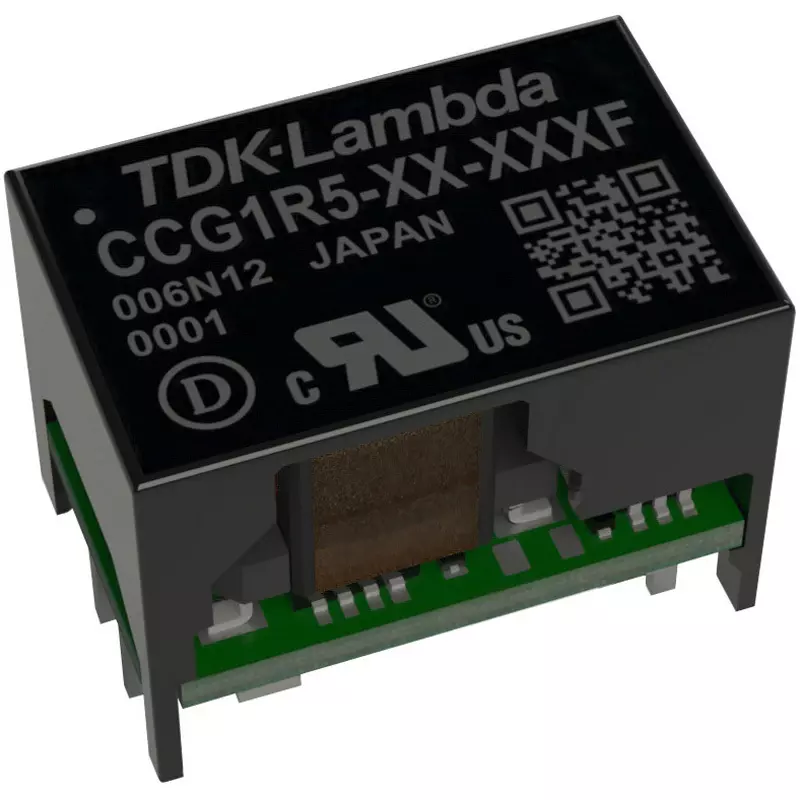

| Type of Product | DC-DC Converter |
| Model No | CCG1R5-48-12SF |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TDK-LAMBDA |
Type of Product |
DC-DC Converter |
Model No |
CCG1R5-48-12SF |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TDK-LAMBDA |
Maximum output power |
1.56 W |
Output Voltage (V) |
11.4 to 13.2 |
Import Country |
Direct Import from Japan |
Monotaro ID |
17507160 |
Mass (g) |
3 |
Shape |
Mounting: PCB |
Specifications |
Efficiency (%) 79 |
Rated Output Voltage (V) |
(DC)12 |
Safety Standard |
(Compliant) CE/UKCA marking, (Certified) IEC62368-1<br> CSA62368-1<br> EN62368-1<br> UL62368-1 |
Rated Input Voltage (V) |
DC :24/48 |
Terminal Shape |
DIP |
RoHS Directive (10 Substances Compliant) |
Correspondence |
Input Voltage Range (V) |
18 to 76 |
Withstand Voltage |
Input - Output: 1500DC: 1min. Input - Output: 1000AC: 1min. |
Dimension (WxDxH) |
15.7x11.5x10.4 mm |
Operating Temperature Range |
-40 to 100℃ |
Insulation Type |
Insulation |
Maximum Output Current (A) |
0.13 |
Ripple and Noise |
Maximum: 200 mV |
