| Load Regulation | ±1% |

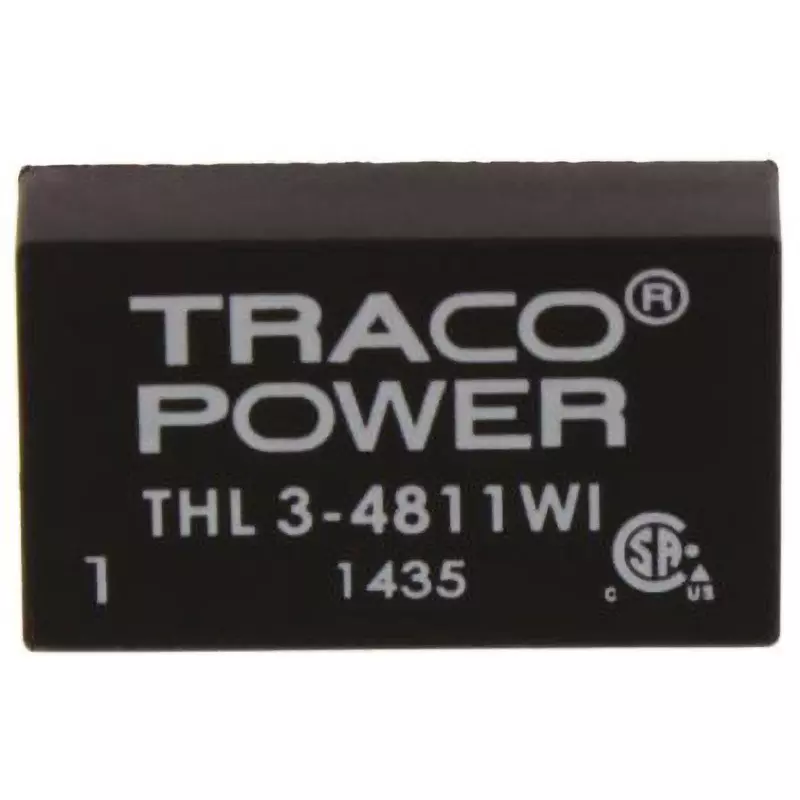

| Type of Product | Isolated DC-DC Converter |
| Efficiency (%) | 0.78 |
| Model No | THL 3-4811WI |
Load Regulation |
±1% |
Type of Product |
Isolated DC-DC Converter |
Efficiency (%) |
0.78 |
Model No |
THL 3-4811WI |
Series |
THL 3WI |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TRACO POWER |
No. Of Output |
1 |
Nominal Voltage |
48 V DC |
Pack of |
10 Pcs |
Output Voltage (V) |
5 DC |
Output Current (mA) |
600 |
Import Country |
Direct Import from Japan |
Monotaro ID |
48779965 |
RoHS Directive |
Correspondence |
Packaging Type |
DIP |
Specifications |
IEC60950-1, UL60950-1. MTBF is the value according to MIL-HDBK-217F (25 ℃). 2.5%/K power derating above +65°C. Traco 3W DIP single/dual output, isolated regulated DC-DC converters-THL 3WI series. THL 3WISM series DIP 3W DC/DC converters are fully regulated. It has an output of. These DIP 3 W DC/DC converters have an ultra wide 4:1 input voltage and an internal filter that meets EN55022 Class A (no external components). Typical applications for these DC/DC converters include data/telecommunications applications, instrumentation, and industrial electronics. Small DIP Package 4:1 Input Voltage Range Fully Adjustable Output 1500 V dc I/O Isolation Short Circuit Protection Remote On/Off Control EMC Protection: EN55022 Level A, FCC Part 15, Level A (No External Components) |
Input Voltage Range (V) |
18-75 DC |
Rated power (W) |
3 |
Insulation Voltage |
1.5 kV DC |
Mounting |
Through Hole Mount |
Highest Temperature |
85℃ |
