Ships within 19 days
View
View
View
View
| Load Regulation | ±1.2% |
| Type of Product | Isolated DC-DC Converter |
| Efficiency (%) | 0.8 |

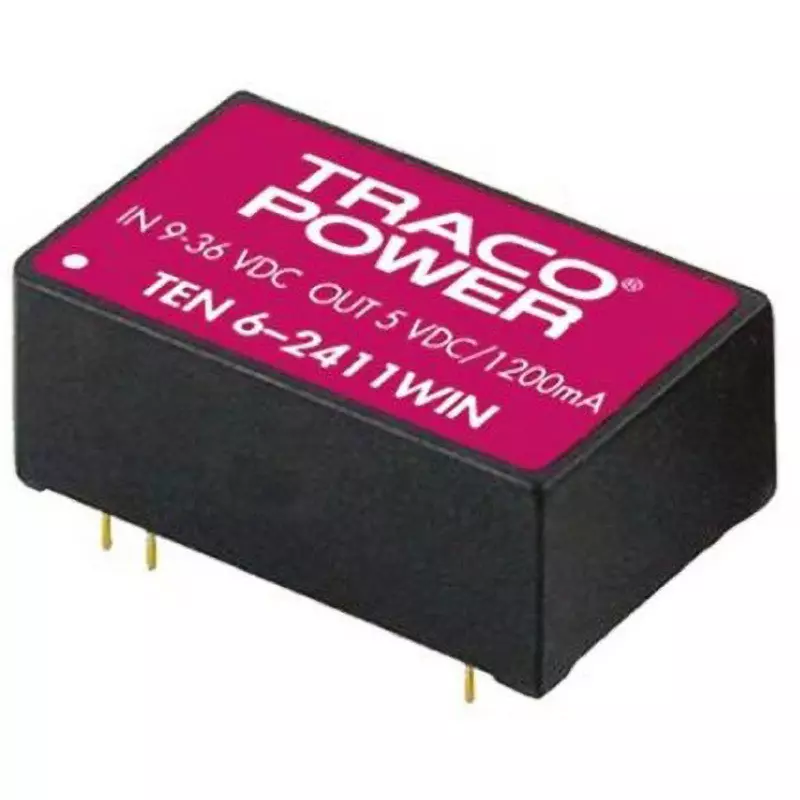

| Model No | TEN 6-2411WIN-HI |
Load Regulation |
±1.2% |
Type of Product |
Isolated DC-DC Converter |
Efficiency (%) |
0.8 |
Model No |
TEN 6-2411WIN-HI |
Series |
TEN 6WIN HI |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TRACO POWER |
No. Of Output |
1 |
Nominal Voltage |
24 V DC |
Output Voltage (V) |
5 DC |
Output Current (A) |
1.2 |
Import Country |
Direct Import from Japan |
Monotaro ID |
48783745 |
RoHS Directive |
Correspondence |
Packaging Type |
DIP 24 |
Specifications |
UL / cUL 60950-1, IEC / EN 60950-1. MTBF: MIL-HDBK-217F Derating: 3.3; 5 VDC model-2.5% / K above +60 °C, 3.3% above other models +70 °C The load adjustment for the / K dual output model is 3.0% with 50% / 100% unbalanced load. . Traco 6W Isolated DIP24 DC / DC Converter-TEN 6WIN Series. TEN 6WIN Series 6W Isolated DIP24 DC / DC Converter with 4:1 wide input voltage range, optimized cost / performance ratio and high efficiency. This TEN 6WIN series isolated DC / DC comes with a DIP-24 standard compliant plastic package, so even expensive equipment can be easily replaced. .4:1 input voltage range High power efficiency up to 84% Overload protection No minimum load Internal filter complies with EN55022 Class A 1500 VDC and 3000 VDC (WIN-HI version only) I/O isolation Industry standard pinout |
Input Voltage Range (V) |
9-36 DC |
Rated power (W) |
6 |
Insulation Voltage |
3000 V DC |
Mounting |
Through Hole Mount |
Highest Temperature |
85℃ |
