Ships within 19 days
View
View
View
View
| Model No | GC30-101-C9N380 ±100Pa |

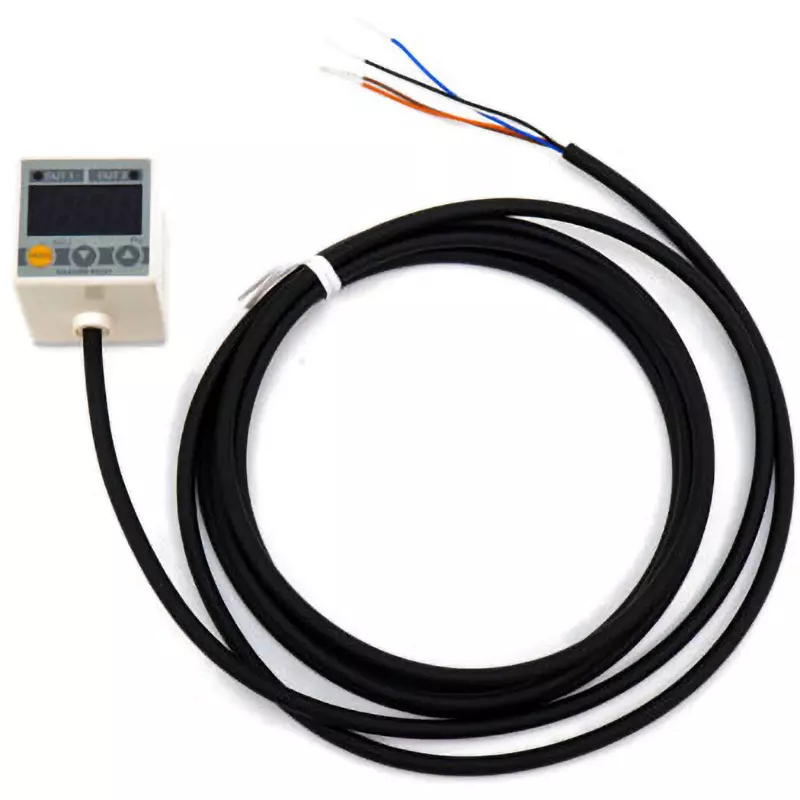

| Type of Product | Differential Pressure Gauge |
| Accuracy | Differential pressure display accuracy: ± (1.0% FS + 1digit) at 23 ℃ (1kPa or more), ± (1.5% FS + 1digit) at 23 ℃ (200 to 500Pa), ± (2.0% FS + 1digit) at 23 ℃ ( (100Pa or less) |
| Power Supply | 12 to 24 V DC ±10% |
Model No |
GC30-101-C9N380 ±100Pa |
Type of Product |
Differential Pressure Gauge |
Accuracy |
Differential pressure display accuracy: ± (1.0% FS + 1digit) at 23 ℃ (1kPa or more), ± (1.5% FS + 1digit) at 23 ℃ (200 to 500Pa), ± (2.0% FS + 1digit) at 23 ℃ ( (100Pa or less) |
Power Supply |
12 to 24 V DC ±10% |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nagano Keiki Co., Ltd. |
Monotaro ID |
8432856 |
Import Country |
Direct Import from Japan |
Pressure Range |
-100 to 100 pA |
Type of Sign |
Wall mounting |
Measurable Fluid |
gas |
Comparative Output |
NPN open collector x 2 outputs/output capacity 30 V DC 80 mA DC max. Response speed: 5 ms or less Dead band: Hysteresis mode variable, Window comparator mode: 1% FS fixed Operation indicator: Red LED (lights up when ON) |
Connector Thread |
M5 female thread |
Function |
Scaling / display value, analog output, loop check / comparator output, analog output, filter / none, 25 ms, 250 ms, 2.5 s, 5 s, 10 s (time constant), error display / overpressure, comparator overcurrent, zero adjustment Pressure out of range, hold / peak value, bottom value display, other / zero adjustment, key lock |
Maximum Acceptable Pressure (hPa) |
50 kPa (kgf/cm² |
Display Update Cycle |
200ms |
Case Structure |
Indoor specification (IP40 IEC standard) |
Display Type |
3 1/2 digit LED digital display (character height 10 mm) |
