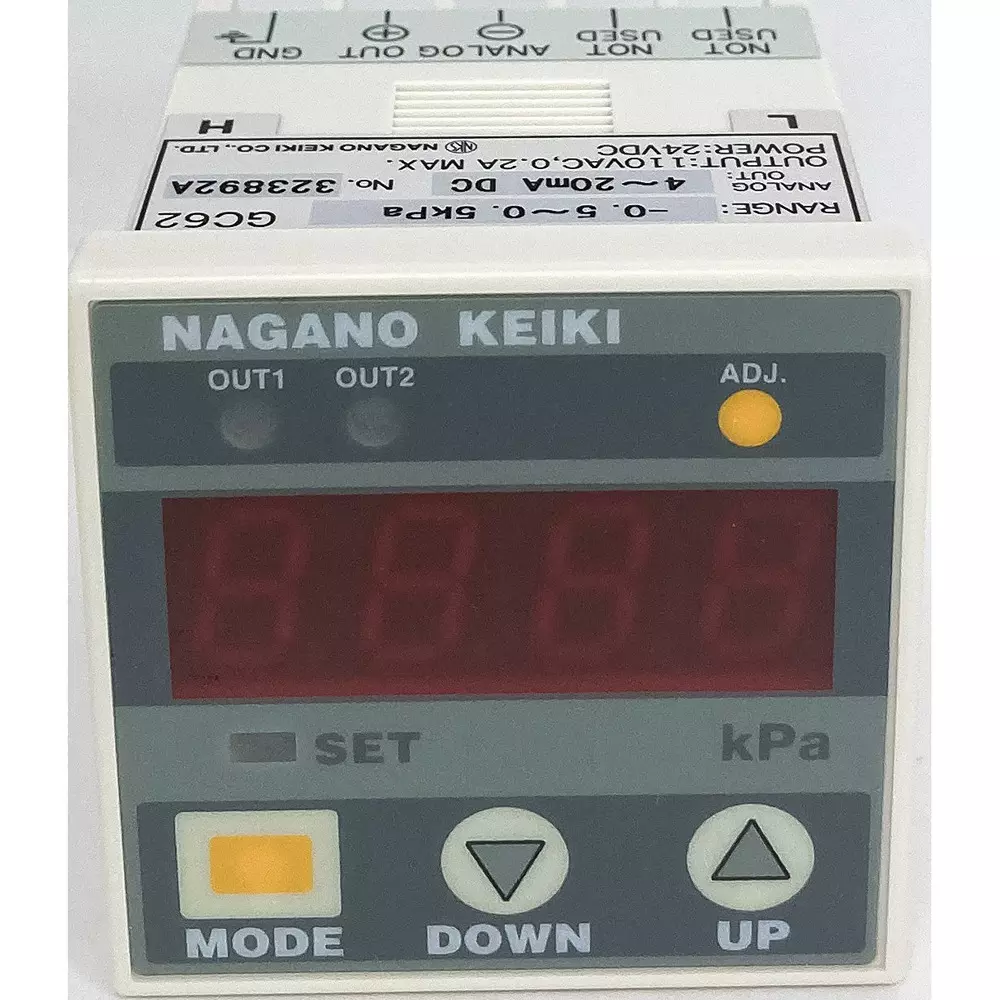

| Model No | GC62-361-10P21 0-50Pa |
| Type of Product | Differential Pressure Gauge |
| Accuracy | Differential pressure display accuracy: ±(1.5%FS+1digit) at 23℃ |
| Connection | Rc1 / 8 conversion |
Model No |
GC62-361-10P21 0-50Pa |
Type of Product |
Differential Pressure Gauge |
Accuracy |
Differential pressure display accuracy: ±(1.5%FS+1digit) at 23℃ |
Connection |
Rc1 / 8 conversion |
Power Supply |
15 to 24VDC±10% |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Nagano Keiki Co., Ltd. |
Monotaro ID |
34062596 |
Mass (g) |
About 95 |
Included Components |
Panel adapter, hexagon socket plug |
Operation Environment |
Places where there is no flammable gas or liquid that may cause ignition or explosion under normal conditions |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-10 to 50 ℃(no freezing or condensation) |
Material |
Gas contact parts materials: Silicon, silicone, glass, ABS |
Pressure Range |
0 to 50 Pa |
Type of Sign |
Panel mount |
Withstand Pressure (kPa) |
50kPa (100kPa for 10kPa and above) |
Measurable Fluid |
Dry air, nitrogen gas (does not contain moisture or dust) |
Comparative Output |
Relay contact x 2 outputs (110V AC, 0.2A resistive load) / Response speed: 5ms or less / Dead band: Variable in hysteresis mode, fixed at 1%FS in window comparator mode / Delay: 0 to 2.00s (both ON and OFF) / Operation indicator: Red LED (OUT1, 2) lights up when ON |
Function |
Scaling: Display value, analog output / Loop check: Comparator output, analog output / Filter: None, 25ms, 250ms, 2.5s, 5s, 10s (time constant) / Error display: Overpressure, out-of-range pressure during zero adjustment / Hold: Peak value, bottom value display / Other: One-touch zero adjustment, key lock |
Display Update Cycle |
200ms |
Case Structure |
Indoor specification (IP40 IEC standard) |
Display Type |
4-digit LED digital display |
Maximum pressure (kPa) |
50 |
Operating Humidity Range |
35 to 85 % RH (no condensation) |
Current Consumption (mA) |
75 or less |
Case Material |
PC/ABS(UL94V-0) |
Character Height (mm) |
10 |
Analog Output Range |
4 to 20mA_DC (load resistance 400Ω or less), resolution: 0.04mA DC or less |
Protection Circuit |
Reverse power connection |
