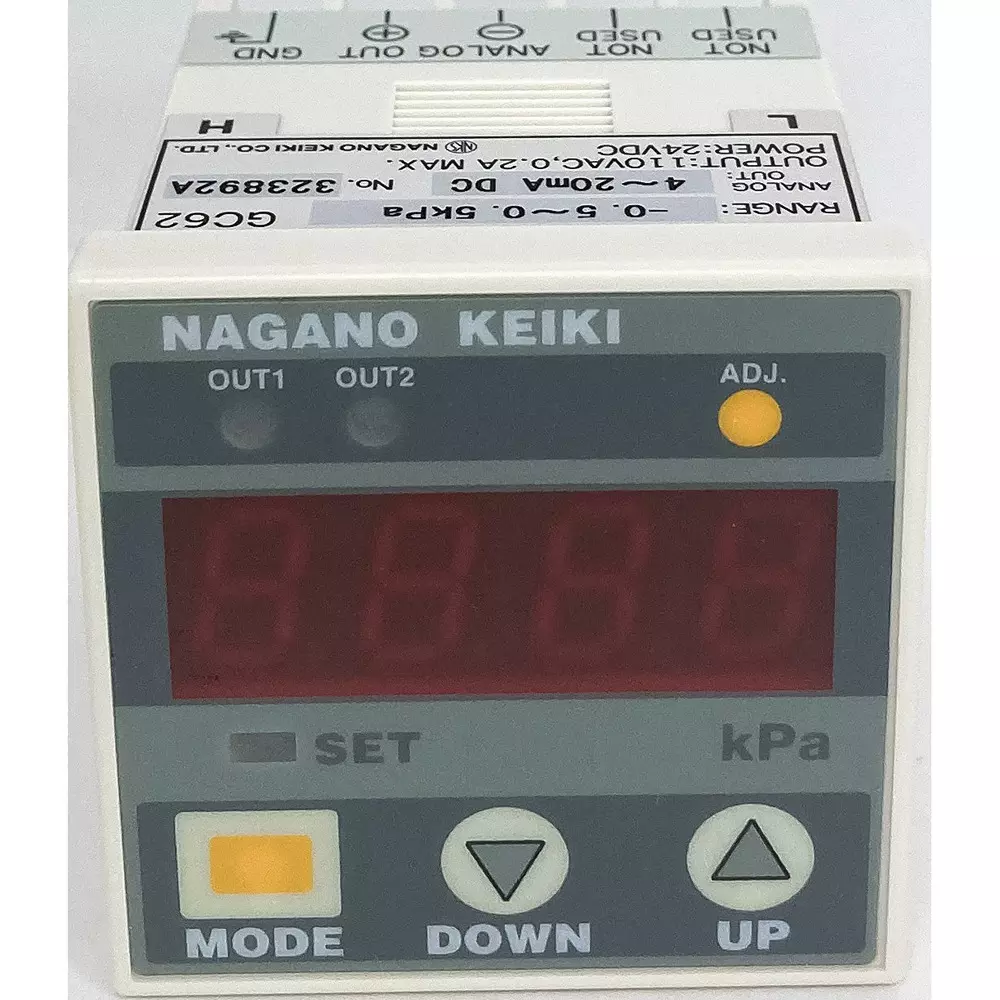

Nagano Keiki Differential Pressure Gauge 0 to 20 KPa Range, GC62-361-20N20 0-20KPa

Name: Nagano Keiki Differential Pressure Gauge 0 to 20 KPa Range, GC62-361-20N20 0-20KPa
Brand: Nagano Keiki
SKU: TES.DIF.945984911
Price: 55459 INR
Availability: InStock

Visit the Nagano Keiki Store

EMI starts at ₹4927/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Model No	GC62-361-20N20 0-20KPa
Type of Product	Differential Pressure Gauge
Accuracy	Differential pressure display accuracy: ±(1.0%FS+1digit) at 23℃
Connection	Rc1 / 8 conversion

More Nagano Keiki Differential Pressure Gauges products More Differential Pressure Gauges products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Model No	GC62-361-20N20 0-20KPa
Type of Product	Differential Pressure Gauge
Accuracy	Differential pressure display accuracy: ±(1.0%FS+1digit) at 23℃
Connection	Rc1 / 8 conversion
Power Supply	12 to 24VDC±10%
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	Nagano Keiki Co., Ltd.
Monotaro ID	34059613
Mass (g)	About 95
Included Components	Panel adapter, hexagon socket plug
Operation Environment	Places where there is no flammable gas or liquid that may cause ignition or explosion under normal conditions
Import Country	Direct Import from Japan
Operating Temperature Range	-10 to 50 ℃(no freezing or condensation)
Material	Gas contact parts materials: Silicon, silicone, glass, ABS
Pressure Range	0 to 20 KPa
Type of Sign	Panel mount
Withstand Pressure (kPa)	50kPa (100kPa for 10kPa and above)
Measurable Fluid	Dry air, nitrogen gas (does not contain moisture or dust)
Comparative Output	Relay contact x 2 outputs (110V AC, 0.2A resistive load) / Response speed: 5ms or less / Dead band: Variable in hysteresis mode, fixed at 1%FS in window comparator mode / Delay: 0 to 2.00s (both ON and OFF) / Operation indicator: Red LED (OUT1, 2) lights up when ON
Function	Scaling: Display value / Loop check: Comparator output / Filter: None, 25ms, 250ms, 2.5s, 5s, 10s (time constant) / Error display: Overpressure, out-of-range pressure during zero adjustment / Hold: Peak value, bottom value display / Other: One-touch zero adjustment, key lock
Display Update Cycle	200ms
Case Structure	Indoor specification (IP40 IEC standard)
Display Type	4-digit LED digital display
Maximum pressure (kPa)	100
Operating Humidity Range	35 to 85 % RH (no condensation)
Current Consumption (mA)	55 or less
Case Material	PC/ABS(UL94V-0)
Character Height (mm)	10
Analog Output Range	Pear
Protection Circuit	Reverse power connection
