| Model No | FR51AHV-200D |
| Type of Product | Manostar Gauge |
| Accuracy | ± 2.5% FS (at 23 ° C) |
| Country of Origin | Japan |
Model No |
FR51AHV-200D |
Type of Product |
Manostar Gauge |
Accuracy |
± 2.5% FS (at 23 ° C) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Yamamoto Electric Works Co., Ltd. |
Monotaro ID |
46778742 |
Mass (g) |
About 90 |
Included Components |
Mounting nut set |
Import Country |
Direct Import from Japan |
Specifications |
(Pressure receiving element) Diaphragm |
Material |
(Pressure receiving element) Silicone rubber, (Exterior) Acrylic resin and polycarbonate |
Pressure Range |
0 to 200 pA |
Withstand Pressure (kPa) |
(Pressure receiving element) 20, (Instrument body) 50 |
RoHS Directive |
Correspondence |
Type |
Horizontal scale type |
Operation Ambient Temperature (°C) |
-10 to 50 (but do not freeze) |
Measurement Method |
(Pressure) Differential pressure type |
Operating Ambient Humidity (% RH) |
90 or less (however, no condensation) |
Measurable Gas |
Air and non-corrosive gas (no liquid) |

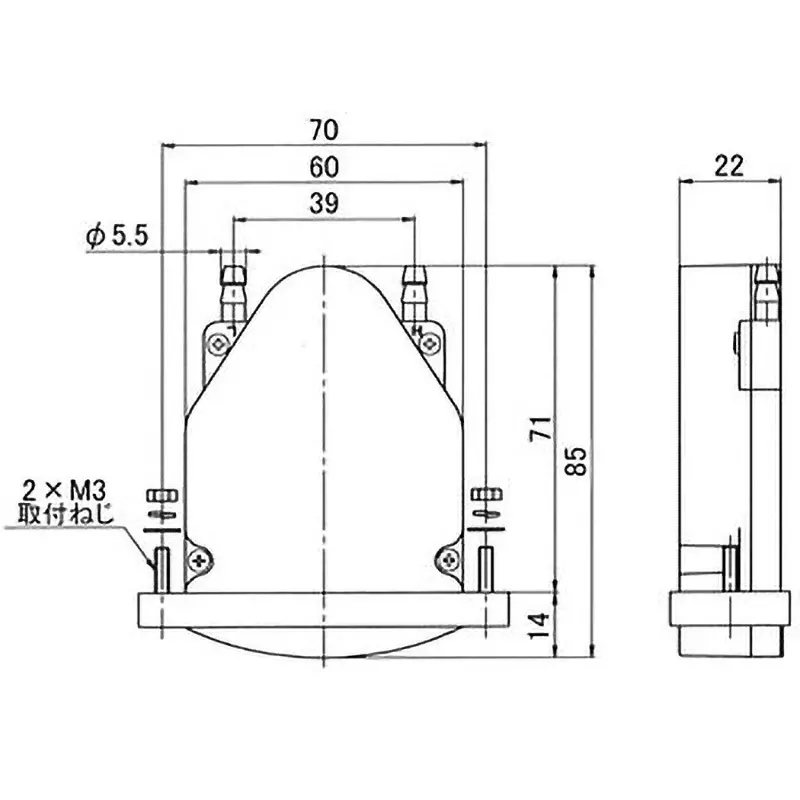

Bolster |
Molded integrally with the body, (polarity) High pressure side “H”, low pressure side “L” mark displayed on the base |
Compatible Piping |
Vinyl tube or rubber tube (inner diameter 4) |

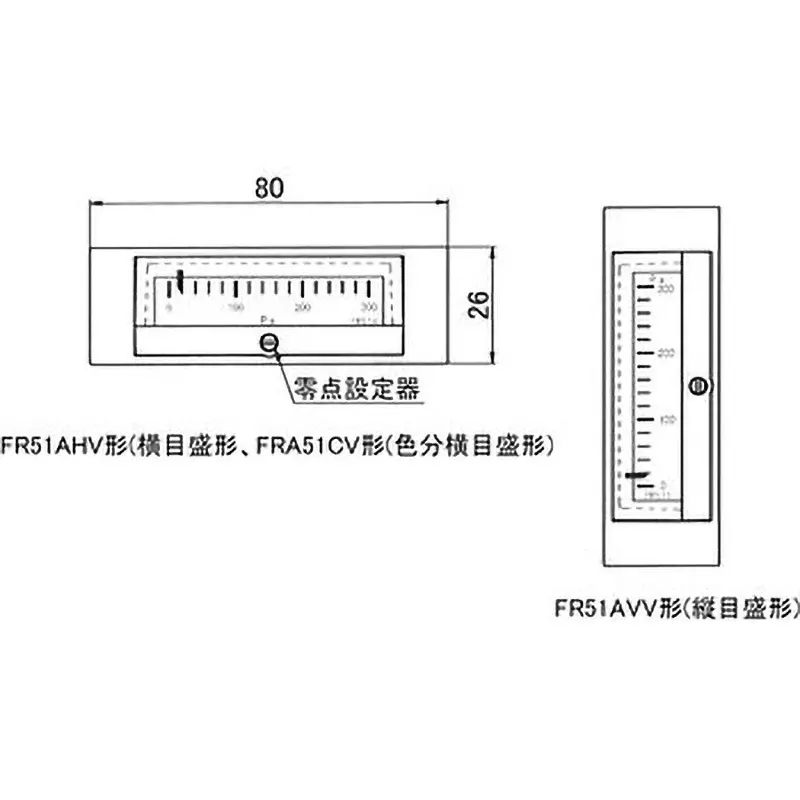

Scale |
Edgewise type (Scale length: about 45 mm) |
Pressure Unit |
Pa |
Shock Resistance (m/s²) |
100 (6 times each in 3 axis directions) |
Ambient Humidity to Use |
90% RH or less (no condensation) |
Mounting Orientation |
Horizontal to vertical to downward horizontal |
Vibration Resistance |
5 to 10 Hz, total amplitude 10 mm, 10 to 50 Hz, acceleration, total amplitude 39 m/s² (² hours each for 3 axes) |
