| Type of Product | Digital Multimeter |
| Model No | 9258-KC550 |
| Country of Origin | India |
| Display Type | Digital dual-window histogram tendency chart bar chart |
Type of Product |
Digital Multimeter |
Model No |
9258-KC550 |
Country of Origin |
India |
Display Type |
Digital dual-window histogram tendency chart bar chart |
Frequency |
3 Hz~1 MHz |
Resistance |
20 Ω/200 Ω/2 ΚΩ/20 ΚΩ/200 ΚΩ/2 ΜΩ/10 ΜΩ/100 ΜΩ/1 GΩ |
Weight |
3.4 Kg |
Interface |
Communication Interface USB/LAN/RS232 Storage Interface U Disk |
Duty Cycle |
100~120 V, 45~440 Hz, 200~240 V, 45~66 Hz |
DC Current |
2 μΑ/20 μΑ/200 μA/2 mA/20 mA/200 mA/2 A/10 A |
Resolution |
6.5 Digits |
Voltage (AC) |
200 mV/2 V/20 V/200 V/750 V |
Capacitance |
2 nF/20 nF/200 nF/2 µF/20 μF/200 µF/2 mF/20 mF/100 mF |
Frequency Response |
300 kHz |
AC Current (A) |
200 μA/2 mA/20 mA/200 mA/2 A/10 A |
Temperature |
Supports thermocouple and RTD testing |
Continuity Check |
Adjustable from 0 Ω~2000 Ω default is 30 Ω |
Diode Test |
0-4 V |

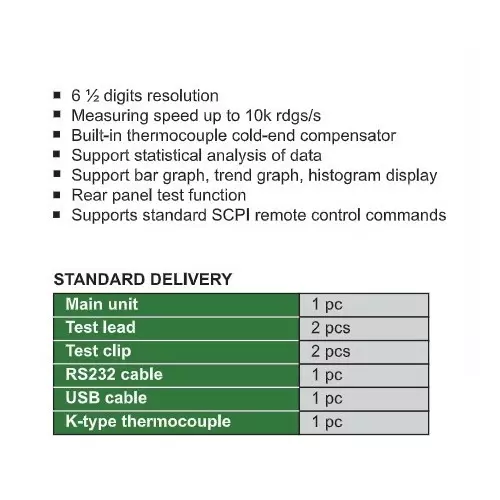

Package Contains |
1 x Main Unit, 2 x Test Lead, 2 x Test Clip, 1 x RS232 Cable, 1 x USB Cable, 1 x K Type Thermocouple |
Dimension |
378x256x113 mm |
Voltage (Dc) |
200 mV/2 V/20 V/200 V/1000 V |
Name of Manufacturer/Packer/Importer |
Insize |
Storage Environment |
Temperature -20°C~70°C, Humidity <95% RH (non-condensation) |
Trigger |
Automatic Trigger, Single Trigger, External Trigger |
