| Rotational Speed | Maximum display: 1000s¯¹ (when using 1 pulse / rotary encoder) 1000 min¯¹ (when using 60 pulse / rotary encoder) |
| Type | Digital tachometer |
| Display Type | LCD (numerical display with liquid crystal) (displayed with zero suppression) |
| Power Supply | External power / unnecessary (built-in battery) |
Rotational Speed |
Maximum display: 1000s¯¹ (when using 1 pulse / rotary encoder) 1000 min¯¹ (when using 60 pulse / rotary encoder) |
Type |
Digital tachometer |
Display Type |
LCD (numerical display with liquid crystal) (displayed with zero suppression) |
Power Supply |
External power / unnecessary (built-in battery) |
Storage Temperature |
-25 to +65 ℃ (with no condensation or icing) |
Type of Product |

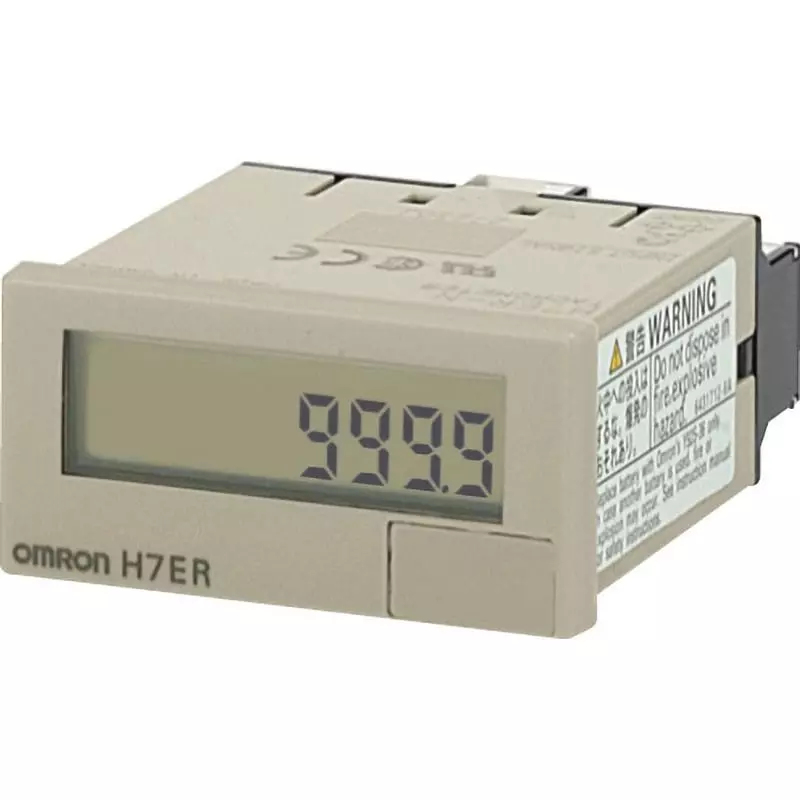

Small Digital Tachometer |
Input |
Count input, ON when the maximum impedance at short circuit is 10 kΩ or less, residual voltage 0.5 V or less at short circuit (actual force 1.0 V), OFF at minimum impedance 750 kΩ or more when open |
Model No |
H7ER-N-B |
Included Components |
Waterproof packing, adapter for embedded mounting, unit seal |
Protection Class |
IEC standard IP66, US NEMA standard type 4 (indoor) However, panel surface only |
Country of Origin |
INDONESIA |
Monotaro ID |
39074901 |
Import Country |
Direct Import from Japan |
Count Input |
No voltage input |
Number of Digit |
4 digits |
Maximum Counting Speed |
1 kHz: Minimum signal width 0.5ms |
Operation Type |
Addition |
Exterior Color |
Black |
Type of Sign |
Embedded mounting |
Withstand Voltage |
AC 1000V 50 / 60Hz 1min, between the conductive terminal and the exposed non-charged metal part |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Mass (g) |
About 60 |
Insulation Resistance (MOhm) |
100 or more (at DC500V mega) , between the conductive terminal and the exposed non-charged metal part |
Character Height (mm) |
8.6 |
Operation Ambient Temperature (°C) |
-10 to +55 (with no condensation or icing) |
