| Rotational Speed | Maximum display (12 can be switched with a switch): 11000.0s¯¹ (when using 10 pulse / rotary encoder), 1000.0min¯¹ (when using 600 pulse / rotary encoder) 210,000 min¯¹ (when using 60 pulse / rotary encoder) Time) |
| Type | Digital tachometer |
| Display Type | LCD (numerical display by liquid crystal display) With green LED backlight (displayed by zero suppression) |
| Power Supply | External power / unnecessary (built-in battery) |
Rotational Speed |
Maximum display (12 can be switched with a switch): 11000.0s¯¹ (when using 10 pulse / rotary encoder), 1000.0min¯¹ (when using 600 pulse / rotary encoder) 210,000 min¯¹ (when using 60 pulse / rotary encoder) Time) |
Type |
Digital tachometer |
Display Type |
LCD (numerical display by liquid crystal display) With green LED backlight (displayed by zero suppression) |
Power Supply |
External power / unnecessary (built-in battery) |
Storage Temperature |
-25 to +65 ℃ (with no condensation or icing) |
Type of Product |

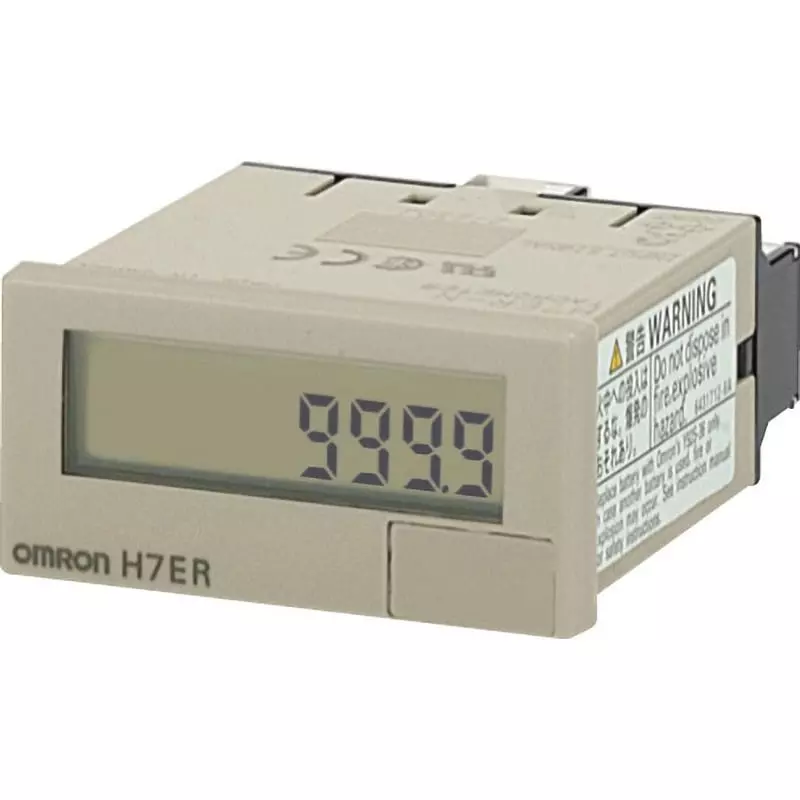

Small Digital Tachometer |
Input |
Counting input, "H" level: DC4.5 to 30V, "L" level: DC0 to 2V (input impedance about 4.7kΩ) |
Model No |
H7ER-NV1-H |
Included Components |
Waterproof packing, adapter for embedded mounting, unit seal |
Protection Class |
IEC standard IP66, US NEMA standard type 4 (indoor) However, panel surface only |
Country of Origin |
INDONESIA |
Monotaro ID |
39074917 |
Import Country |
Direct Import from Japan |
Count Input |
Voltage input (4.5 to 30 V DC) |
Number of Digit |
5-digit |
Maximum Counting Speed |
1 kHz: Minimum signal width 0.5ms / 10 kHz: Minimum signal width 0.05ms |
Operation Type |
Addition |
Exterior Color |
Light gray |
Type of Sign |
Embedded mounting |
Withstand Voltage |
AC 1000V 50 / 60Hz 1min, between the conductive part terminal and the exposed non-charged metal part, between the backlight power supply terminal and the counting input terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Mass (g) |
About 65 |
Insulation Resistance (MOhm) |
100 or more (at DC500V mega), between the conductive part terminal and the exposed non-charged metal part, between the backlight power supply terminal and the counting input terminal |
Character Height (mm) |
8.6 |
Operation Ambient Temperature (°C) |
-10 to +55 (with no condensation or icing) |
