| Power Consumption | Approx.3.2 VA (at 264 VAC) |

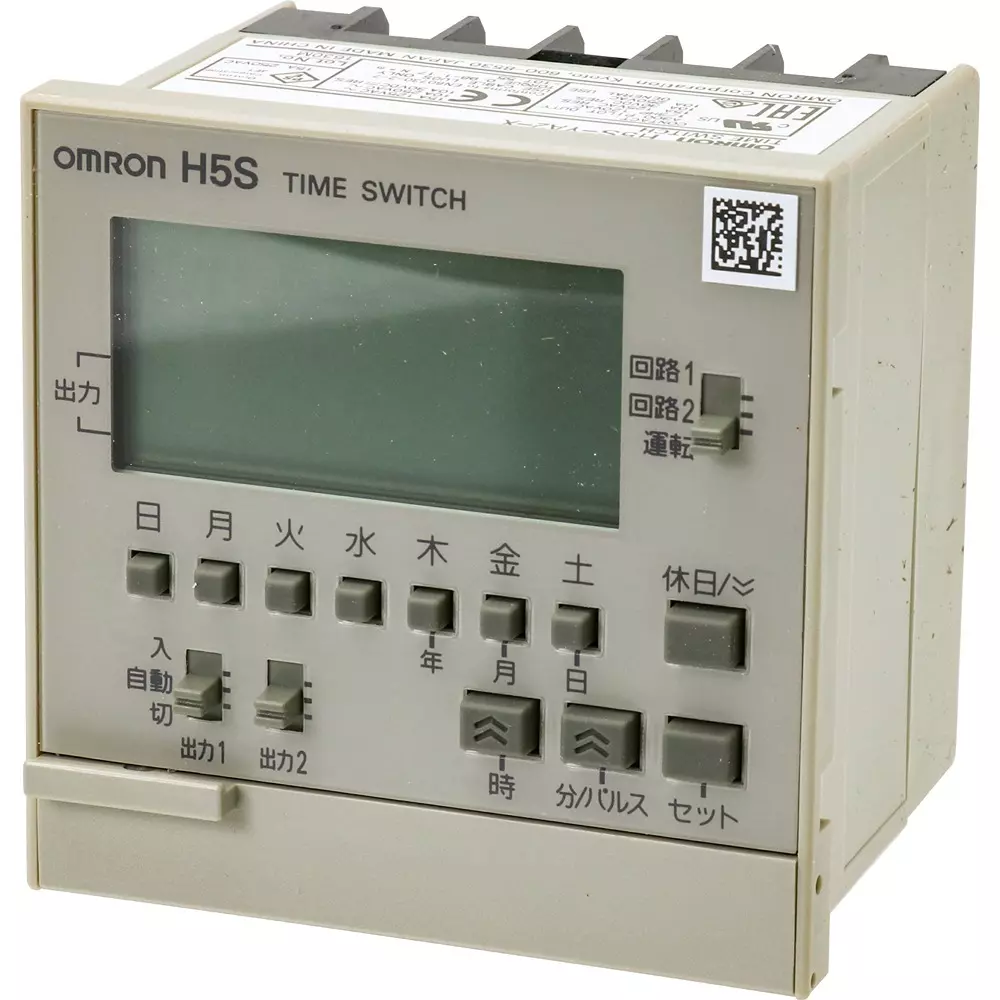

| Type of Product | Digital Time Switch |
| Model No | H5S-YA2-X |
| Mass (g) | About 200 |
Power Consumption |
Approx.3.2 VA (at 264 VAC) |
Type of Product |
Digital Time Switch |
Model No |
H5S-YA2-X |
Mass (g) |
About 200 |
Influence of Voltage |
± 0.01% ± 0.05s or less ± 0.01% is the value for the set time interval |
Terminal Fitting Type |
Embedded mounting |
Withstand Voltage |
AC2950V 50 / 60Hz 1min (between conductive part terminal and exposed non-charged metal part) <br> AC2000V 50 / 60Hz 1min (between operation power circuit and control output, between control outputs) <br> 1000 VAC 50/60 Hz for 1 min (between non-continuous contacts) |
Service Life |
Mechanical: 100,000 times or more Electrical:<br> Over 50,000 times (resistive load AC250V 15A)<br> Over 50,000 times (resistive load DC30V 10A)<br> 50,000 times or more (inductive load AC250V 10A cosΦ=0.7)<br> Over 50,000 times (motor load AC250V 1HP)<br> Over 50,000 times (lamp load AC100V 100W)<br> Over 10,000 times (lamp load AC100V 300W) |
Ambient Humidity to Use |
25 to 85% |
Shock Resistance |
300 m/s² 3 axes 6 directions 3 times each |
Control Output |
Number of circuits: 2 independent circuits (2a)<br> Circuit: Power supply circuit and separate circuit (no Voltage)<br> Capacity: Resistance not possible AC250 V 15A (cosΦ=1), induction not possible AC250 V 10A (cosΦ=0.7) |
Case Color |
Light gray (Munsell 5Y7 / 1) |
Time |
1 cycle: 1 year (built-in calendar up to 2099) |
Monotaro ID |
8589664 |
Setting Value |
Minimum unit: 1min unit |
Display |
Day of the week, hour (24-hour display ⇔ AM/PM 12-hour display switch), minute, second<br> (0:00~23:59, AM0:00~11:59/PM0:00~11:59)<br> Digital display by LCD (character height 15mm)<br> Digital display of operation and scheduled operation time. Time chart display of operation and scheduled operation time. |
Accuracy |
(Watch) Temperature compensation |
Operation Type |
Digital quartz system |
Power Supply Voltage |
AC100-240 (50/60Hz shared) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 55Hz, single amplitude 0.375mm, 3 directions, 2ch each |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
No. Of Output |
2ch |
Manufacturer Part Number |
H5S-YA2-X |
Insulation Resistance (MOhm) |
100 or more Between conductive part terminals and exposed non-charged metal parts, between operation power supply circuit and control output, between control outputs, between non-continuous contacts |
Operation Ambient Temperature (°C) |
-10 to +55 (with no icing or condensation) |
