| Power Consumption | Approx.3.5 VA (at 264 V AC) |
| Type of Product | Digital Time Switch |

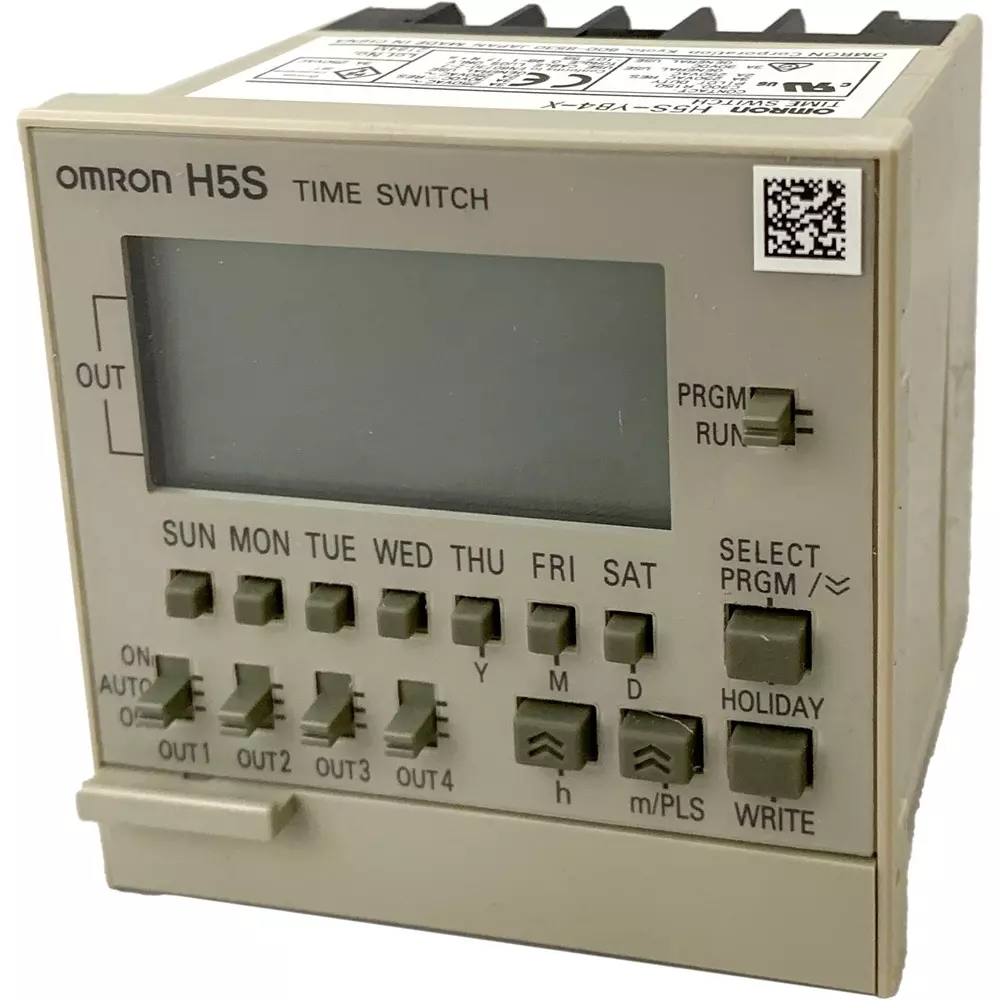

| Model No | H5S-YB4-X |
| Mass (g) | About 200 |
Power Consumption |
Approx.3.5 VA (at 264 V AC) |
Type of Product |
Digital Time Switch |
Model No |
H5S-YB4-X |
Mass (g) |
About 200 |
Influence of Voltage |
± 0.01% ± 0.05s or less ± 0.01% is the value for the set time interval |
Terminal Fitting Type |
Embedded mounting |
Withstand Voltage |
AC2950V 50 / 60Hz 1min (between conductive part terminal and exposed non-charged metal part) , AC2000V 50 / 60Hz 1min (between operation power circuit and control output, between control outputs) , 1000 VAC 50/60 Hz for 1 min (between non-continuous contacts) |
Service Life |
Mechanical: 100,000 times or more Electrical:, Over 50,000 times (resistive load AC250V 15A), Over 50,000 times (resistive load DC30V 10A), 50,000 times or more (inductive load AC250V 10A cosΦ=0.7), Over 50,000 times (motor load AC250V 1HP), Over 50,000 times (lamp load AC100V 100W), Over 10,000 times (lamp load AC100V 300W) |
Ambient Humidity to Use |
25 to 85% |
Shock Resistance |
300 m/s² 3 axes 6 directions 3 times each |
Control Output |
Number of circuits: 4 independent circuits (4a), Circuit: Power supply circuit and separate circuit (no voltage), Capacity: Resistive load AC250V 3A (cosΦ=1), non-inductive AC250V 2A (cosΦ=0.4) |
Case Color |
Light gray (Munsell 5Y7 / 1) |
Time |
1 cycle: 1 year (built-in calendar up to 2099) |
Monotaro ID |
46628574 |
Display |
Day of the week, hour (24-hour display ⇔ AM/PM 12-hour display switch), minute, second, (0:00~23:59, AM0:00~11:59/PM0:00~11:59), Digital display by LCD (character height 15mm), Digital display of operation and scheduled operation time. Time chart display of operation and scheduled operation time. |
Accuracy |
(Watch) Temperature compensation |
Operation Type |
Digital quartz system |
Power Supply Voltage |
AC 100-240 V (50 / 60 Hz shared) |
Country of Origin |
CHINA |
Import Country |
Direct Import from Japan |
Vibration Resistance (Destruction) |
10 to 55 Hz, single amplitude 0.375 mm, 3 directions, 2ch each |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
No. Of Output |
4ch |
Insulation Resistance (MOhm) |
100 or more Between conductive part terminals and exposed non-charged metal parts, between operation power supply circuit and control output, between control outputs, between non-continuous contacts |
Operation Ambient Temperature (°C) |
-10 to +55 (with no icing or condensation) |
