| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Magnetic Catch with Waterproof Switch |
| Model No | LE-133-1 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Magnetic Catch with Waterproof Switch |
Model No |
LE-133-1 |
Material |
Body / Polyacetal (Pom), Backing Plate: Stainless Steel Plate (SUS430) |
Color |
Black |
Monotaro ID |
61130457 |

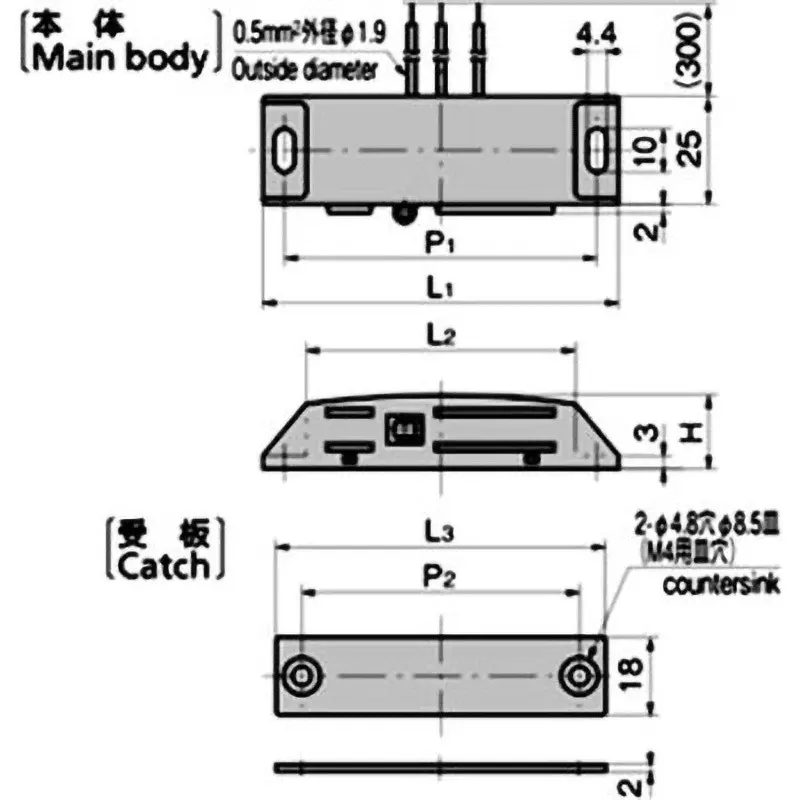

Dimensions L1 (mm) |
Φ82 |
Dimension L3 (mm) |
76 |
TAKIGEN Code |
50266 |
Dimensions l2 (mm) |
62 |
Dimensions H (mm) |
17 |
Dimension P2 (mm) |
64 |
Attracting Force (N) |
29 |
Dimension P1 (mm) |
72 |
Waterproof |
IP67 |
Insulation Resistance |
100 mΩ or more (DC500V) |
Withstand Voltage |
1000 VAC for 1 minute between non-continuous terminals, 1,500 VAC for 1 minute between each terminal and charged metal part, 1,500 VAC for 1 minute between each terminal and ground |
Contact Resistance |
Under 100 mΩ |
Operating Temperature |
-40 to +85°C |
Rating |
250 VAC / 30 VDC 2 A (Resistive Load), 125 VDC 0.4 A (Resistive Load) |
Import Country |
Direct Import from Japan |
