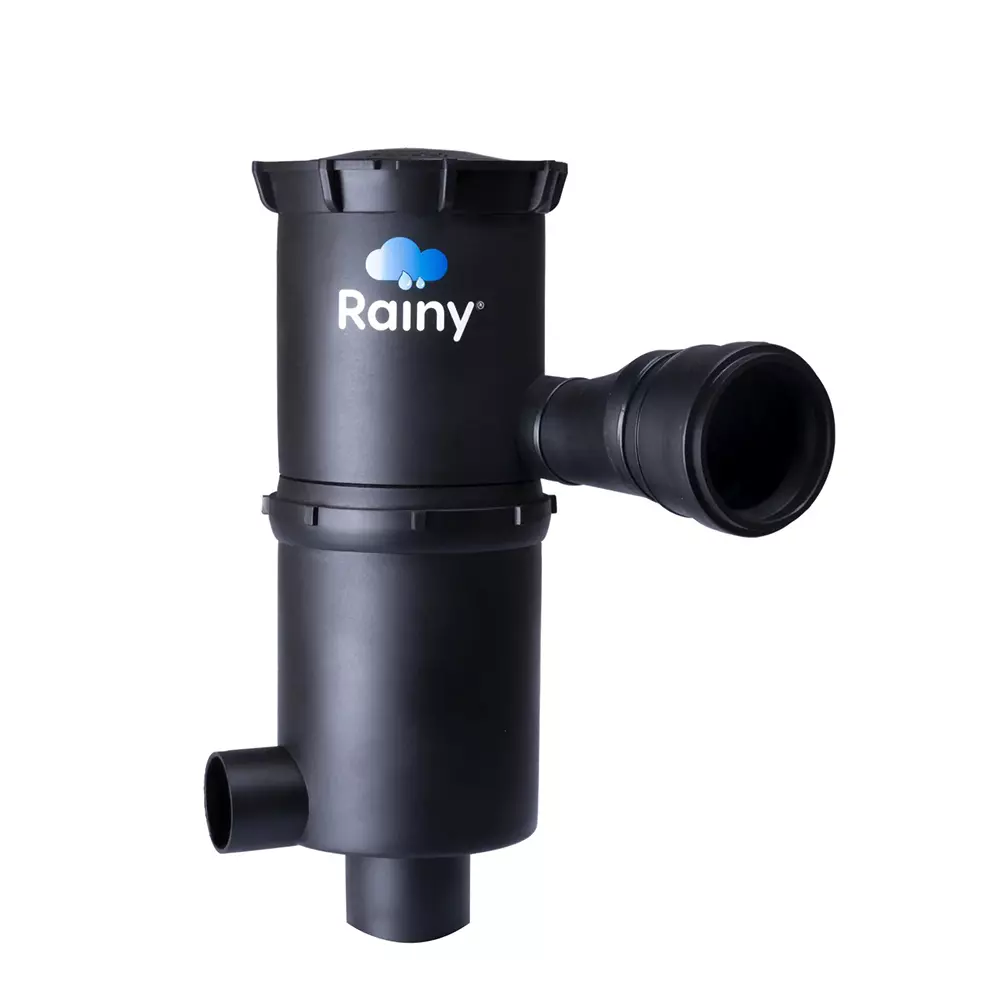

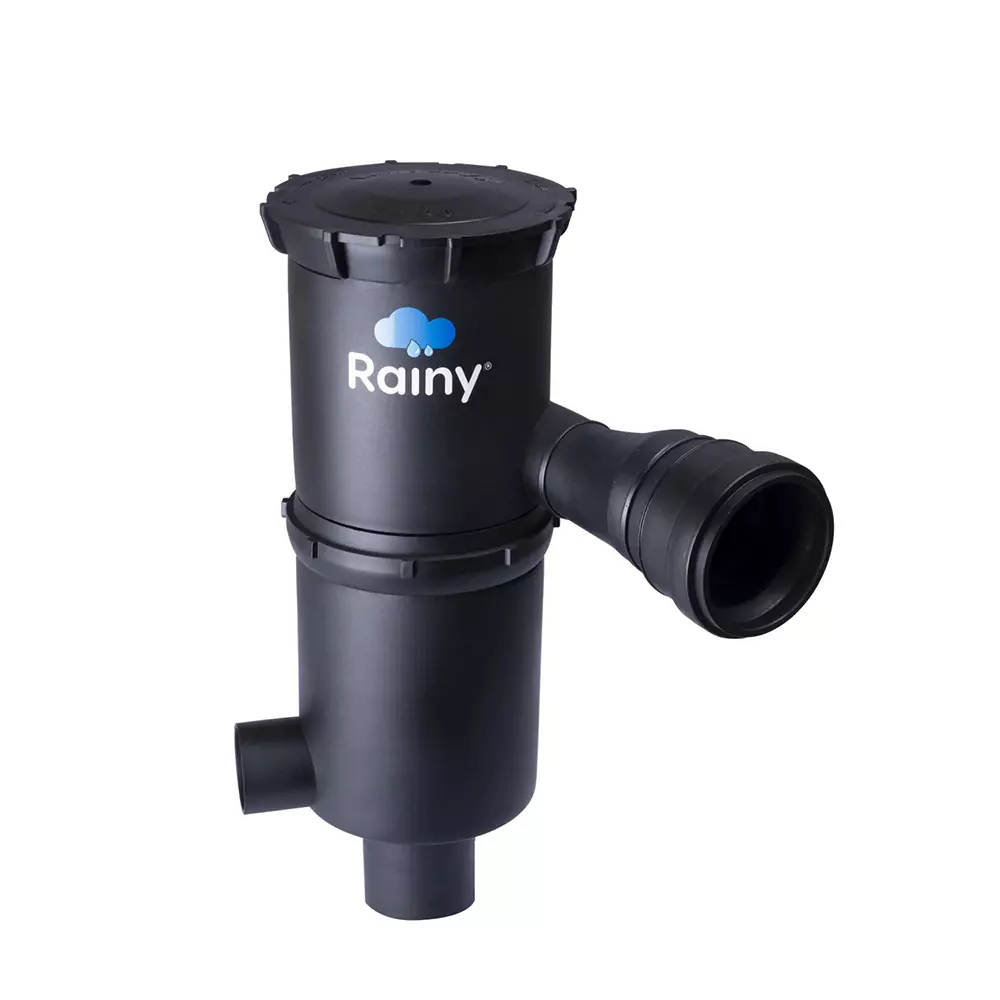

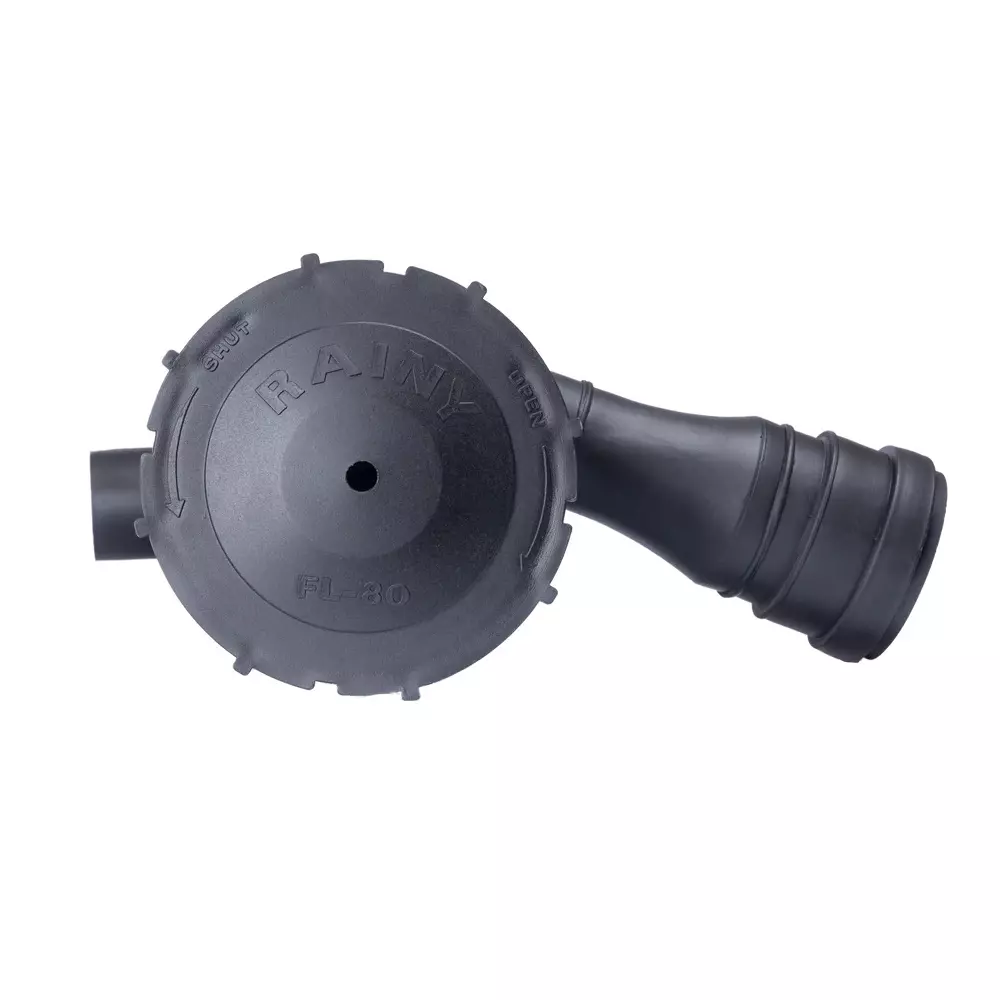

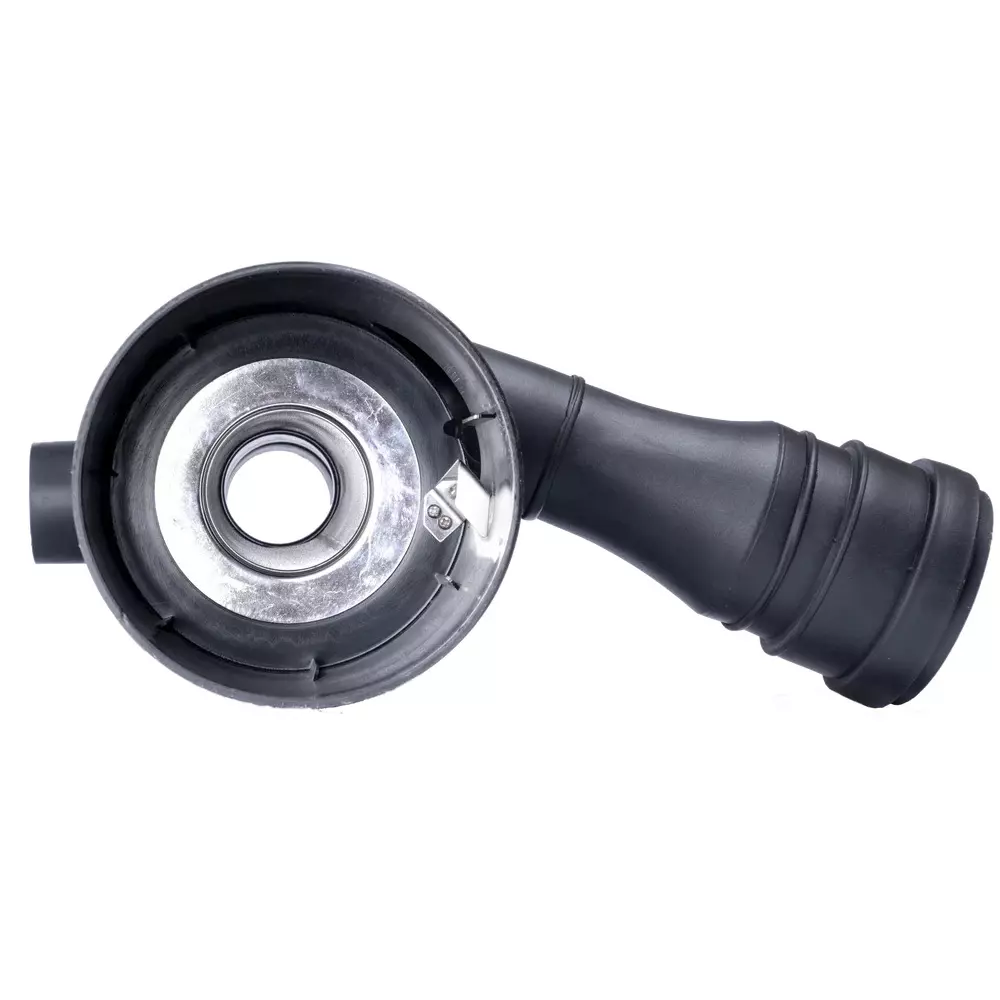

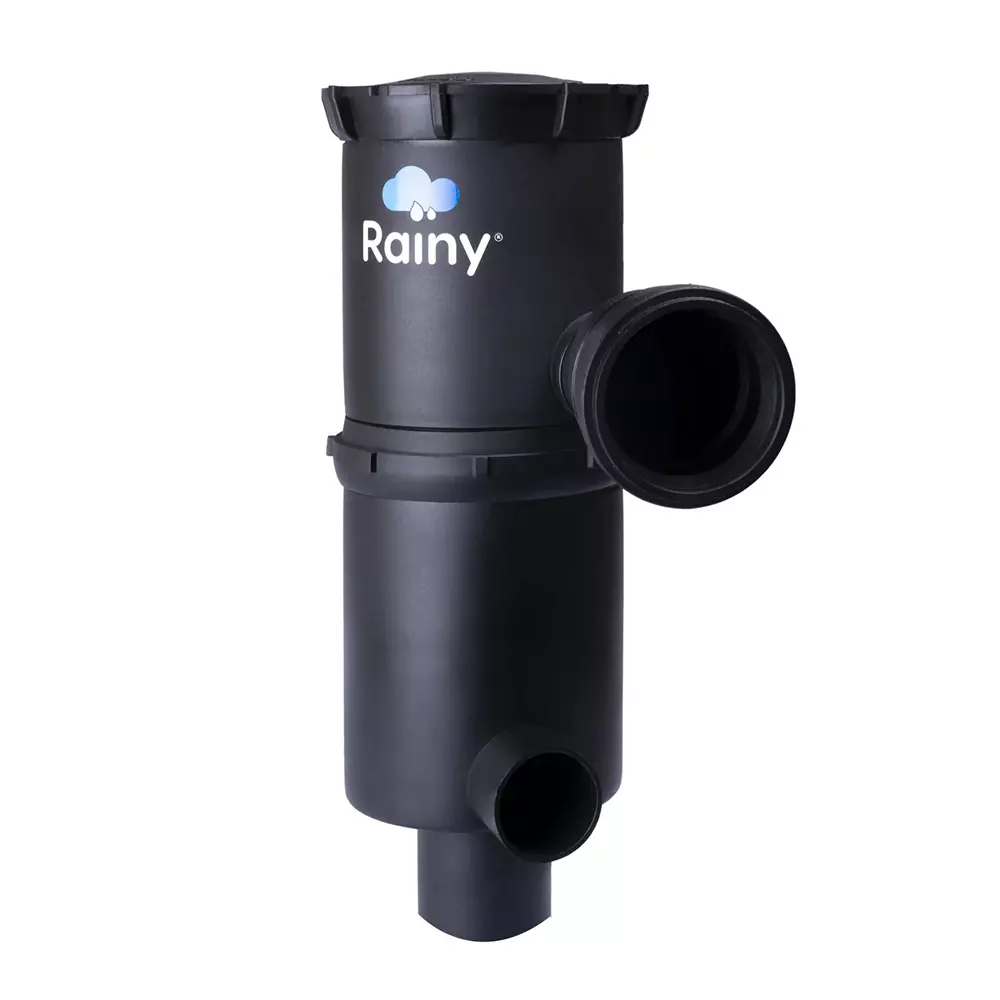

Type of Product | Rainwater Harvesting Filter |
Operating Pressure | 1 foot of Gravity Head (0.060 kg/cm²) |
Model No | FL-80 |
Color | Black |
Type of Product |
Rainwater Harvesting Filter |
Operating Pressure |
1 foot of Gravity Head (0.060 kg/cm²) |
Model No |
FL-80 |
Color |
Black |
Inlet Size |
90 mm |
Country of Origin |
India |
Name of Manufacturer/Packer/Importer |
Agriculture Garden & Landscaping |
Mesh Size |
250 Microns |
Drain Outlet |
90 mm |
Filter Housing |
UV Stabilized - HDPE |
Intensity of Rainfall |
5 mm/Hour to 75 mm/Hour |
Filter Efficiency (%) |
Above 90%* |
Filter Type |
Open ended, Non-clog |
Maximum Discharge Flow Rate |
120 LPM |
Working Principle |
Cohesive Force & Centrifugal Force |
Power Source |
Gravity |
Suitable for Area |
Upto 120 Sq. mtrs |
Filter Element |
SS-304 Multi-Surface Screen - Food Grade |
Clean Water Outlet |
63 mm |
