Showing 40 out of 7130 products
![L&T [ Lauritz Knudsen ] DN2-250SD 4 Pole MCCB Switch Disconnector Without Protection Release CM96815OONOOG](http://static1.industrybuying.com/products/electrical/switchgear-and-accessories/molded-case-circuit-breakers-mccb/ELE.MOL.73002997_1668042883075.webp "L&T [ Lauritz Knudsen ] DN2-250SD 4 Pole MCCB Switch Disconnector Without Protection Release CM96815OONOOG")
Type of Product : MCCB Switch Disconnector Without Protection Release
No. of Pole : 4 Pole
Type of Product : Moulded Case Circuit Breakers
No. of Pole : 2 Pole
Frame : HIM 100
Rated Ultimate Shortcircuit Breaking Ics=100% (kA rms) : 20
Rated Ultimate Short-circuit Breaking Capacity Icu at 250 V (2P)-DC (kA) : 10
Type of Product : Moulded Case Circuit Breakers
No. of Pole : 3 Pole
Frame : HIM 100
Rated Ultimate Shortcircuit Breaking Ics=100% (kA rms) : 20
Rated Ultimate Short-circuit Breaking Capacity Icu at 250 V (2P)-DC (kA) : 10
Type of Product : Adjustable Thermal & Adjustable Magnetic Moulded Case Circuit Breakers
Current Rating : 800 A
Frame : CN
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 35
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 0.75
Type of Product : Moulded Case Circuit Breakers
No. of Pole : 1 Pole
Frame : GH
Type of Product : Fixed Thermal & Fixed Magnetic Moulded Case Circuit Breakers
Breaking Capacity : 5 kA
No. of Pole : 3 Pole
Type of Product : Moulded Case Circuit Breakers
No. of Pole : 1 Pole
Frame : HD1

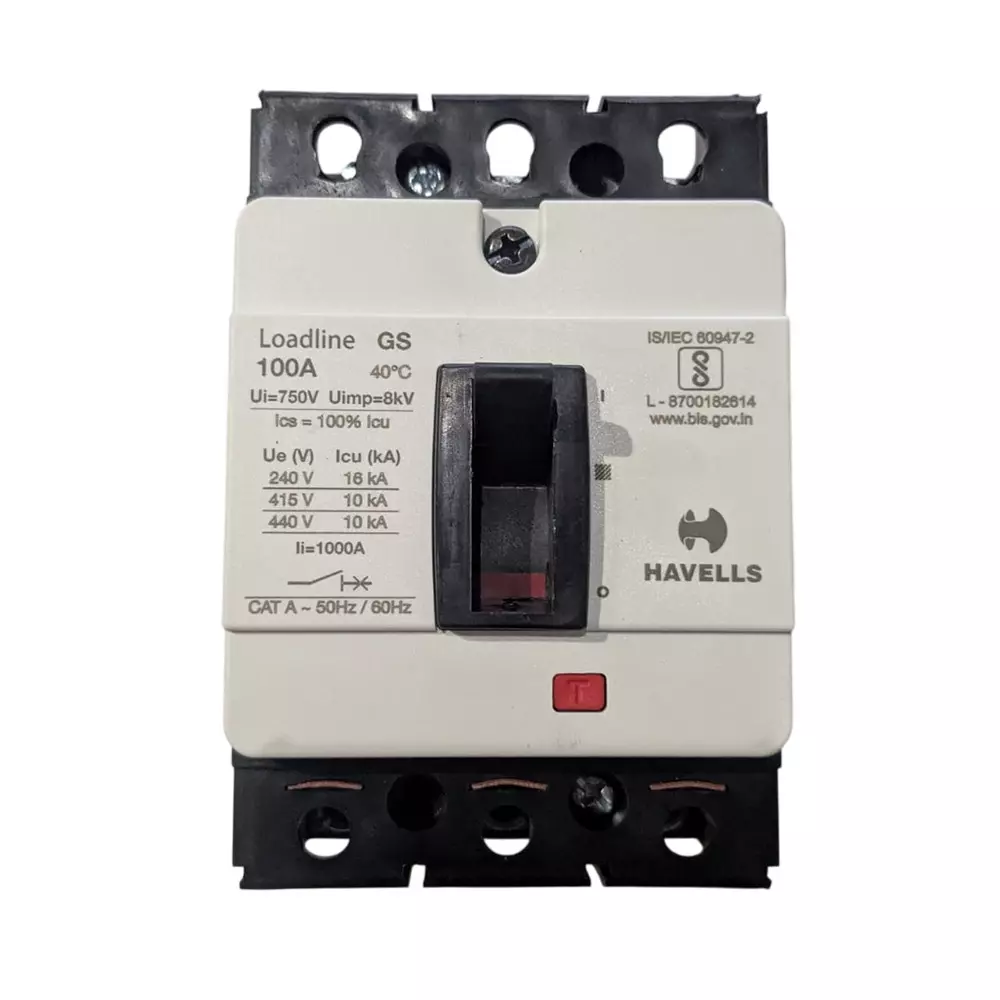

Type of Product : Fixed Thermal & Fixed Magnetic Moulded Case Circuit Breakers
No. of Pole : 3 Pole
Frame : GS
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 10
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 1
Type of Product : Fixed Type Thermal Magnetic MCCB
Pole : 3 Pole
Country of Origin : India
Name of Manufacturer/Packer/Importer : Chint Electrics India Pvt Ltd
Type of Product : Fixed Thermal & Fixed Magnetic Moulded Case Circuit Breakers
No. of Pole : 3 Pole
Frame : ML1
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 10
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 0.5
Type of Product : Thermal Magnetic Trip MCCB
Series : EasyPact CVS
Breaking Capacity : 25 kA
No. of Pole : 3 Pole
Type of Product : MCCB Enclosures
Series : Loadline
Type of Product : MCCB Enclosures
Frame : HID
Type of Product : Adjustable Thermal & Adjustable Magnetic Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : AS
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 16
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 1
Type of Product : Fixed Thermal & Fixed Magnetic Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : GS
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 10
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 1
Type of Product : Thermal Magnetic Trip MCCB
Series : EasyPact CVS
Breaking Capacity : 25 kA
No. of Pole : 4 Pole
Type of Product : Fixed Thermal & Fixed Magnetic Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : GN
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 16
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 0.75
Type of Product : Adjustable Thermal & Adjustable Magnetic Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : LS
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 36
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 1
Type of Product : Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : HIM 400
Rated Ultimate Shortcircuit Breaking Ics=100% (kA rms) : 45
Rated Ultimate Short-circuit Breaking Capacity Icu at 250 V (2P)-DC (kA) : 20
Type of Product : Adjustable Thermal & Adjustable Magnetic Moulded Case Circuit Breakers
No. of Pole : 3 Pole
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 25
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 0.75
Type of Product : MCCB Thermal Magnetic Trip Unit (FTFM)
Series : 3VT1
Breaking Capacity : 25 kA
No. of Pole : 3 Pole
Frequency : 50 Hz
Voltage Range (AC) : 415 V
Type of Product : Adjustable Thermal & Adjustable Magnetic Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 25
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 0.75
Type of Product : Adjustable Thermal & Adjustable Magnetic Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : AS
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 25
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 0.75
Type of Product : MCCB Thermal Magnetic Trip Unit (FTFM)
Series : Sinova
Breaking Capacity : 10 kA
No. of Pole : 4 Pole
Frame Size : 3VJ10 (VJ1 125X)
Frequency : 50 Hz
Characteristic : Thermal Magnetic Trip Unit
Current Setting : Fixed Thermal, Fixed Magnetic
Voltage Range (AC) : 415 V
Type of Product : Adjustable Thermal & Fixed Magnetic Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : LS
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 36
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 1
Type of Product : Moulded Case Circuit Breakers
No. of Pole : 3 Pole
Frame : FEN
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 35
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 1
Type of Product : Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : HIM 250
Rated Ultimate Shortcircuit Breaking Ics=100% (kA rms) : 26
Rated Ultimate Short-circuit Breaking Capacity Icu at 250 V (2P)-DC (kA) : 15
Type of Product : Adjustable Thermal & Fixed Magnetic Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : HD1
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 36
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 1
Type of Product : Adjustable Thermal & Fixed Magnetic Moulded Case Circuit Breakers
No. of Pole : 3 Pole
Frame : LS
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 36
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 1
Type of Product : Adjustable Thermal & Fixed Magnetic Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : LN
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 50
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 0.75
Type of Product : Fixed Thermal & Fixed Magnetic Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : FN
Rated Ultimate Shortcircuit Breaking Capacity Icu at 415 V (kA rms) : 35
Rated Service Shortcircuit Breaking Capacity Ics=%Icu at 415 V (kA rms) : 1
Type of Product : Moulded Case Circuit Breakers
No. of Pole : 4 Pole
Frame : HIM 125
Rated Ultimate Shortcircuit Breaking Ics=100% (kA rms) : 38
Rated Ultimate Short-circuit Breaking Capacity Icu at 250 V (2P)-DC (kA) : 20
Page 1 of 179 results
A molded case circuit breaker is an electrical protection device that protects an electrical circuit from overcurrent, short circuit, and other electrical faults. MCCBs are commonly used in commercial and industrial applications, such as power distribution systems, motor control centres, and panelboards.
MCCBs consist of a molded case that contains the electrical contacts, current-carrying parts, and the trip unit, which is responsible for sensing and interrupting the current flow in case of a fault. The trip unit can be thermal, magnetic, or a combination of both and is designed to trip the circuit breaker when the current exceeds a certain threshold. If you know about the product, then Schnider molded circuit breaker is one of the best-selling products to shop for your work requirements.
Molded case circuit breakers are widely used in electrical distribution systems to protect against overcurrents, short circuits, and ground faults. Some of the benefits of using MCCBs are:
1. Protection: MCCBs provide reliable protection against overcurrents, short circuits, and ground faults, which helps to prevent damage to electrical equipment, minimize downtime, and reduce the risk of electrical hazards.
2. Flexibility: MCCBs are available in a wide range of sizes and trip curves, which allows them to be customised for specific applications and load types. They can be easily adjusted to provide the desired level of protection for the equipment being used.
3. Durability: MCCBs are designed to withstand high levels of stress and abuse, making them suitable for use in harsh industrial environments. They are built with durable materials and can withstand mechanical shock, vibration, and temperature fluctuations.
4. Ease of installation: MCCBs are easy to install and maintain, which reduces installation time and costs. They can be easily integrated into existing electrical systems, and replacement parts are readily available.
5. Cost-effective: MCCBs offer a cost-effective circuit protection solution compared to other circuit breakers. They are typically less expensive than other circuit breakers, and their long service life helps reduce maintenance costs.
Overall, Schnider electric molded circuit breakers offer reliable, flexible, and cost-effective protection for electrical distribution systems, making them popular for industrial, commercial, and residential applications.
Molded case circuit breakers (MCCBs) are a type of electrical protection device that are commonly used in low-voltage electrical systems. They are designed to protect electrical circuits and equipment from overloads, short circuits, and other faults.
There are several types of molded case circuit breakers, including:
1. Thermal Magnetic MCCBs - These are the most common MCCBs that combine thermal and magnetic protection mechanisms. They use a bimetallic strip to sense thermal overloads and an electromagnet to sense short-circuit currents.
2. Electronic MCCBs - These use solid-state electronics to provide protection and are often used in more complex systems requiring faster tripping times. They also provide additional features like adjustable trip settings, diagnostics, and communication capabilities.
3. Hydraulic-Magnetic MCCBs use a hydraulic mechanism to provide overcurrent protection and a magnetic mechanism to provide short circuit protection. They are often used in harsh environments where vibration and shock may cause false trips.
4. Compact MCCBs - These are smaller and more compact than standard MCCBs and are designed for use in limited space applications. They typically have lower current ratings and fewer features than standard MCCBs.
5. High-Current MCCBs - These are designed for use in applications with high currents, such as in large motors or generators. They typically have current ratings of several thousand amps, and may use special materials and designs to handle the high currents and temperatures.
Overall, the choice of MCCB type will depend on the specific application requirements, such as the level of protection required, the size and complexity of the system, and the environmental conditions. You can shop for ac circuit breakers or automatic circuit breakers at affordable prices.
MCCB stands for Molded Case Circuit Breaker, and it is an important component in electrical distribution systems that helps protect equipment and personnel from electrical faults. Here are some pointers to keep in mind when purchasing MCCBs:
1. Current rating: Choose an MCCB with a current rating that matches the current requirements of your electrical system.
2. Breaking capacity: Ensure that the MCCB has a breaking capacity higher than the maximum fault current that could occur in your electrical system. This ensures that the MCCB can safely interrupt the current in case of a fault.
3. Trip characteristics: MCCBs have different trip characteristics, such as thermal, magnetic, or electronic. Choose the trip characteristic that is appropriate for your application.
4. Selectivity: Consider the selectivity of the MCCB, which is the ability of the MCCB to isolate only the faulty circuit in case of a fault, without tripping other circuits. This can help minimize downtime and damage to equipment.
5. Quality and reliability: Look for MCCBs from reputable manufacturers with a proven track record of producing high-quality and reliable products.
6. Accessories: Consider any additional accessories that may be required, such as shunt trips, under-voltage releases, or auxiliary contacts.
7. Compliance: Ensure that the MCCB complies with the relevant international standards, such as IEC or UL.
8. Cost: Consider the cost of the MCCB, but do not compromise on quality or safety for cost savings.
With these pointers in mind, you can select the appropriate MCCB for your electrical accessories and ensure safe and reliable operation.
