| Size (mm) | 32x10x35 |
| Rated Current (A) | 1.5 |

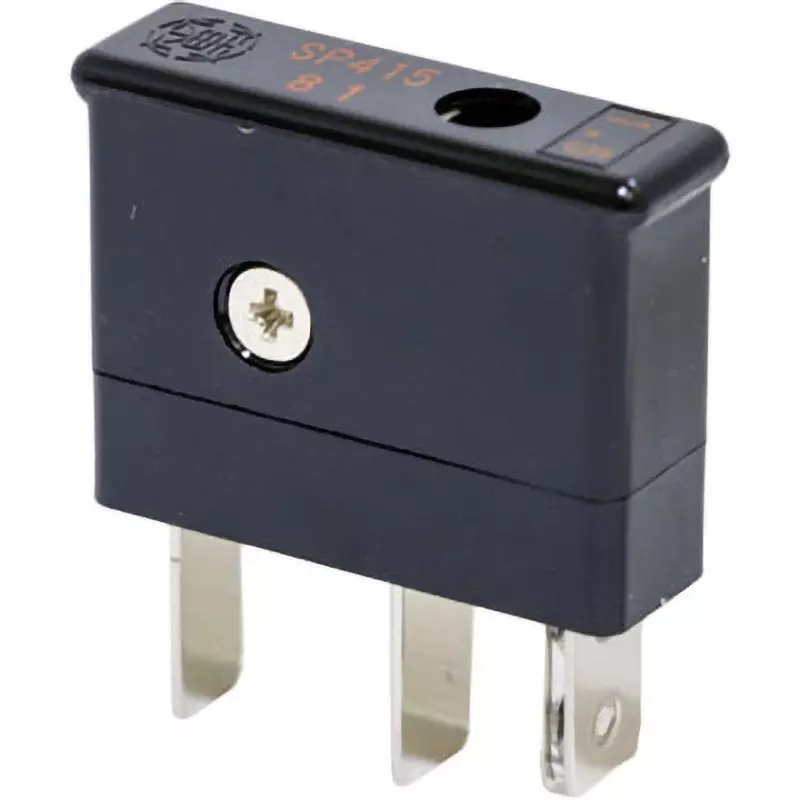

| Type of Product | SP4 Fuse for Alarm |
| Model No | SP4-15 |
Size (mm) |
32x10x35 |
Rated Current (A) |
1.5 |
Type of Product |
SP4 Fuse for Alarm |
Model No |
SP4-15 |
Color |
Black |
Standard |
(200% Of Maximum Safe Passing Current) 10-80 Seconds, (300%) 5-18 Seconds |
Rated Breaking Capacity |
2500 Amp (AC220V), 1500 Amp (DC 250 V) |
Country of Origin |
Japan |
Rated Voltage (V) |
AC 220, DC 250 |
Mass (g) |
9.5 |
Lead Wire |
None |
Monotaro ID |
57837071 |
Operating Temperature Range |
-20 to 50℃ |
Name of Manufacturer/Packer/Importer |
Daito Communication Equipment Co., Ltd. |
Import Country |
Direct Import from Japan |
Current (A) (50/60Hz) |
2 (maximum safe passage) |
RoHS Directive |
Correspondence |
Fusing l² t (A².s) |
60 |
Storage Temperature |
-40 to 60℃ |
Resistance Value (Ω) |
0.24 Ω |
Maximum Safe Through Current (A) |
1.5 |
