| Size (mm) | Φ17.5x35.6 |
| Rated Current (A) | 20 |

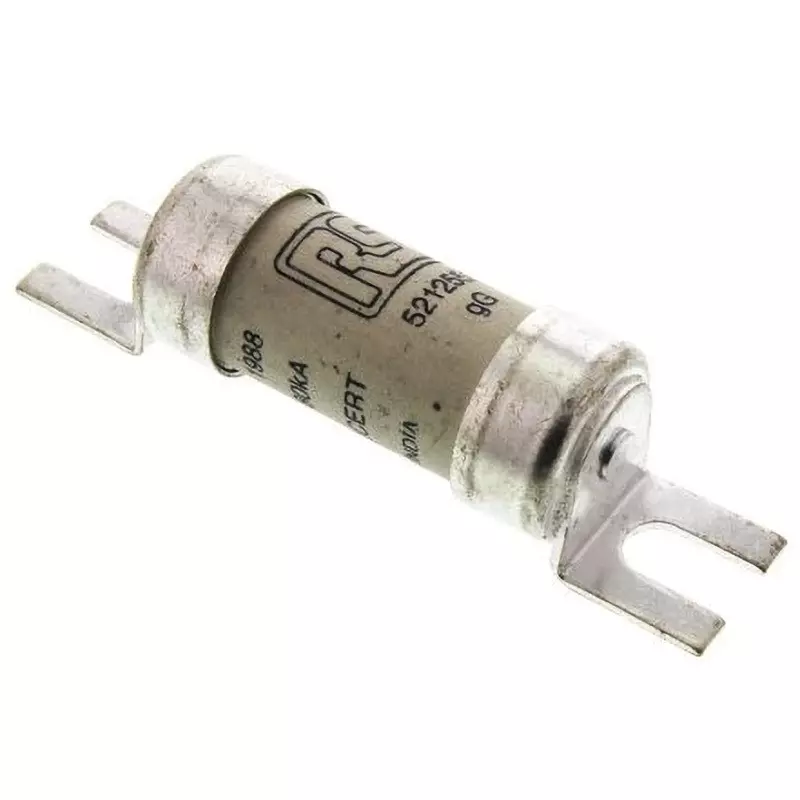

| Type of Product | British Standard Fuse |
| Model No | 521-2551 |
Size (mm) |
Φ17.5x35.6 |
Rated Current (A) |
20 |
Type of Product |
British Standard Fuse |
Model No |
521-2551 |
Type |
Tube Fuse |
Pack of |
5 Pcs |
Country of Origin |
Japan |
Rated Voltage (V) |
550 AC |
Specifications |
Fuse standard: BS 88, IEC 60269 Fuse size: A1 Rated current: 20A Rated voltage: 550 V AC High rupture capacity: Yes Body diameter: 17.5mm Total length: 55mm Tag width: 11.1mm Body height: 35.6mm Body length: 35.6 mm Center Fixed: 44.5mm Application Category: gG Fuse Dimensions: 13.7 (Dia.) x 55.2mm HRC Fuse. : 16 5 kA @ 240 V AC) Rated @ 415 V AC / 250 V DC (bolted connection type) (E1 type: 240 V AC) Power company, Lloyd's Register of Shipping approval, ASTA 20 approval |
Lead Wire |
None |
Breaking Current (A) |
80000(@415 V AC), 40000(@250 V DC) |
Monotaro ID |
46927948 |
Name of Manufacturer/Packer/Importer |
RS Components Co., Ltd. |
Import Country |
Direct Import from Japan |
