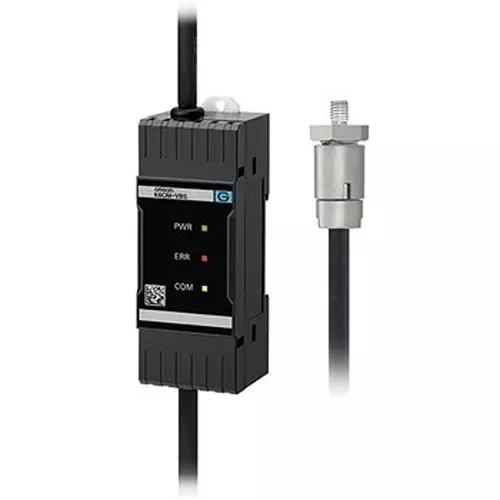

| Type of Product | Motor Condition Monitoring Equipment |
| Model No | K6CM-VBS1 |
| Country of Origin | Japan |
| Protection Class | IP67G compliant |
Type of Product |
Motor Condition Monitoring Equipment |
Model No |
K6CM-VBS1 |
Country of Origin |
Japan |
Protection Class |
IP67G compliant |
Pack of |
1 Pcs |
Monotaro ID |
58250089 |
Vibration Resistance |
Frequency: 10 to 55Hz/One amplitude: 0.35 mm/X, Y, Z directions/5minx10 |
Withstand Voltage |
AC500V / 1 minute |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Insulation Resistance (MOhm) |
o Ver 20 |
Specifications |
●Applicable model: K6CM-VB ●Monitoring type: -●Included cable terminal: -●Protection element: - |
Shock Resistance (m/s²) |
100/3 axis 3 times in 6 directions |
Applicable Standard |
EN61010-2-030 installation environment (pollution degree 2, overvoltage category II, measurement category II) |
Cable Length (m) |
Between preamplifier and sensor head [2.6+0.3 (cannot be extended)]/Between preamplifier and main unit (can be extended up to 100) |
Connection to Equipment |
M6 screw |
Measurement Range |
Acceleration (0.05~9.99G), speed (0.90~45.00 mm/s), motor temperature (0~80℃), temperature difference (0~80℃) |
LED Display |
Preamplifier PWR (green), ERR (red), COM (orange) |
Mass (Kg) |
0.04 (including cable) |
Import Country |
Direct Import from Japan |
