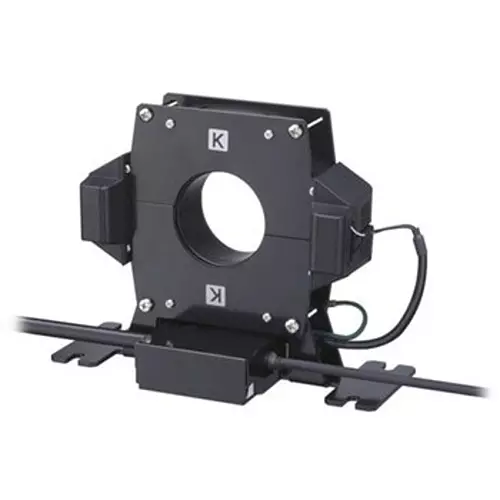

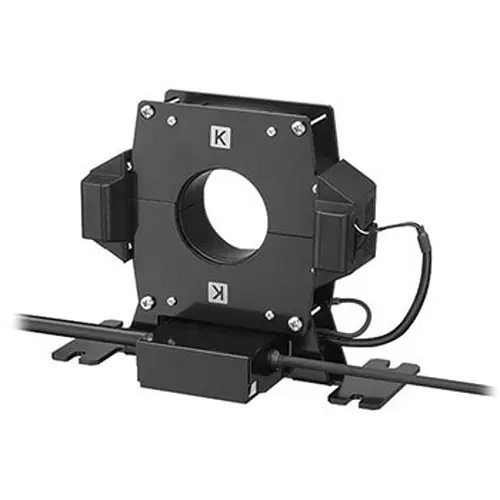

| Type of Product | Motor Condition Monitoring Equipment |
| Model No | K6CM-ISZBI52 |
| Rated Current (A) | 300 (route) |
| Country of Origin | Japan |
Type of Product |
Motor Condition Monitoring Equipment |
Model No |
K6CM-ISZBI52 |
Rated Current (A) |
300 (route) |
Country of Origin |
Japan |
Rated Voltage (V) |
AC200-480/50Hz/60Hz/three phase |
Protection Class |
IP20 |
Pack of |
1 Pcs |
Monotaro ID |
58250055 |
Withstand Voltage |
AC2000V/1 minute (between mounting bracket and secondary winding) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Insulation Resistance (MOhm) |
100 mohm or more (between mounting bracket and secondary winding) |
Specifications |
● Monitoring type: - ● Attached cable terminal: - ● Protective element: - |
Applicable Standard |
EN61010-2-030 installation environment (pollution degree 2, overvoltage category II, measurement category II) |
Structure |
indoor split type |
Measurement Range |
Insulation resistance (0M~1MΩ), leakage current (0mA~200mA) |
Mass (Kg) |
2.2999999999999998 |
Input terminals |
Voltage: 3 terminal lead wire, length 1m (included cable) |
Output Terminal |
4-terminal lead wire, length 1m (included cable) Possible wiring length 100m or less |
Through-Hole Diameter |
52 mm |
Import Country |
Direct Import from Japan |
