| Tolerance | ±20% |

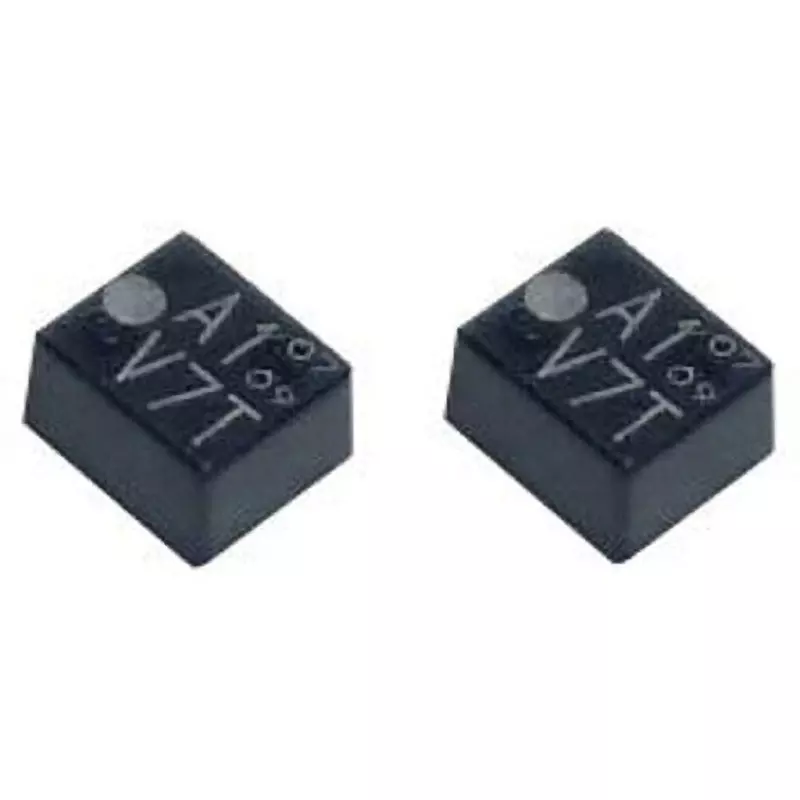

| Model No | ETPSF270M6E |
| Material | Dielectric: Tantalum |
| Type of Product | Polymer Capacitor |
Tolerance |
±20% |
Model No |
ETPSF270M6E |
Material |
Dielectric: Tantalum |
Type of Product |
Polymer Capacitor |
Polarity |
With Polarity |
Country of Origin |
Japan |
Capacitance |
270 μF |
Technology |
Polymer |
Maximum Operating Temperature |
105 |
Series |
TPSF |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Equivalent Series Resistance |
6 mΩ |
Electrolyte Type |
Solid |
Length (mm) |
3.5 |
Monotaro ID |
65251937 |
Dimension (mm) |
3.5x2.8x1.9 |
Surface Mount Device |
Surface Mount |
Specifications |
Lead-free low-profile chip capacitors. Low impedance and low ESR at high frequencies. High ripple current performance. Long life: 2,000 hours at 105°C. Excellent noise absorption characteristics. Excellent temperature characteristics up to 55°C. Guaranteed inrush current of 20 A. Superior safety compared to Ta-Cap. POSCAP uses sintered tantalum for the anode system and a highly conductive polymer made using Panasonic's proprietary method for the cathode system. This has enabled POSCAP to be made thinner and smaller, while also achieving excellent high-frequency characteristics with low ESR (equivalent series resistance). These features make POSCAP one of the most recommended products for digital/high-frequency applications. POSCAP also boasts high reliability and thermal resistance. Its small size and low ESR (max. 6 mΩ) are achieved with downward-facing terminals. Ultra-small size with high capacitance (S09 size: 6.3 V DC / 150 μF). High voltage: 35 V DC (max.) |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
