RS PRO Electrolytic Capacitor, Capacitance 3.3 µF, Voltage 450 V DC, Model No 7112119 is a type of capacitor that uses an electrolyte as its dielectric material. It is commonly used in electronic circuits where high capacitance values and relatively large energy storage capabilities are required.
The dielectric in an electrolytic capacitor is formed by a thin oxide layer that develops on one of the electrodes. This oxide layer acts as an insulator and allows the capacitor to store electrical charge. The electrolyte, usually a conductive liquid or gel, provides the necessary ions for the electrochemical reactions that occur during charging and discharging.
One of the distinguishing features of electrolytic capacitors is their polarity. They have a designated positive and negative terminal, and connecting them with the wrong polarity can lead to damage or failure. The positive terminal is marked with a "+" symbol or other indicators, and proper orientation must be observed during installation.
Electrolytic capacitors are known for their high capacitance values, typically ranging from microfarads (µF) to farads (F). This makes them suitable for applications that require large amounts of energy storage or filtering, such as power supply circuits and audio amplifiers. Their high capacitance allows them to store and discharge electrical energy more effectively compared to other capacitor types.
There are two main types of electrolytic capacitors: aluminum electrolytic capacitors and tantalum electrolytic capacitors.
Aluminum electrolytic capacitors are the most commonly used type. They consist of aluminum foil electrodes and an electrolyte, typically a liquid or gel containing a conducting salt. Aluminum electrolytic capacitors offer high capacitance values, reasonable cost, and good voltage ratings. They are used in various applications, including power supplies, audio equipment, and electronic devices.
Tantalum electrolytic capacitors, on the other hand, use tantalum as the electrode material. They have a higher energy density and better stability compared to aluminum electrolytic capacitors. Tantalum capacitors are often used in compact electronic devices where size and performance are critical, such as smartphones, laptops, and medical equipment.
While electrolytic capacitors offer advantages in terms of capacitance and energy storage, they also have some limitations. They are polarized components and can be sensitive to overvoltage or reverse voltage, which can cause electrolyte leakage, venting, or even explosion in extreme cases. They also have higher equivalent series resistance (ESR) compared to other capacitor types, which can affect their performance in certain applications.
In summary, electrolytic capacitors are widely used in electronic circuits that require high capacitance values and relatively large energy storage capabilities. They offer advantages in terms of capacitance, voltage ratings, and cost. However, their polarity, sensitivity to overvoltage, and higher ESR should be considered during circuit design and usage.
![L&T [ Lauritz Knudsen ] 5 kVAr 440 V 3 Phase Cylindrical Power Capacitor LTCCF305B2](http://static1.industrybuying.com/products/industrial-automation/capacitors/cylindrical-capacitors/ELE.CAP.64383857_1772540991701.webp "L&T [ Lauritz Knudsen ] 5 kVAr 440 V 3 Phase Cylindrical Power Capacitor LTCCF305B2")
Phase : 3 Phase

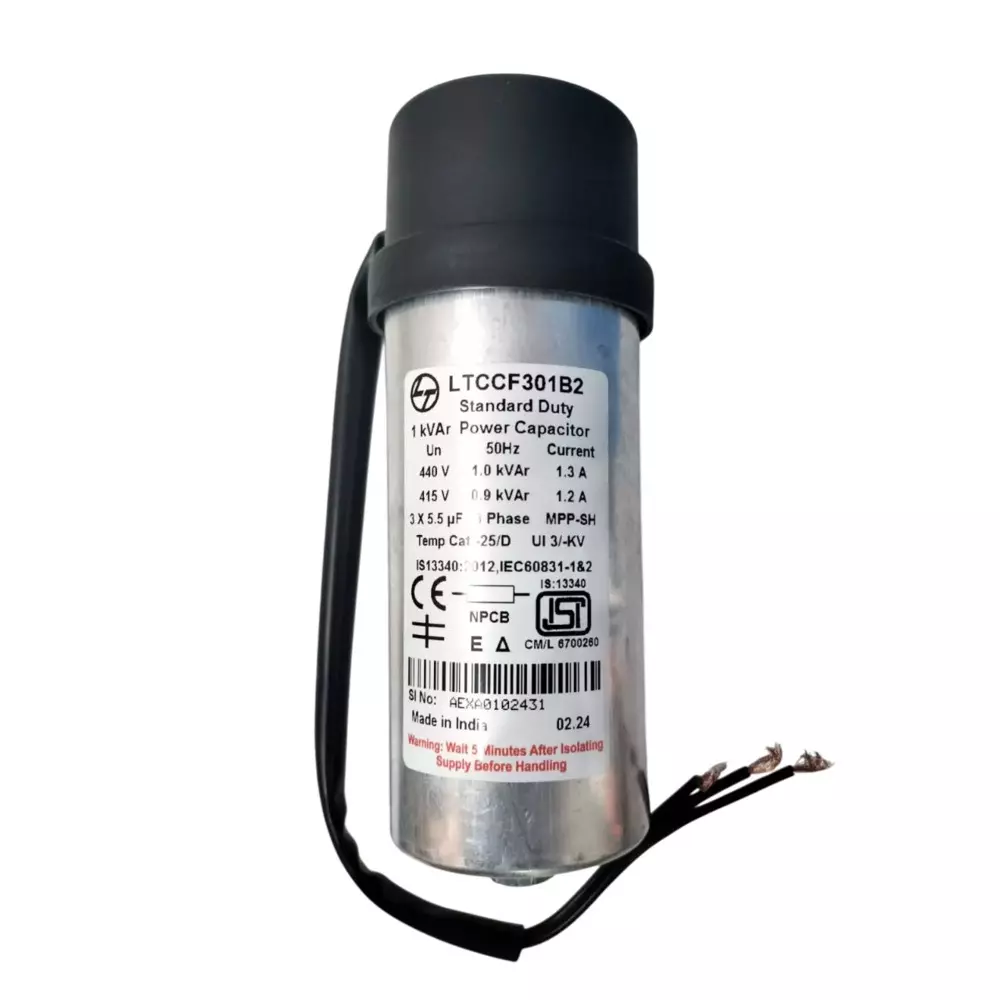

![L&T [ Lauritz Knudsen ] 1 kVAr 3Ph Standard Duty Power Capacitor LTCCF301B2](http://static1.industrybuying.com/products/industrial-automation/capacitors/cylindrical-capacitors/ELE.CAP.64383903_1760357063227.webp "L&T [ Lauritz Knudsen ] 1 kVAr 3Ph Standard Duty Power Capacitor LTCCF301B2")
