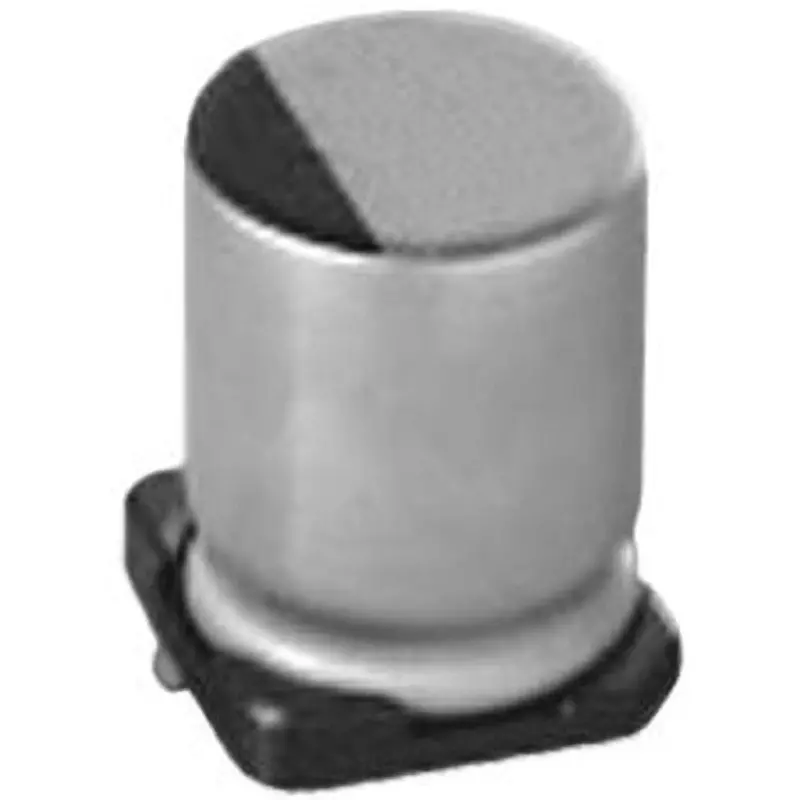

| Model No | EEETK1H471AM |
| Type of Product | Capacitor |
| Voltage | 50 DC |
| Polarity | With Polarity |
Model No |
EEETK1H471AM |
Type of Product |
Capacitor |
Voltage |
50 DC |
Polarity |
With Polarity |
Country of Origin |
Japan |
Capacitance |
470 μF |
Technology |
Aluminum Electrolytic |
Maximum Operating Temperature |
125 |
Minimum Operating Temperature |
-40 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Height (mm) |
16.5 |
Monotaro ID |
65212755 |
Diameter (Φmm) |
16 |
Dimension (mm) |
16(Dia.)x16.5 |
Surface Mount Device |
Surface Mount |
Specifications |
TK High-Temperature Reflow Series. Panasonic medium-sized TK Series Type V electrolytic capacitors offer a 2000-hour endurance at +125°C. These surface-mount capacitors can withstand high reflow temperatures. AEC-Q200 qualified (some deviations apply). High ripple current. High reliability. Low impedance. Long life. Surface mount. Applications. Panasonic medium-sized TK Series Type V electrolytic capacitors are AEC-Q200 qualified and suitable for automotive applications. These Panasonic electrolytic capacitors are recommended for use in industrial infrastructure, power supplies, measuring instruments, inverters, motor drivers, HEMS, BEMS, and FEMS. Other suitable applications include ICT applications such as base stations, PCs, data centers, and wireless charging. TK Series Type V medium-sized aluminum capacitors can be used in household appliances such as air conditioners, white goods, and information appliances. Other applications include medical equipment, office equipment, power tools, lighting, power management, safety, and automotive infotainment and comfort accessories. |
RoHS Directive |
Correspondence |
Service Life |
2000h |
Import Country |
Direct Import from Japan |
