| Tolerance | ±20% |

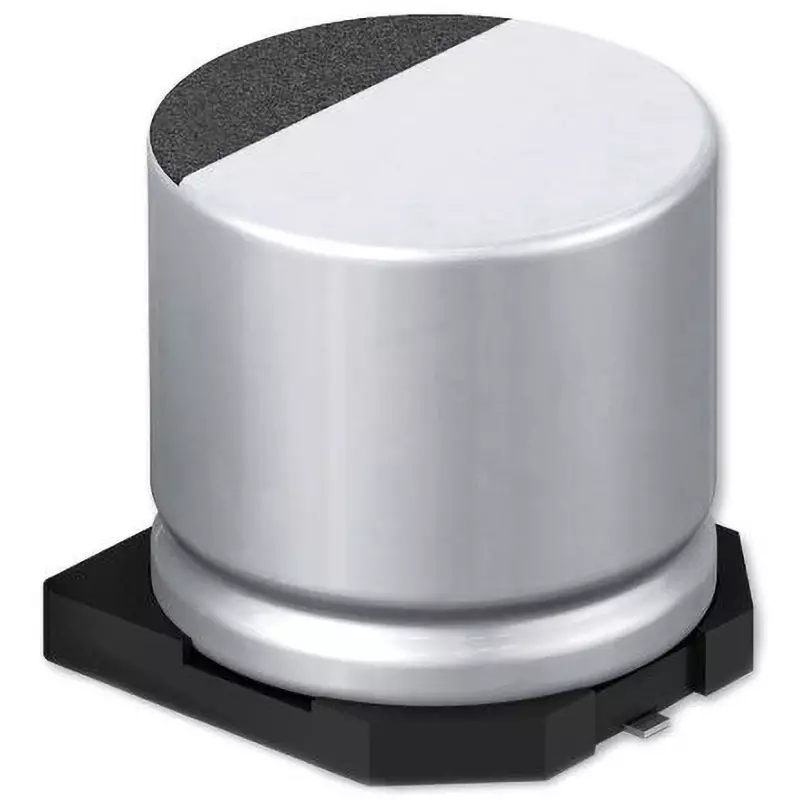

| Model No | EEEFK1H390SP |
| Type of Product | Electrolytic capacitor |
| capacitance (μF) | 39 |
Tolerance |
±20% |
Model No |
EEEFK1H390SP |
Type of Product |
Electrolytic capacitor |
capacitance (μF) |
39 |
Country of Origin |
Japan |
Technology |
Electrolytic |
Pack of |
20 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Equivalent Series Resistance |
880 mΩ |
Lead Pitch |
1.8 mm |
Ripple Current |
165 mA |
Length (mm) |
5.8 |
Monotaro ID |
48198527 |
Diameter (Φmm) |
6.3 |
Dimension (mm) |
6.3(Dia.)x5.8 |
Specifications |
FKS Type V High Temperature Reflow Series. Panasonic's FKS-V Aluminum Electrolytic Capacitor is a low impedance, long life and highly reliable solution. Aluminum foil electrolytic paper is contained in an aluminum case, and the life is 105 hours and 2000 hours. FKS-V aluminum electrolytic capacitors are a little smaller than Panasonic's FK series. The performance is the same as conventional capacitors, but the case size is small, so the board design can be downsized. Features.Suitable for high temperature lead-free reflow soldering. AEC-Q200 qualified low ESR advanced foil technology standard product can withstand up to 10G impact and vibration resistant structure can withstand up to 30G impact. V aluminum electrolytic capacitors are ideal for use with power supplies. AEC-Q200 qualified and recommended for use in automotive products. Main applications include inverters, rectifier circuits, and DC / DC converters. |
Service Life |
2000h |
Import Country |
Direct Import from Japan |
Leakage current (μA) |
19.5 |
Type of Sign |
Surface Mount |
