| Tolerance | ±20% |
| Model No | EEUTP1E821 |

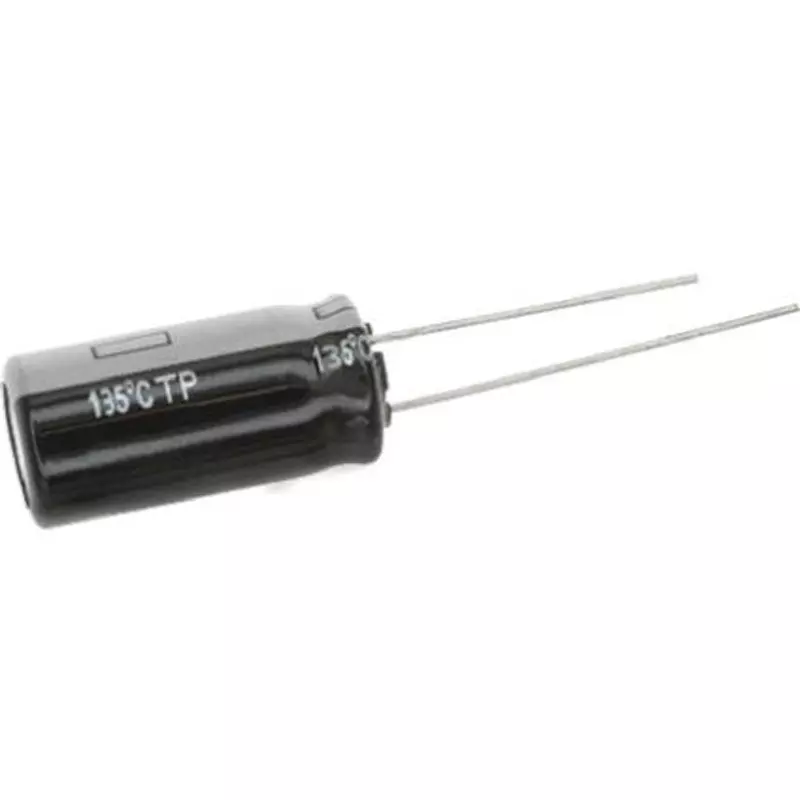

| Type of Product | Capacitor |
| Voltage | 25 DC |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Tolerance |
±20% |
Model No |
EEUTP1E821 |
Type of Product |
Capacitor |
Voltage |
25 DC |
Country of Origin |
Japan |
Capacitance |
820 μF |
Technology |
Aluminum Electrolytic |
Maximum Operating Temperature |
135 |
Minimum Operating Temperature |
-40 |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Height (mm) |
20 |
Monotaro ID |
65236704 |
Diameter (Φmm) |
10 |
Dimension (mm) |
10(Dia.)x20 |
Surface Mount Device |
Radial, Through Hole |
Specifications |
Tp Series. Boasts A Long Lifespan Of 2000 To 5000 Hours (Depending On Case Size) At +125°C. Endurance Is 1000 To 2000 Hours (Depending On Case Size) At +135°C. At High Frequencies, It Delivers Approximately 20 To 40% Higher Ripple Current Than The Ta Series. Compact. Smaller Than The Panasonic Ta Series. Aec-Q200 Certified (Some Deviations Apply). High Reliability. Low Impedance. Long Life. Applications. Panasonic'S Tp Series Type A Electrolytic Capacitors Are Highly Reliable And Ideal For Industrial Equipment. |
RoHS Directive |
Correspondence |
Service Life |
2000 h， 3000 h |
Import Country |
Direct Import from Japan |
