| Tolerance | ±20% |

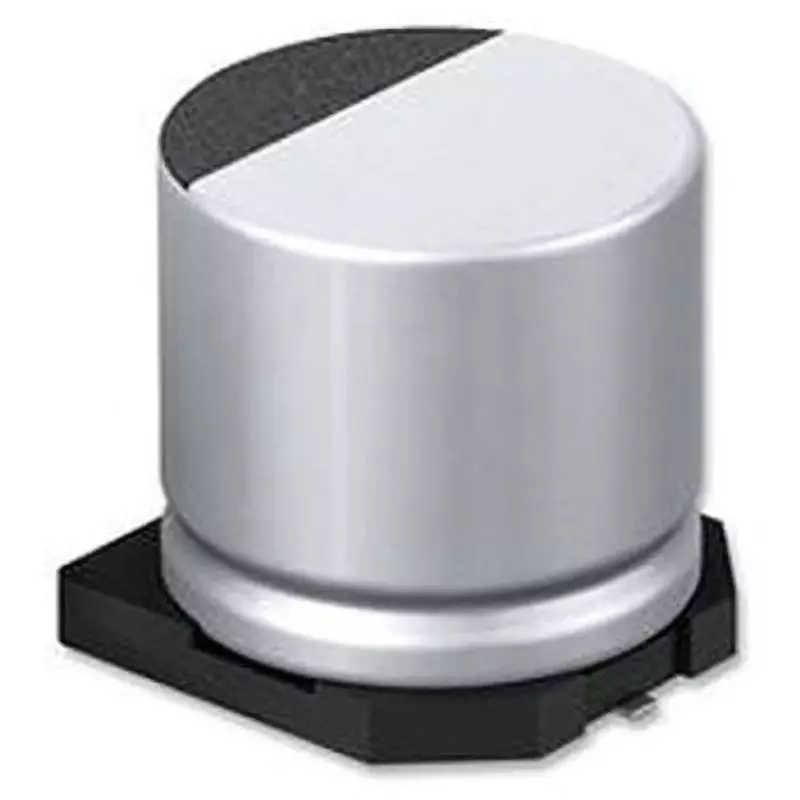

| Model No | EEETC1A221P |
| Type of Product | Electrolytic capacitor |
| Voltage | DC 10 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Tolerance |
±20% |
Model No |
EEETC1A221P |
Type of Product |
Electrolytic capacitor |
Voltage |
DC 10 |
Country of Origin |
Japan |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Equivalent Series Resistance |
0.2/20, 3/-40 Ω mΩ |
Lead Pitch |
3.1 mm |
Ripple Current |
410 mA |
Length (mm) |
10.199999999999999 |
Monotaro ID |
48190373 |
Diameter (Φmm) |
8 |
Dimension (mm) |
8(Dia.)x10.2 |
Specifications |
AEC-Q200 qualified. Panasonic TC series high temperature lead-free reflow. Panasonic TC series aluminum electrolytic capacitors are compatible with high temperature lead-free reflow. This capacitor features 50% higher ripple current than the TP series. The temperature range is -40 to 125. The TC series has a durability of 3000 hours @ 125 hours. Nominal capacitance range is 47 to 470 μF and capacitance tolerance is ± 20% (120Hz / 20). |
Service Life |
3000h |
Import Country |
Direct Import from Japan |
Leakage current (μA) |
0.01CV |
Type of Sign |
Surface Mount |
Lead Wire Length (mm) |
3.4 |
