| Tolerance | ±10% |
| Model No | ECQE4224KF |
| Type of Product | Film Capacitor |
| Voltage | 400 DC |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Tolerance |
±10% |
Model No |
ECQE4224KF |
Type of Product |
Film Capacitor |
Voltage |
400 DC |
Features |

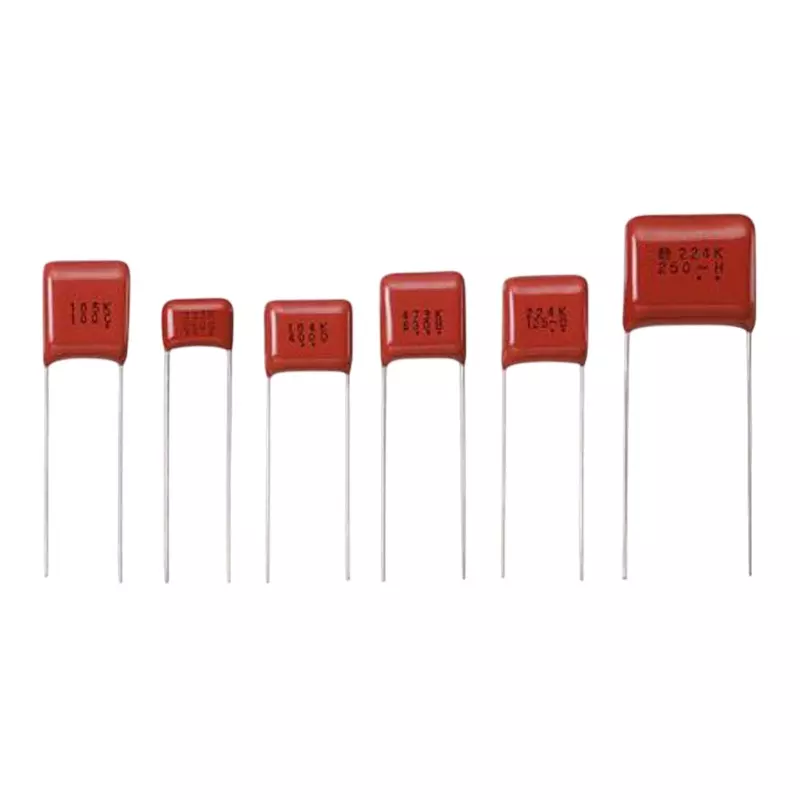

Metallized Polyester Capacitor ECQE Series 100 to 630 V. Non-inductive structure using metallized polyester film. Flame-retardant epoxy resin exterior. Self-healing and highly reliable. Excellent electrical properties. Flame-retardant exterior. |
Country of Origin |
Japan |
Capacitance |
220 nF |
Series |
ECQE |
Minimum Operating Temperature |
-40 |
Pack of |
5 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Lead Spacing |
15 mm |
Length (mm) |
18.5 |
Height (mm) |
13 |
Monotaro ID |
65235539 |
Dimension (mm) |
5.9x13x18.5 |
Surface Mount Device |
Through hole |
Specifications |
Terminal Specifications: Through-Hole Mounting |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Temperature Characteristics |
Polyester |
