| Tolerance | ±20% |
| Model No | EEEFK1V680SP |
| Type of Product | Capacitor |
| Voltage | 35 DC |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Tolerance |
±20% |
Model No |
EEEFK1V680SP |
Type of Product |
Capacitor |
Voltage |
35 DC |
Country of Origin |
Japan |
Capacitance |
68 μF |
Technology |
Aluminum Electrolytic |
Maximum Operating Temperature |
105 |
Minimum Operating Temperature |
-55 |
Pack of |
20 Pcs |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Length (mm) |
5.8 |
Monotaro ID |
65229966 |
Diameter (Φmm) |
6.3 |
Dimension (mm) |
6.3(Dia.)x5.8 |
Surface Mount Device |
Surface Mount |
Specifications |

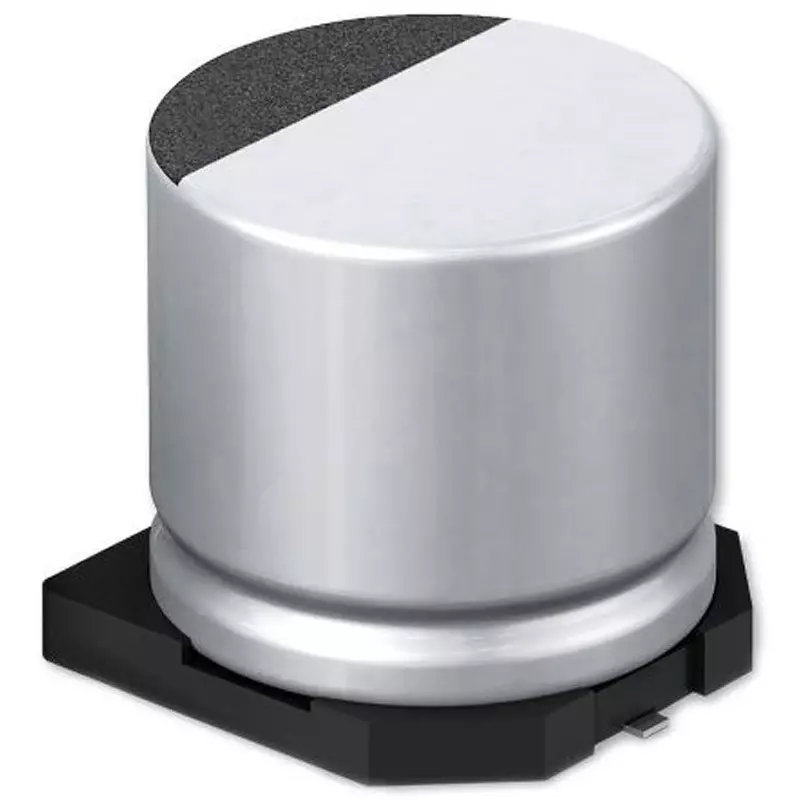

FKS Type V High-Temperature Reflow Series. Panasonic's FKS-V aluminum electrolytic capacitors offer low impedance, long life, and reliable performance. They feature aluminum foil electrolytic paper housed in an aluminum case, with a lifespan of 2000 hours at +105°C. FKS-V aluminum electrolytic capacitors are slightly smaller than Panasonic's FK series. While offering the same performance as conventional capacitors, the smaller case size allows for more compact board designs. Features: Suitable for high-temperature, lead-free reflow soldering. AEC-Q200 qualified. Low ESR. Advanced foil technology. Standard products withstand shocks up to 10 G, and vibration-resistant products withstand shocks up to 30 G. Environmentally friendly. Product Application Information: FKS-V aluminum electrolytic capacitors are ideal for use in power supplies. AEC-Q200 qualified and recommended for use in automotive applications. Typical applications include inverters, rectifier circuits, and DC/DC converters. |
RoHS Directive |
Correspondence |
Service Life |
2000h |
Import Country |
Direct Import from Japan |
Dielectric Loss Tangent |
1.1999999999999999E-3 |
