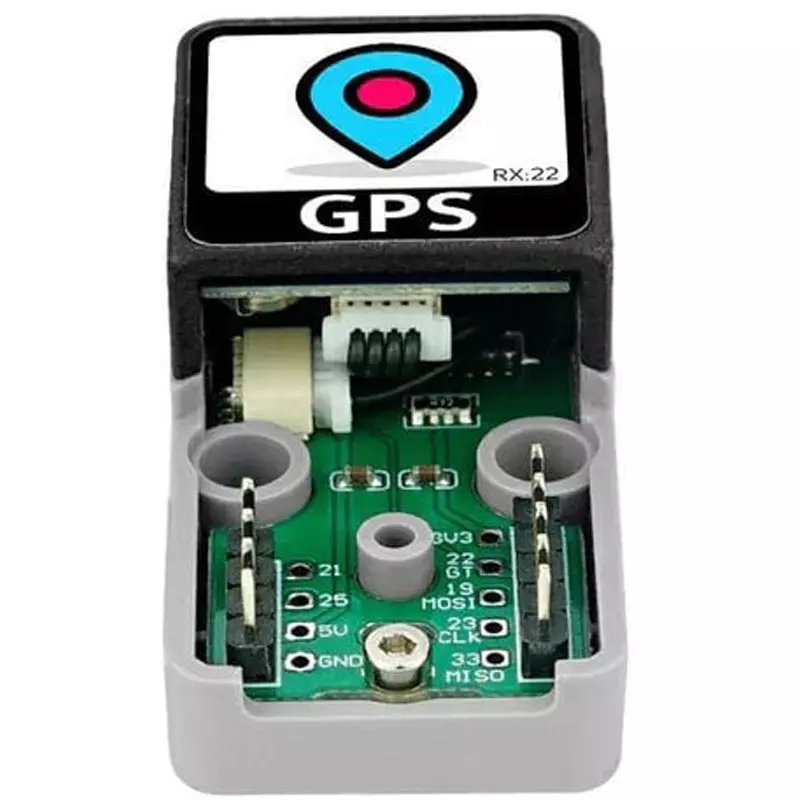

| Type of Product | ATOMIC GPS Base (M8030-KT) |
| Model No | M5STACK-A134 |
| Operating Temperature | -40℃ to +85℃ |
| Sensitivity | Trace: -167dbm, Capture: 160dbm, Cold Start: -148dbm, Hot Start: -156dbm |
Type of Product |
ATOMIC GPS Base (M8030-KT) |
Model No |
M5STACK-A134 |
Operating Temperature |
-40℃ to +85℃ |
Sensitivity |
Trace: -167dbm, Capture: 160dbm, Cold Start: -148dbm, Hot Start: -156dbm |
No. of Channels |
72 Search Channel |
Monotaro ID |
68572318 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Specifications |
Update Frequency: 1-10Hz Maximum Acceleration: < 4g Start Time: Cold start: 26 seconds, Warm start: 25 seconds, Hot start: 1 second NMEA Sentence: RMC, VTG, GGA, GSA, GSV, GLL Indicator Light: The blue light flashes when the transmitter is turned on. The PPS light turns on after a position is fixed and remains off if no position is fixed. |
Name of Manufacturer/Packer/Importer |
M5Stack |
Baud Rate |
9600bps |
Protocol |
[Output] NMEA-0183 |
Accuracy |
Horizontal 2m, speed 0.1m/s, time 1μs |
Mass (g) |
14.4 |
Dimension (mm) |
64x18x18 |
Frequency Accuracy |
GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1 |
Content |
ATOMIC GPS Basex1 |
Maximum Speed (m/sec) |
515 |
