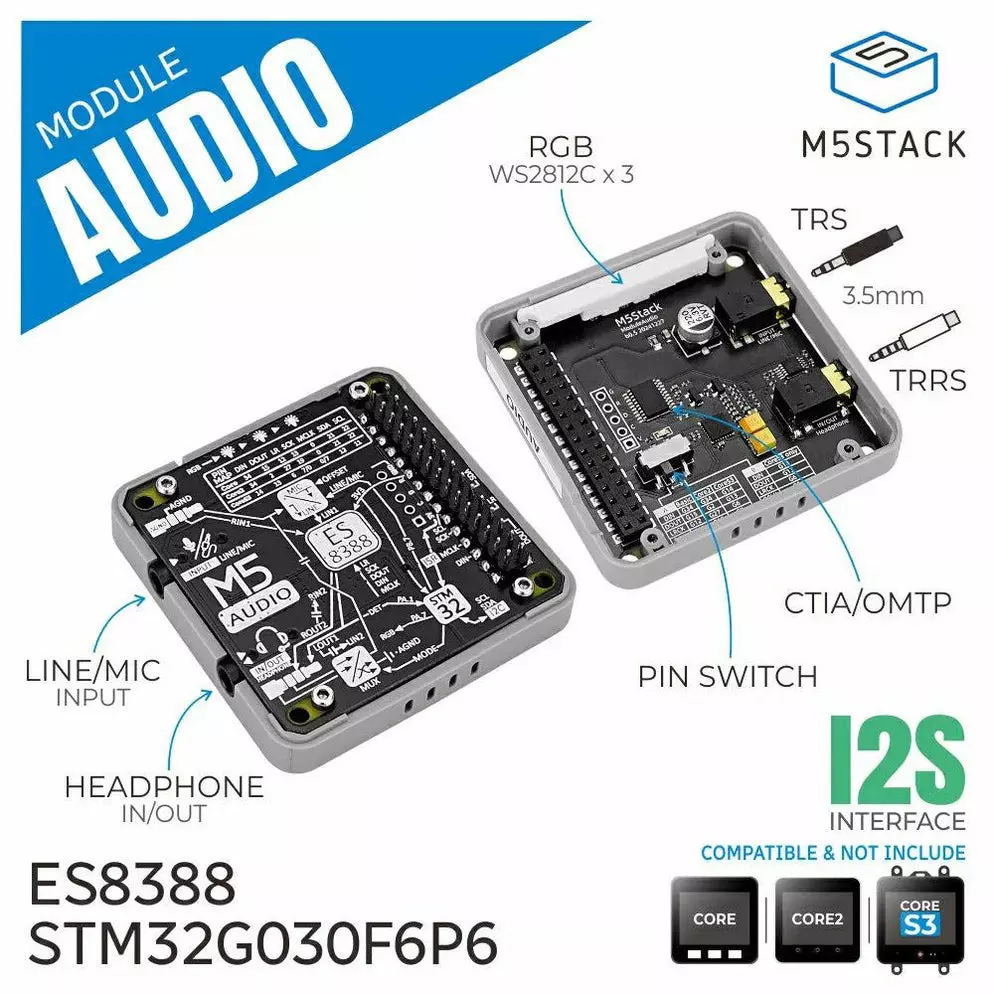

| Type of Product | M5Stack Audio Module (STM32G030) |
| Model No | M5STACK-M144 |
| Operating Temperature (c) | 0 to +40℃ |
| Processor | MCU: STM32G030F6P6 @ <sup>I2C</sup> address 0x33 |
Type of Product |
M5Stack Audio Module (STM32G030) |
Model No |
M5STACK-M144 |
Operating Temperature (c) |
0 to +40℃ |
Processor |
MCU: STM32G030F6P6 @ <sup>I2C</sup> address 0x33 |
Monotaro ID |
68555728 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Standard |
Headset standard: CTIA/OMTP |
Name of Manufacturer/Packer/Importer |
M5Stack |
Mass (g) |
12.8 |
Audio |
2 microphone inputs, 1 stereo headphone output |
Standby Current |
8.58mA |
Dimension (mm) |
54.0x54.0x13.1 |
LED |
WS2812C_2020x3 |
Audio Codec |
ES8388 @ <sup>I2C</sup> Address: 0x10 |
Operating current (mA) |
23.53 |
Headphone Jack |
TRS (microphone)x1, TRRS (microphone + headphones)x1 |
