| Type of Product | ATOMIC Battery Base |
| Model No | M5STACK-A151 |
| Monotaro ID | 68572257 |
| Country of Origin | Japan |
Type of Product |

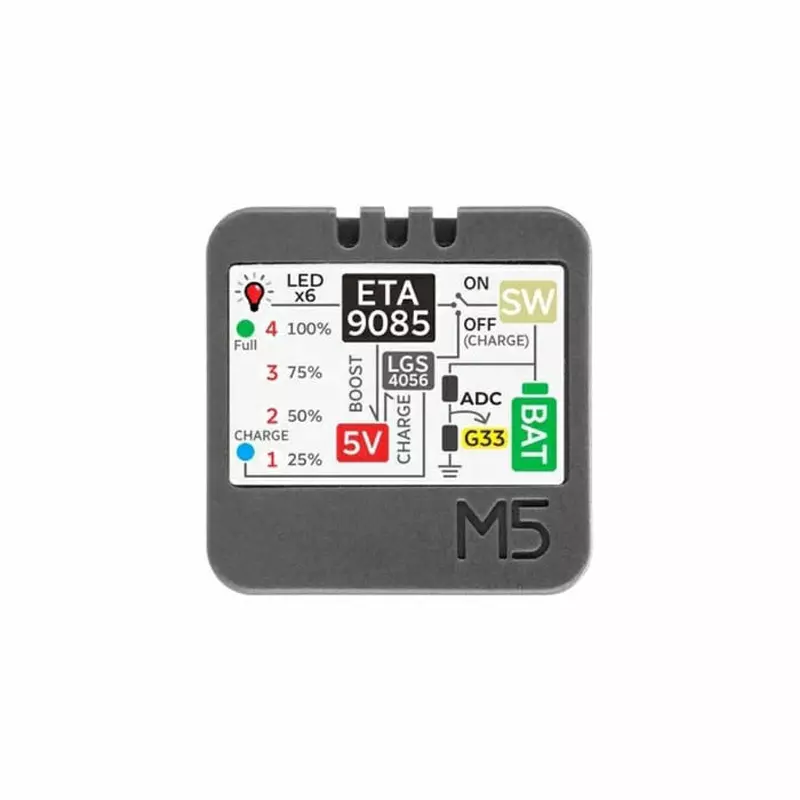

ATOMIC Battery Base |
Model No |
M5STACK-A151 |
Monotaro ID |
68572257 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Output Current |
5 V/300 mA(max) |
Name of Manufacturer/Packer/Importer |
M5Stack |
Current (mA) |
Charging current: 223mA (when 5V is supplied to the base), Standby current: 2.55 μA (when the switch is off) |
Dimension (mm) |
24x24x24 |
Indicator |
LED indicator: 4 red LEDs, charging indicator: blue (charging), green (fully charged) |
Battery Capacity |
200 mAh |
Battery Voltage (V) |
3.7 |
Suitable CPU |
Charge/discharge management chip: LGS4056HDA |
Converter Type |
DC/DC converter: ETA9085E10 |
