M5Stack Roller Unit 40x40x40 mm Dimension, M5STACK-U182

Name: M5Stack Roller Unit 40x40x40 mm Dimension, M5STACK-U182
Brand: M5Stack
SKU: IND.ELE.245356456
Price: 12979 INR
Availability: InStock

Visit the M5Stack Store

EMI starts at ₹1153/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Roller485 unit (STM32) with BLDC motor
Model No	M5STACK-U182
Display	0.66 inch OLED display, resolution: 64x48 pixels, SPI communication
Operating Temperature	0 to +40℃

More M5Stack Electronic Modules products More Electronic Modules products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Roller485 unit (STM32) with BLDC motor
Model No	M5STACK-U182
Display	0.66 inch OLED display, resolution: 64x48 pixels, SPI communication
Operating Temperature	0 to +40℃
Power Supply	[Motor] RS-485 (VH3.96-4P interface): 6V to 16V power supply, Grove port: DC5V power supply, Slip ring Grove port (rotating connector): DC5V power supply
Monotaro ID	68572370
Country of Origin	Japan
Import Country	Direct Import from Japan

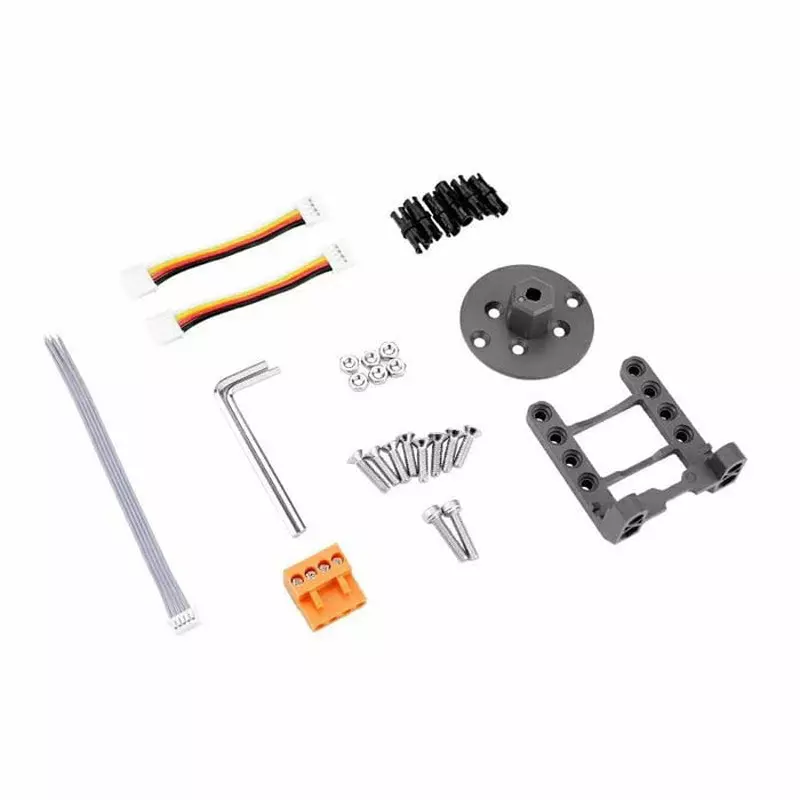

Set Contents	Roller485 unitx1, HT3.96R-4P plugx1, HY2.0-4P Grove cable (5cm)x1, friction pinsx6, flangex1, bracketx1, hexagonal wrench (2.5mm)x1, hexagonal wrench (2mm)x1, M3 nutsx6, hexagonal socket cap screws M3x14mmx2, hexagonal socket flat head screws M3x14mmx4, hexagonal socket flat head screws M3x12mmx2, hexagonal socket flat head screws M3x5mmx4, 5P debug cablex1
Specifications	[MCU] STM32G431CBU6 (Arm Cortex-M4, 170MHz), 128KB flash memory, 32KB SRAM [Driver chip] DRV8311HRRWR
Name of Manufacturer/Packer/Importer	M5Stack
Standby Current	Grove port: DC5V power supply/70mA, RS-485 (VH3.96-4P interface): DC16V power supply/32mA
Sensor	[Angle] TLI5012BE1000
Dimension (mm)	40x40x40
LED	【RGB】WS2812-2020 x2
Communication Interface	PWR-485 (HT3.96-4P interface), I2C (0x64)
Motor Type	D3504 (200KV brushless motor): diameter 41 mm
Noise Level	48dB
Performance	[Load: 200g] Motor rotation speed: 1400 rpm, Current: DC16V/601mA, DC16V/601mA; [Load: 500g] Motor rotation speed: 560 rpm, Current: DC16V/918mA, DC16V/918mA; [No load] DC16V/78mA
Output Torque (N.m)	Grove port/DC5V power supply: 0.021Nm/0.2kgf.cm@350mA, RS-485 (VH3.96-4P interface) 16V power supply: 0.065Nm/0.66kgf.cm@927mA
