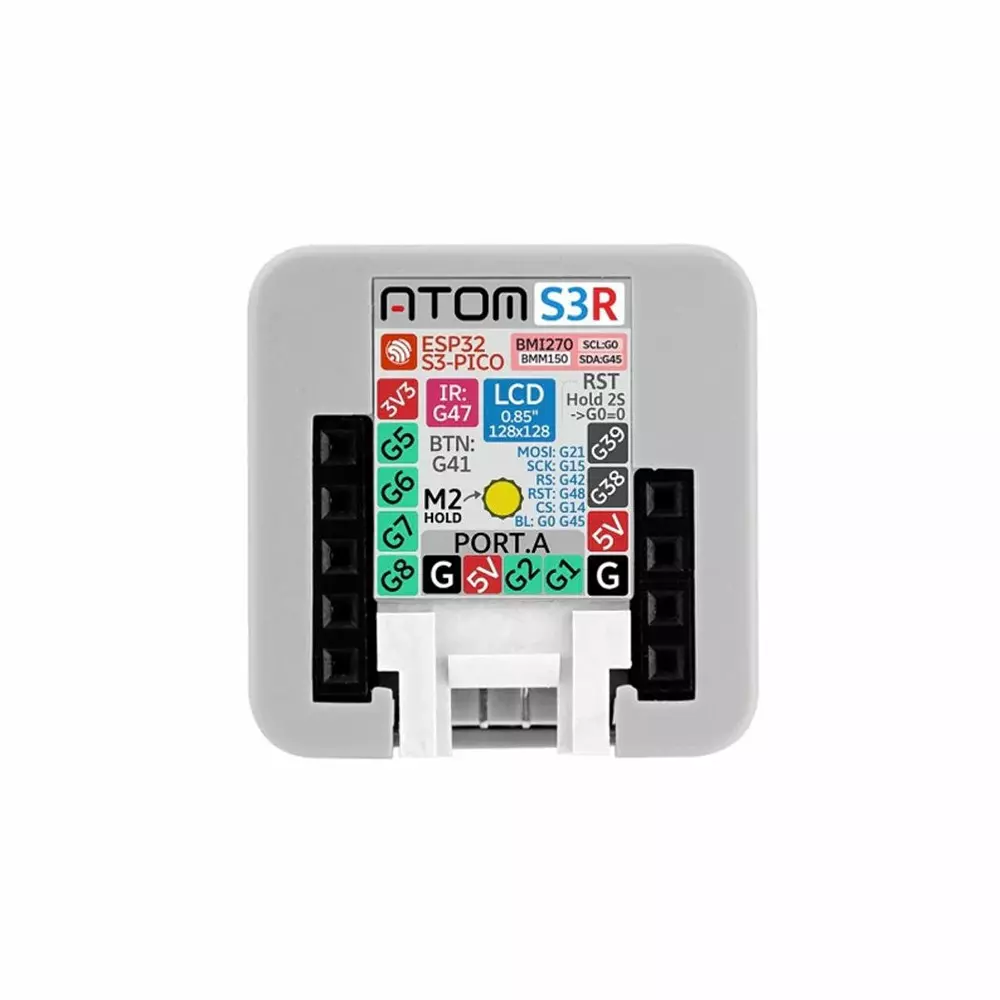

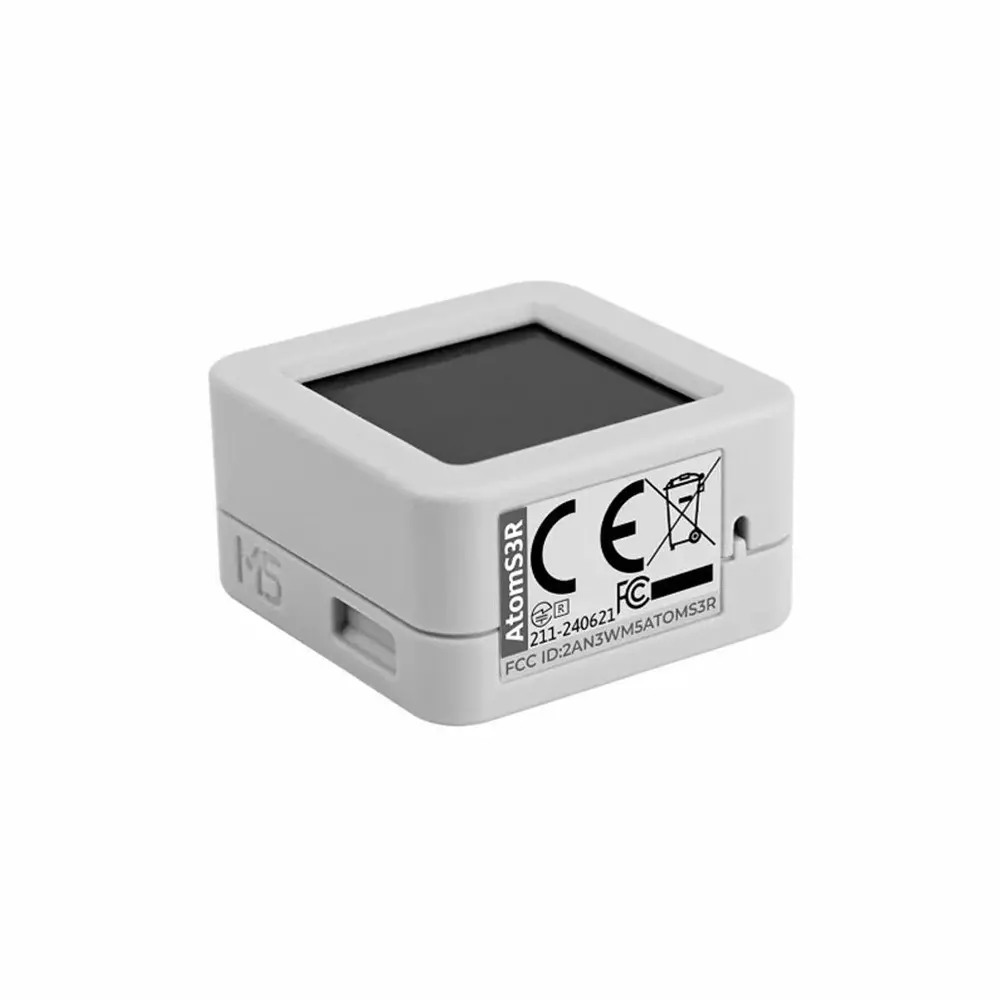

| Type of Product | ATOMS3R Development Kit (with 8MB PSRAM) |
| Model No | M5STACK-C126 |
| Interface | 【IO】G5/G6/G7/G8/G38/G39 |
| Operating Temperature | 0℃ to 40℃ |
Type of Product |
ATOMS3R Development Kit (with 8MB PSRAM) |
Model No |
M5STACK-C126 |
Interface |
【IO】G5/G6/G7/G8/G38/G39 |
Operating Temperature |
0℃ to 40℃ |
Resolution |
【LCD】128(H)x128(V) RGB |
Power Supply |
Type-C |
Monotaro ID |
68572467 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Specifications |
【MCU】ESP32-S3-PICO-1-N8R8【TFT Driver】GC9107【IMU】BMI270【COMPASS】BMM150【LCD】N085-1212TBWIG06-C08 |
Name of Manufacturer/Packer/Importer |
M5Stack |
Protocol |
[LCD communication] SPI |
Mass (g) |
6.7 |
Dimension (mm) |
24x24x12.0 |
Memory |
8MB PSRAM, 8MB Flash |
Power Supply Voltage (V) |
5(USB Type-C) |
Output Voltage (V) |
3.3 |
