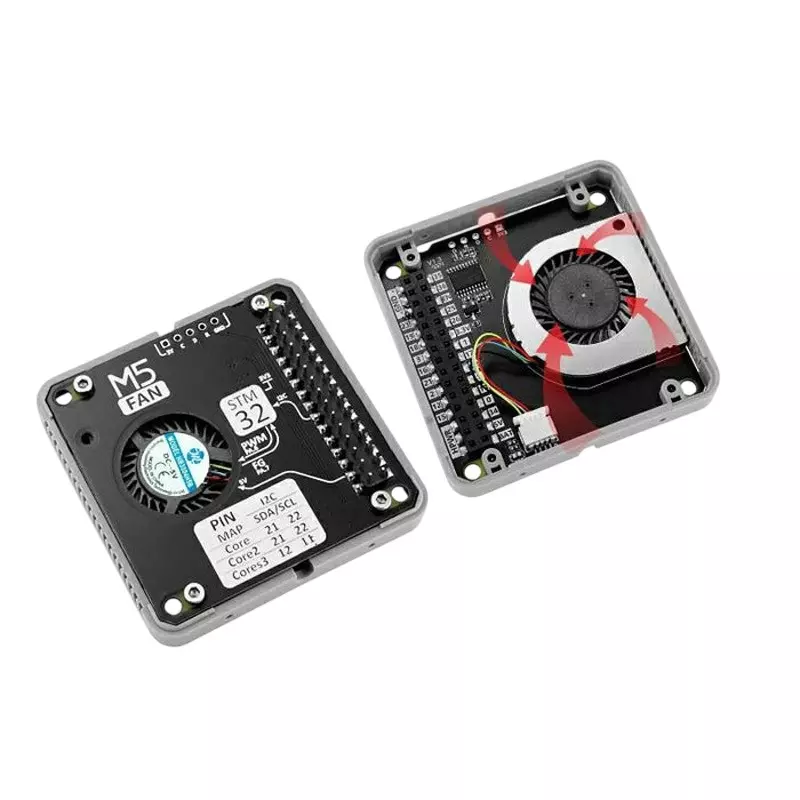

| Type of Product | M5Stack Fan Module v1.1 (STM32F030) |
| Model No | M5STACK-M013-V11 |
| Operating Temperature (c) | 0 to +40℃ |
| Monotaro ID | 68555755 |
Type of Product |
M5Stack Fan Module v1.1 (STM32F030) |
Model No |
M5STACK-M013-V11 |
Operating Temperature (c) |
0 to +40℃ |
Monotaro ID |
68555755 |
Country of Origin |
Japan |
Power Consumption |
(Power consumption during operation) PWM 20%: DC 5 V@13.52 mA/PWM 60%: DC 5 V@56.19 mA/PWM 100%: DC 5 V@125.14 mA (Power consumption during standby) DC 5 V@ 503.49 μA |
Import Country |
Direct Import from Japan |
Control |
Fan speed control: Speed reading/PWM control |
Name of Manufacturer/Packer/Importer |
M5Stack |
Mass (g) |
14.9 |
voltage rating (V) |
5 |
Dimension (mm) |
54x54x13.1 |
Protective Function |
Stall protection function supported |
Noise Level |
(Ambient noise 40.8dB) PWM 20%: 48.6dB / PWM 60%: 64.5dB / PWM 100%: 70.6dB |
Controller |
STM32F030F4P6 |
Rotation Speed (min-1[rpm]) |
11500±10% |
Maximum Airflow |
1.23 cfm |
Communication Method |
I<sup>2</sup>C (0x18) |
