| Type of Product | GNSS module with barometric pressure/IMU/geomagnetic sensor for M5Stack |
| Model No | M5STACK-M135 |
| Monotaro ID | 68556419 |
| Country of Origin | Japan |
Type of Product |
GNSS module with barometric pressure/IMU/geomagnetic sensor for M5Stack |
Model No |
M5STACK-M135 |
Monotaro ID |
68556419 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Set Contents |

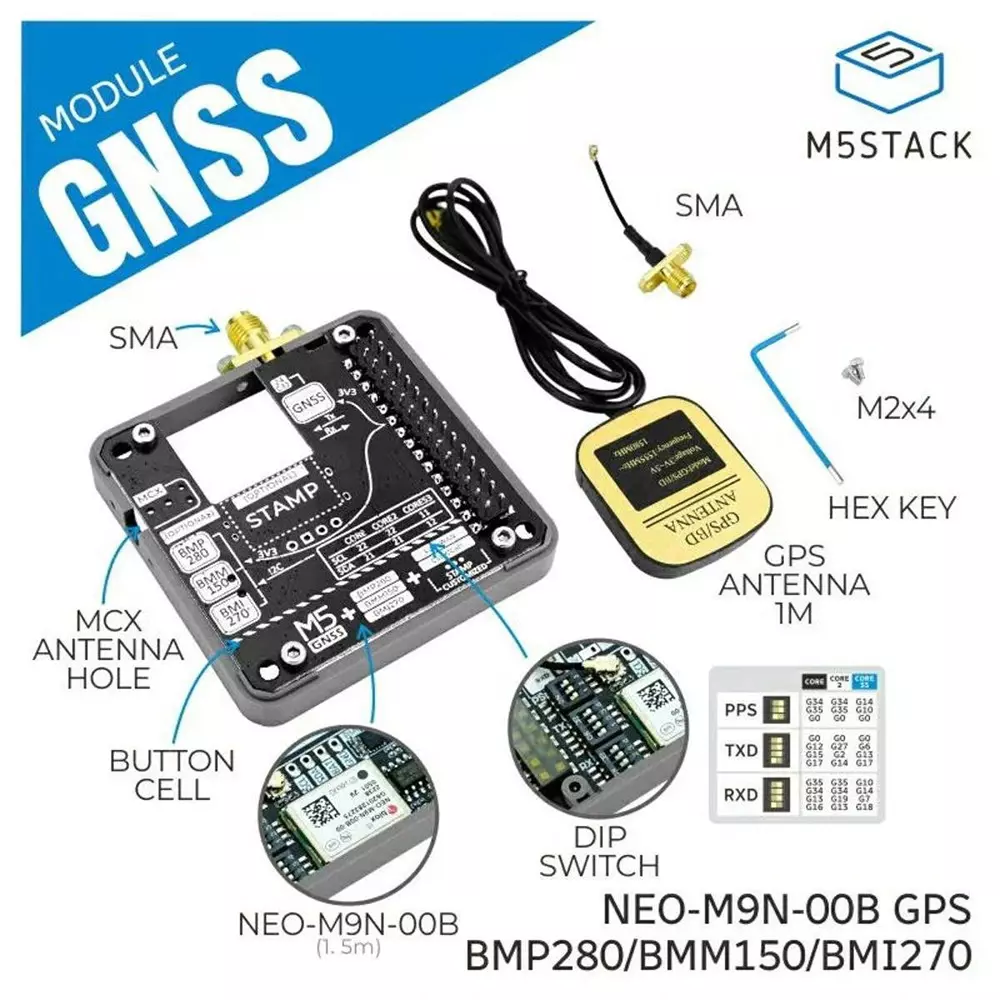

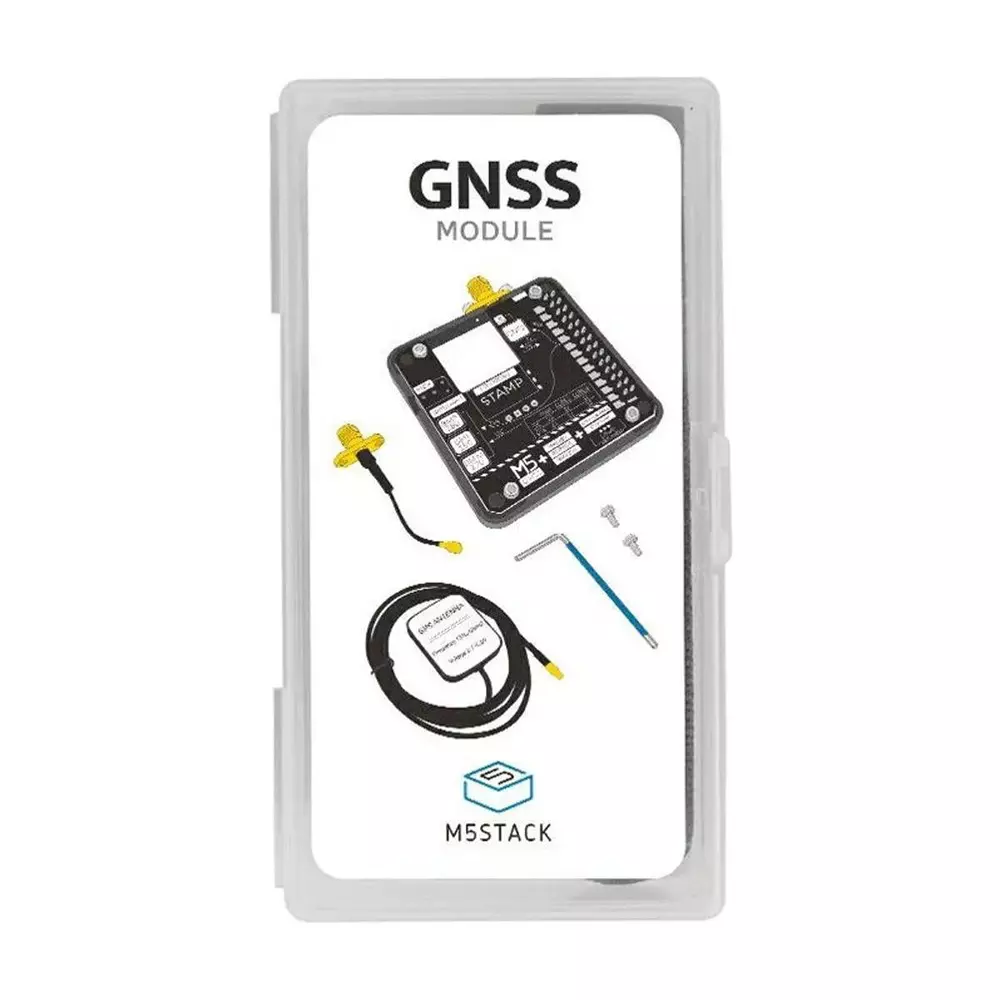

GNSS modulex1, external GPS/BD antenna (1m)x1, antenna feederx1, M2x4 screwx1, 1.5mm hex wrenchx1, HY2.0-4P cable (20cm)x1 |
Specifications |
GNSS chip: NEO-M9N-00B, accuracy: 1.5m (maximum altitude: 80,000m, maximum G: ≦4, maximum speed: 500m/s), number of channels: 92, dynamic accuracy: 0.3deg, maximum update rate: 25Hz |
Name of Manufacturer/Packer/Importer |
M5Stack |
Mass (g) |
14.4 |
Sensor |
6-axis attitude: BMI270, accelerometer range: ±2g/±4g/±8g/±16g, gyroscope processing range: ±125dps/±250dps/±500dps/±1000dps/±2000dps; 3-axis geomagnetic: BMM150 (magnetic field resolution: 0.3μT); pressure: BMP280 (measurement range: 300-1100hPa) |
Dimension (mm) |
54x54x13.1 |
Conform to |
[Satellite] GPS/QZSS, GLONASS, Galileo, BeiDou |
