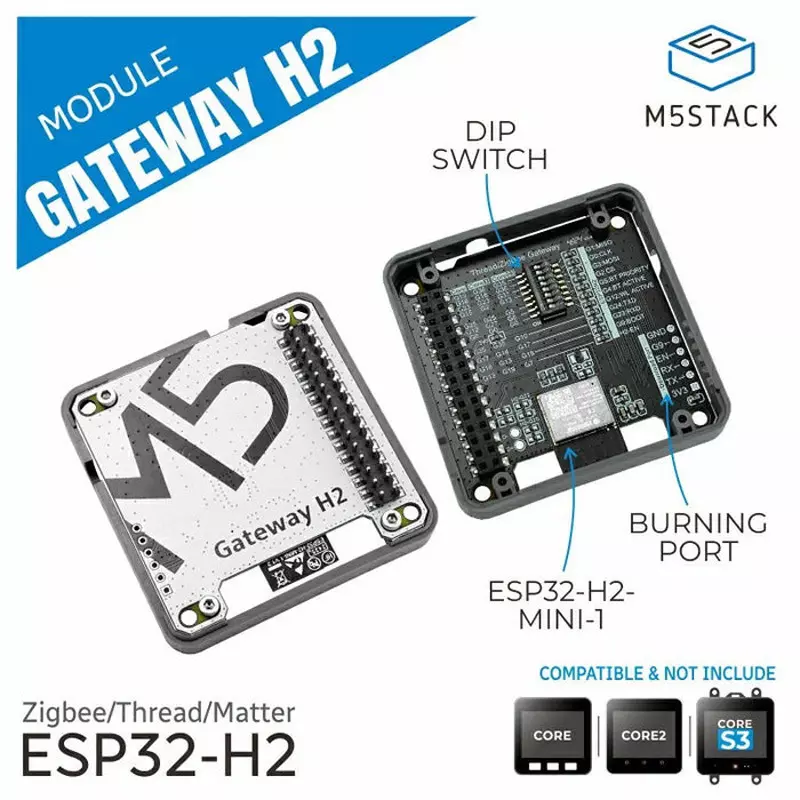

| Type of Product | Module Gateway H2 |
| Model No | M5STACK-M141 |
| Operating Temperature | 0 to 40℃ |
| Monotaro ID | 68556306 |
Type of Product |
Module Gateway H2 |
Model No |
M5STACK-M141 |
Operating Temperature |
0 to 40℃ |
Monotaro ID |
68556306 |
Country of Origin |
Japan |
Power Consumption |
[Standby] DC 3.3V/8.55mA [Operating] DC 3.3V/18.35mA (Thread networking) |
Import Country |
Direct Import from Japan |
Specifications |
[Development environment] UIFlow2.0, Arduino IDE, ESP-IDF [SoC] ESP32-H2-MINI-1 (32-bit single-core RISC-V processor, maximum 96MHz) |
Name of Manufacturer/Packer/Importer |
M5Stack |
Mass (g) |
11.8 |
Switch Type |
[DIP] 8-position DIP switch (UART/SPI switching & wireless function control) |
Dimension (mm) |
54.0x54.0x13.1 |
Memory |
[Flash] 2MB |
Antenna |
On-board PCB antenna |
Supported Protocols |
IEEE802.15.4 (including Zigbee 3.0, Thread 1.3, and Matter) [Wireless] Zigbee, Thread, and Matter |
Wireless Standard |
IEEE802.15.4 |
