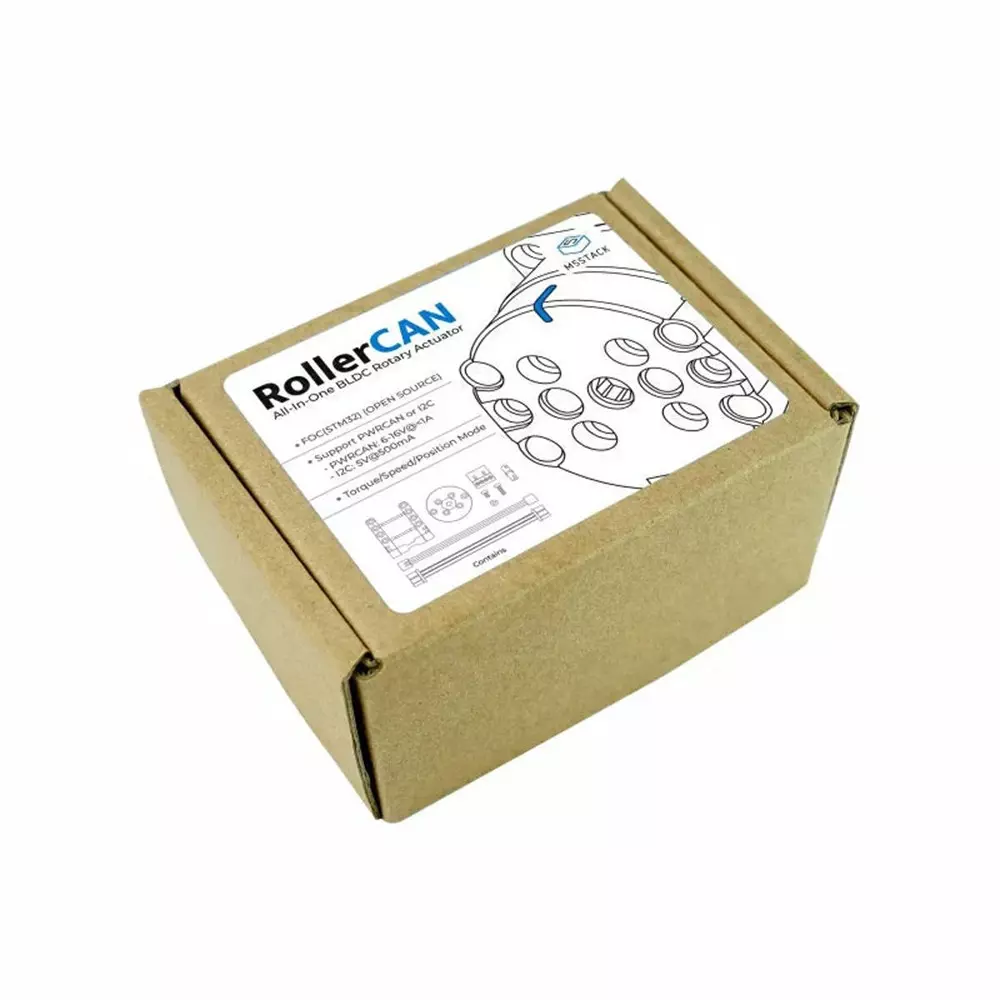

M5Stack Rollercan Unit 40x40x40 mm Dimension, M5STACK-U188

Name: M5Stack Rollercan Unit 40x40x40 mm Dimension, M5STACK-U188
Brand: M5Stack
SKU: IND.ELE.845356048
Price: 14159 INR
Availability: InStock

Visit the M5Stack Store

EMI starts at ₹1258/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	BLDC motor mounted RollerCAN unit (STM32)
Model No	M5STACK-U188
Display	0.66 inch OLED display, resolution: 64x48, SPI communication
Output	[Slip ring] DC5V/300mA

More M5Stack Electronic Modules products More Electronic Modules products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	BLDC motor mounted RollerCAN unit (STM32)
Model No	M5STACK-U188
Display	0.66 inch OLED display, resolution: 64x48, SPI communication
Output	[Slip ring] DC5V/300mA
Operating Temperature	0 to +40℃
Power Supply	[Motor] CAN (XT30): 6 to 16V power supply, Grove port: DC 5V power supply, Slip ring Grove port (rotating connector): DC 5V power supply
Monotaro ID	68572485
Country of Origin	Japan
Import Country	Direct Import from Japan

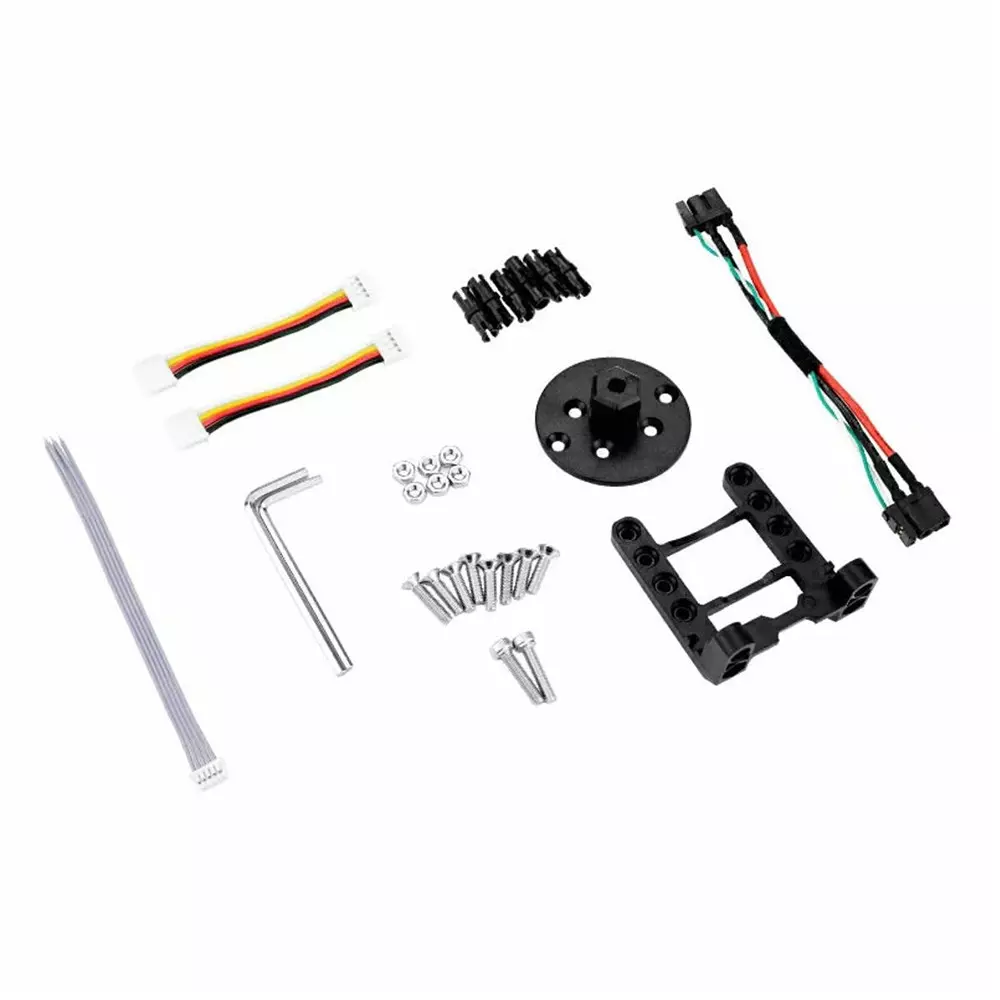

Set Contents	RollerCAN unitx1, PwrCAN cable (10 cm)x1, HY2.0-4P Grove cable (5 cm)x2, friction pinsx6, flangex1, bracketx1, hexagonal wrench (2.5 mm)x1, hexagonal wrench (2 mm)x1, M3 nutsx6, hexagonal socket head bolts M3x14 mmx2, hexagonal socket head countersunk bolts M3x14 mmx4, hexagonal socket head countersunk bolts M3x12 mmx4, 5P debug cable (1.25 mm pitch, length 100 mm)x1
Specifications	[MCU] STM32G431CBU6 (Arm Cortex-M4, 170MHz), 128KB flash memory, 32KB SRAM [Driver chip] DRV8311HRRWR
Name of Manufacturer/Packer/Importer	M5Stack
Mass (g)	84.4
Standby Current	Grove port: DC5V power supply: 70mA, CAN (XT30): DC16V power supply: 32mA
Sensor	[Angle] TLI5012BE1000
Dimension (mm)	40x40x40
LED	【RGB】WS2812-2020 x2
Communication Interface	CAN(XT30) x2, I2C(0x64)
Motor Type	D3504 (200KV brushless motor): diameter 41 mm
Noise Level	48dB
Performance	[Load: 50g] Motor speed: 2100 rpm, Current: DC16V/225mA, [Load: 200g] Motor speed: 1400 rpm, Current: DC16V/601mA, [Load: 500g] Motor speed: 560 rpm, Current: DC16V/918mA (max. load), [No load] DC16V/78mA
Output Torque (N.m)	Grove port DC5V power: 0.021 Nm/0.2 kgf.cm@350mA, CAN(XT30)16 V power: 0.065 Nm/0.66 kgf.cm@927mA
