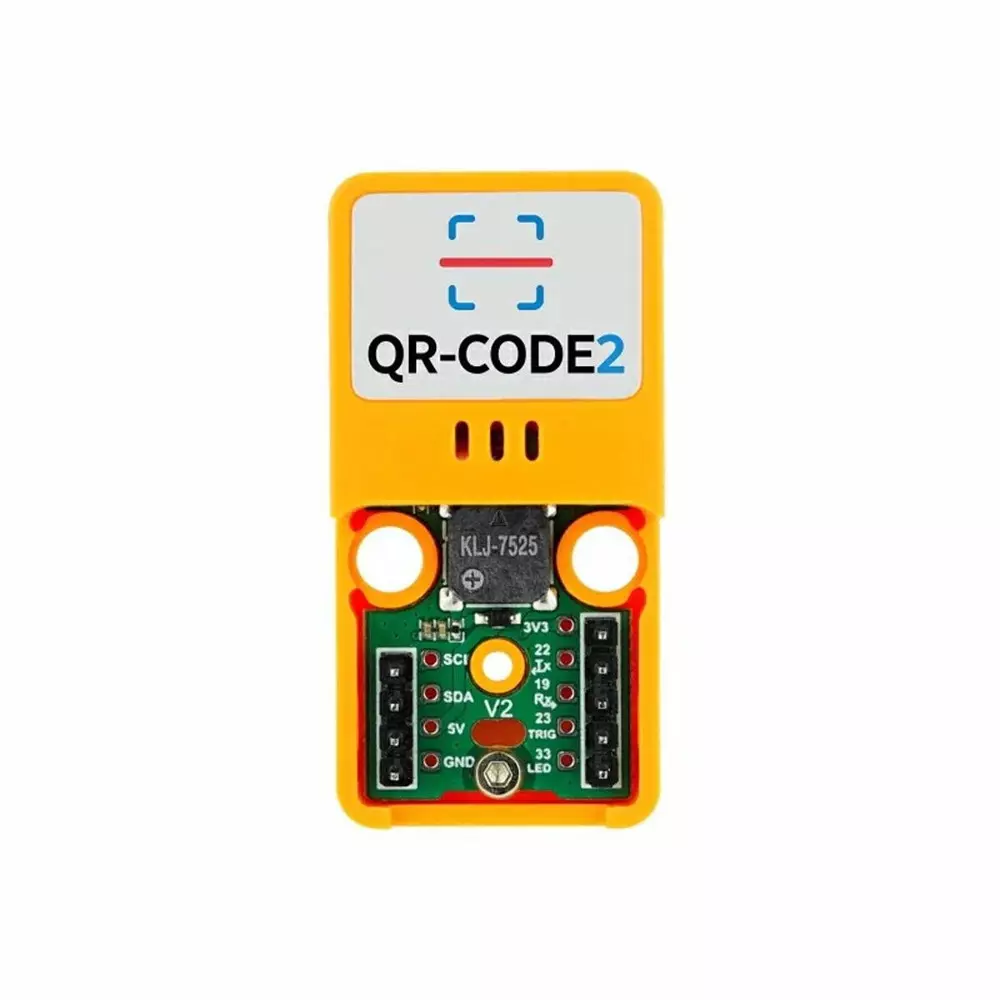

| Type of Product | ATOMIC Barcode/QR Code Scanner Base 2 |
| Model No | M5STACK-A133-B |
| Operating Temperature (c) | 0 to +40℃ |
| Monotaro ID | 68572327 |
Type of Product |
ATOMIC Barcode/QR Code Scanner Base 2 |
Model No |
M5STACK-A133-B |
Operating Temperature (c) |
0 to +40℃ |
Monotaro ID |
68572327 |
Country of Origin |
Japan |
Power Consumption |
DC5V/116.57mA (standby, without ATOM Lite), DC5V/174.18mA (operating, with ATOM Lite) |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
M5Stack |
Accuracy |
[Recognition] 5mil or more |
Mass (g) |
12 |
Viewing Angle |
Horizontal: 34°, Vertical: 28° |
Sensor |
640x480 CMOS module |
Dimension (mm) |
48x24x17.5 |
Indicator |
[Focus] Green LED |
Case Material |
Plastic (polycarbonate) |
Lighting |
White LED |
Offset Angle |
[Scan] Rotation: 360, Tilt: ±55, Skew: ±55° |
Communication Interface |
UART@115200 |
Contrast |
[Printing] 20% or more |
Corresponding Code |
[1D Code] Code39/Code93/Code 128/EAN-13/EAN-8/UPC-A/UPC-E/Interleaved 2 of 5 [2D Code] PDF417/QR Code/Data Matrix |
