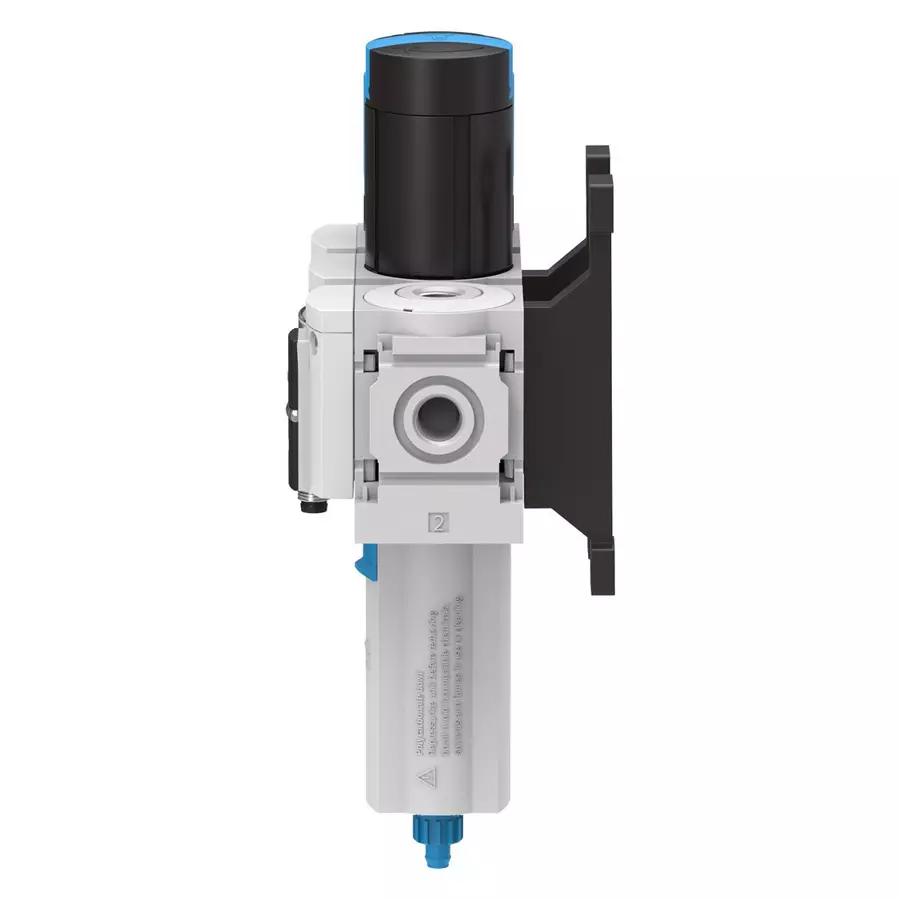

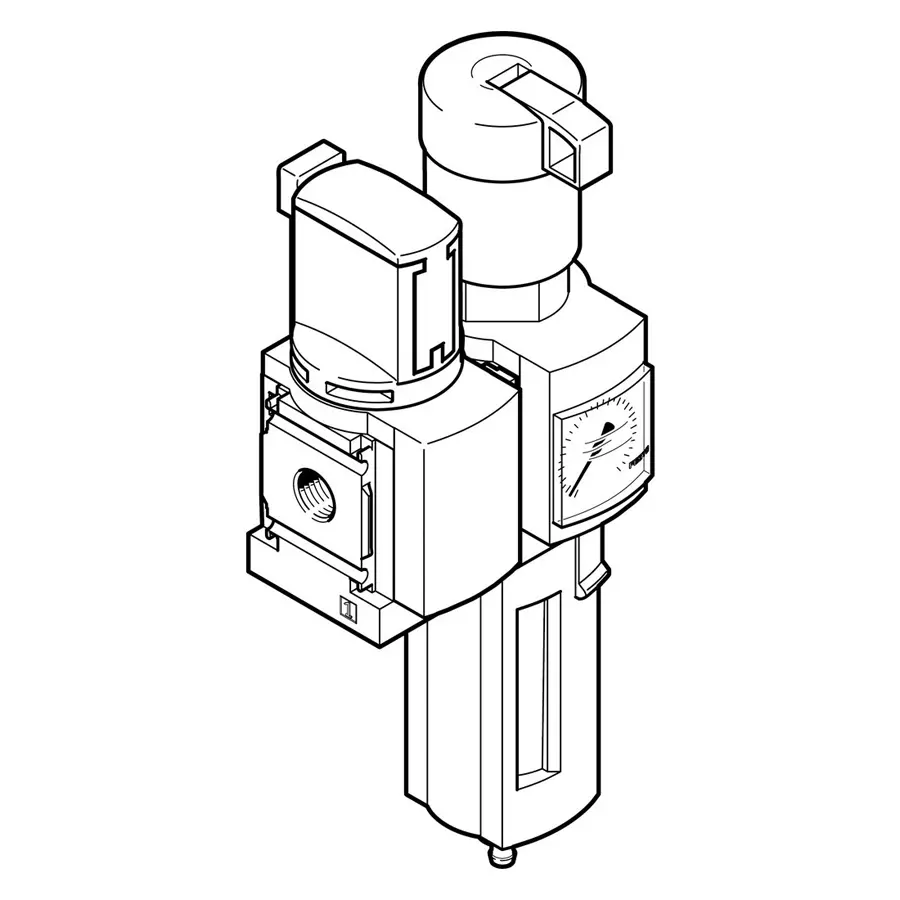

| Type of Product | Service Unit Combinations |
| Model No | MSB4-1/4:C3:J120-WP |
| Series | MS Series |
| Port size | G1/4 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Service Unit Combinations |
Model No |
MSB4-1/4:C3:J120-WP |
Series |
MS Series |
Port size |
G1/4 |
Weight |
1.3 Kg |
Type |
MSB4/MSB6 |
Operating Pressure |
1.5-14 bar |
Size |
4 |
Bowl Guard |
Plastic Bowl Guard |
Mounting position |
Vertical +/- 5° |
Ambient Temperature |
-10-60 °C |
Part No |
8042668 |
Country of Origin |
India |
Grade Of Filteration |
40 µm |
Pressure Regulation Range |
0.5-7 bar |
Housing Material |
Die-cast aluminum |
Used For |
In the food industry, See supplementary material information |
Pressure Gauge |
With Pressure Gauge |
Symbol |
991755 |
Controller Function Type |
Outlet pressure constant With primary pressure compensation, secondary exhausting, return flow function |
Connection 1 |
G1/4 |
Connection 2 |
G1/4 |
Standard nominal flow rate |
1150 L/min |
Actuator Type |
Rotary knob with detent can be closed with accessories |
Operating Medium |
Compressed air as per ISO 8573-1:2010 [7:4:4] |
Structure |
Shut off valve, Filter regulator with pressure gauge |
Storage Temperature |
-10-60 °C |
Return Type |
Non Returnable |
Scale Format |
Outer Scale in MPa |
Operating Type |
Manually Rotating |
Name of Manufacturer/Packer/Importer |
Festo India Private Limited |
