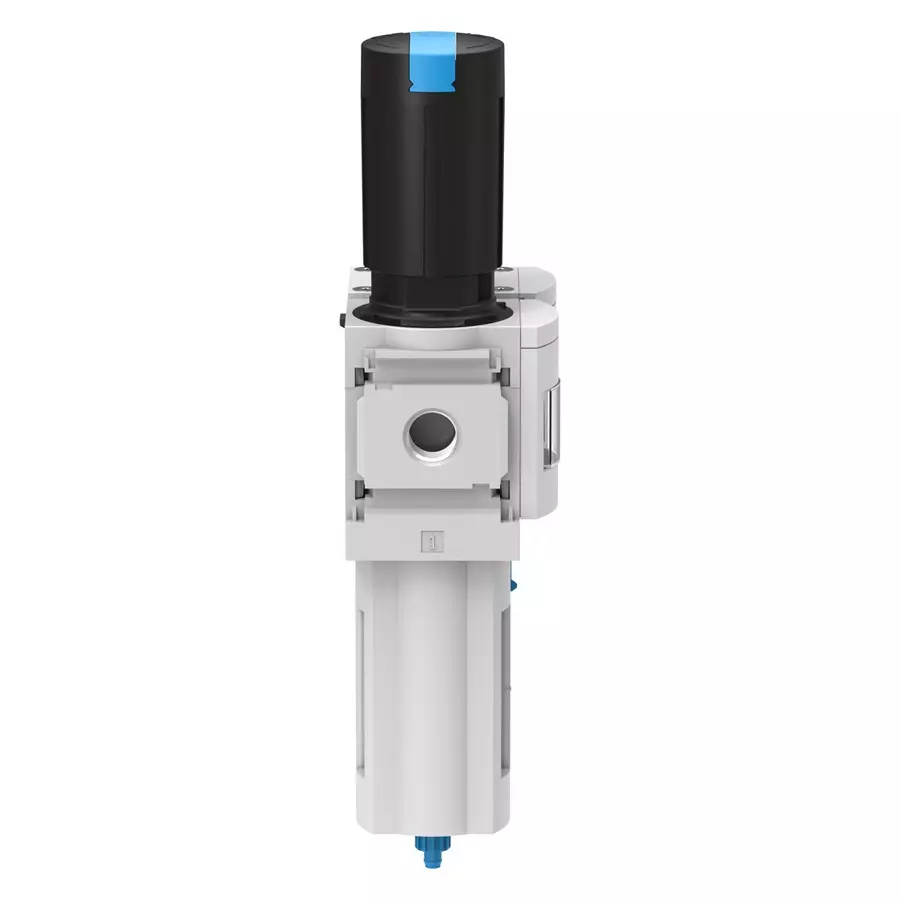

| Type of Product | Service Unit Combinations |
| Model No | MSB6-1/2-FRC1:J5M1 |
| Series | MS Series |
| Port size | G1/2 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Service Unit Combinations |
Model No |
MSB6-1/2-FRC1:J5M1 |
Series |
MS Series |
Port size |
G1/2 |
Weight |
1.495 Kg |
Type |
MSB4/MSB6-FRC |
Operating Pressure |
1.5-20 bar |
Size |
6 |
Bowl Guard |
Plastic Bowl Guard |
Mounting position |
Vertical +/- 5° |
Ambient Temperature |
-10-60 °C |
Part No |
530230 |
Country of Origin |
India |
Grade Of Filteration |
40 µm |
Pressure Regulation Range |
0.3-7 bar |
Housing Material |
Die-cast aluminum |
Used For |
In the food industry, See supplementary material information |
Pressure Gauge |
With Pressure Gauge |
Symbol |
991761 |
Controller Function Type |
Outlet pressure constant With primary pressure compensation, secondary exhausting, return flow function |
Connection 1 |
G1/2 |
Connection 2 |
G1/2 |
Standard nominal flow rate |
4800 L/min |
Actuator Type |
Rotary knob with integrated lock |
Operating Medium |
Compressed air as per ISO 8573-1:2010 [-:4:-] Inert gas |
Structure |
Filter regulator with pressure gauge Proportional standard oil mist lubricator |
Storage Temperature |
-10-60 °C |
Return Type |
Non Returnable |
Scale Format |
Outer Scale in Bar and Inner Scale in PSI |
Operating Type |
Manually Rotating |
Name of Manufacturer/Packer/Importer |
Festo India Private Limited |
