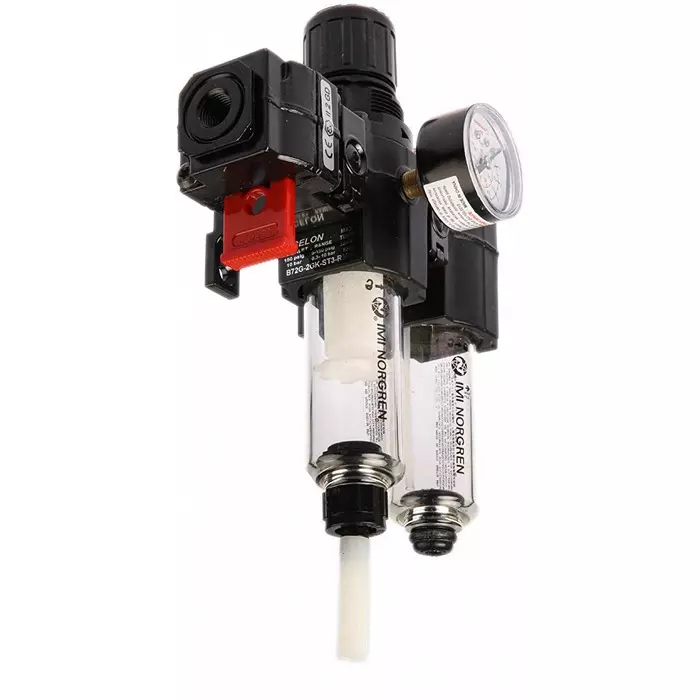

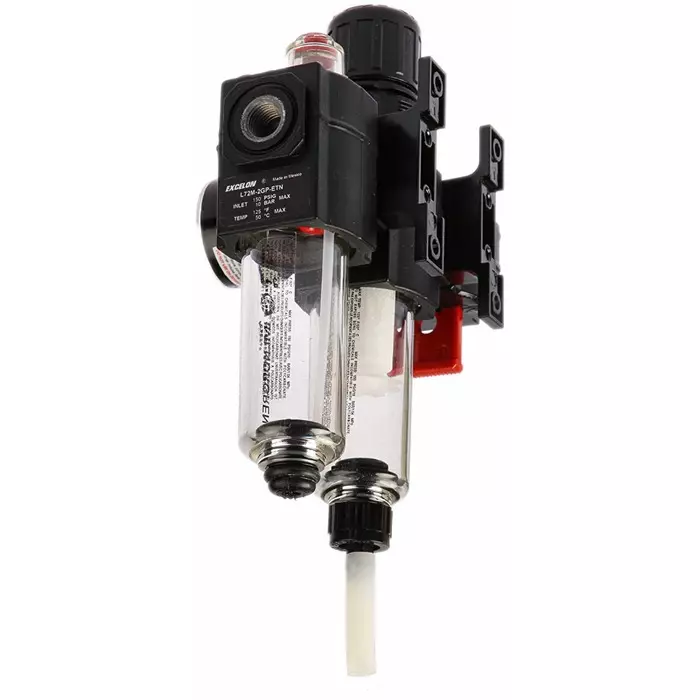

Type of Product | Pneumatic Air Preparation |
Series | BL72 |
Drain Type | Automatic |
Bowl material | Polycarbonate |
Type of Product |
Pneumatic Air Preparation |
Series |
BL72 |
Drain Type |
Automatic |
Bowl material |
Polycarbonate |
Country of Origin |
Germany |
Maximum Operating Pressure |
10 bar |
Pressure Gauge Port size |
Rc 1/8 |
Pack of |
1 Pc |
Port Connections |
G 1/4 |
Pressure Setting Range |
0.3 to 10 bar |
Minimum Operating Pressure |
0.3 bar |
Name of Manufacturer/Packer/Importer |
Norgren |
Product Code |
2390872 |
Maximum Ambient Operating Temperature |
+50°C |
Ambient Operating Temperature Range |
-20 to +50°C |
Minimum Ambient Operating Temperature |
-20°C |
Port Connection Thread Size |
1/4 inch |
Port Connection Thread Standard |
G |
Pressure Gauge Port Thread Size |
1/8 inch |
Pressure Gauge Port Thread Standard |
Rc |

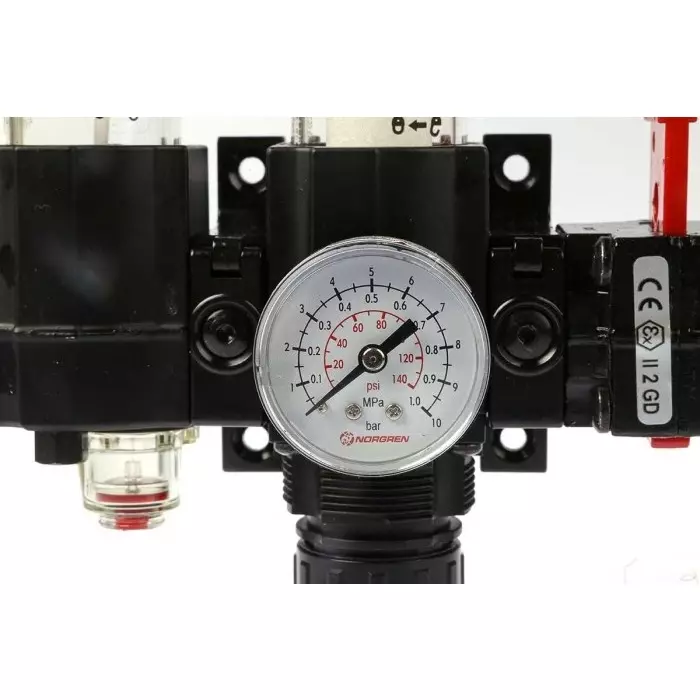

Integrated Pressure Gauge |
With Pressure Gauge |
Manufacturer Part Number |
BL72-201G |
Filtration Size |
40±5 m |
Minimum Pressure Setting |
0.3 bar |
Maximum Pressure Setting |
10 bar |
