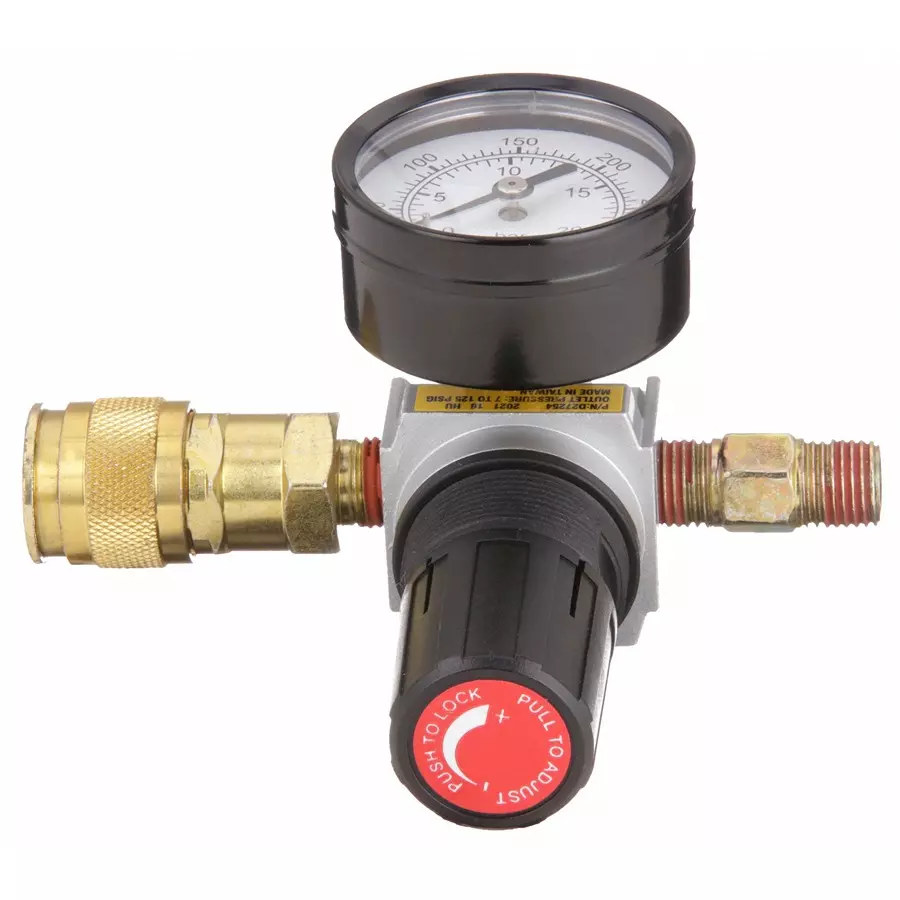

| Type of Product | Compressed Air Regulator |
| Maximum Flow Rate | 45 cfm |
| Part No | 39DK93 |
| Country of Origin | Taiwan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Compressed Air Regulator |
Maximum Flow Rate |
45 cfm |
Part No |
39DK93 |
Country of Origin |
Taiwan |
Maximum Operating Pressure |
200 psi |
Fluid Type |
Air |
Pressure Gauge Port size |
1/8 inch |
Body Material |
Zinc |
UNSPSC Code |
27131603 |
Overall Height |
3-3/8 Inch |
Overall Width |
4 inch |
Maximum Operating Temperature |
175 °F |
Port Type |
NPT |
Pressure Gauge |
Yes |
Item Code |
39DK93 |
No. of Outlets |
1 |
No. of Inlets |
1 |
Adjustment Mechanism |
Knob |
Outlet Type |
NPT |
Air Inlet Size |
1/4 inch |
Includes |
Gauge Quick Coupler |
Substance Type |
Air |
Inlet Type |
NPT |
Overall Depth |
10.16 cm |
Maximum Regulated Pressure |
125 psi |
Minimum Pressure |
5 psi |
Adjustment Location |
Top |
Style |
Main Line |
Air Outlet Size |
1/4 inch |
Overall Height (mm) |
85.73 mm |
Overall Width (mm) |
101.6 mm |
Overall Depth (inch) |
4 inch |
