| Model No | UTLRB-24-3-RYG |
| Light Source | Power LED |
| Protection Class | IP64 |
| Material | Globe: Polycarbonate resin |
Model No |
UTLRB-24-3-RYG |
Light Source |
Power LED |
Protection Class |
IP64 |
Material |
Globe: Polycarbonate resin |
Type of Product |

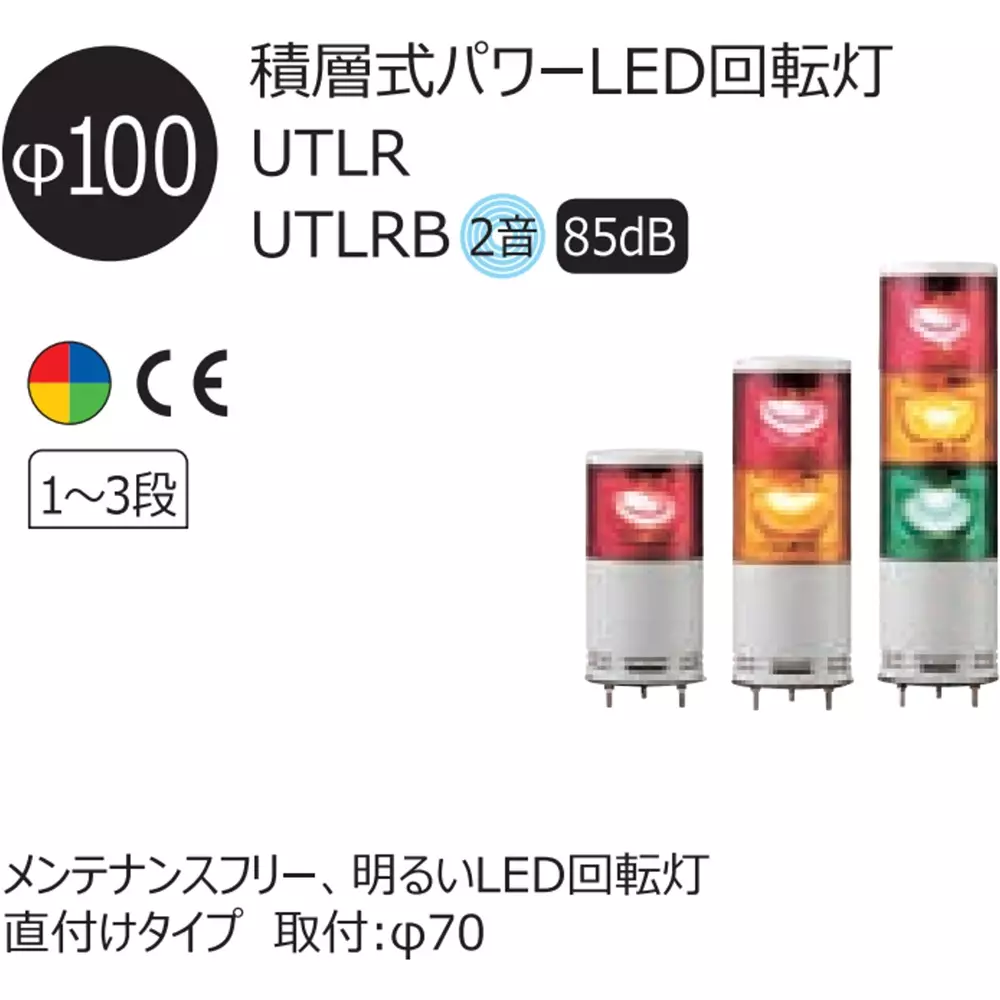

LED Rotating Beacon |
Country of Origin |
Indonesia |
Name of Manufacturer/Packer/Importer |
Arrow & Harmony (Schneider Electric) |
Standard |
CE compliant product |
Import Country |
Direct Import from Japan |
Monotaro ID |
46273913 |
Mass (Kg) |
1.1000000000000001 |
Buzzer Sound |
Continuous / intermittent sound switching |
No. of Tiers |
3 |
Power Consumption (W) |
10 |
Lead Wire Length (mm) |
500 |
Contact Capacity |
Rotating light: 50mA or more above power supply voltage, Buzzer: 100mA or more above power supply voltage |
Sound Pressure Level (dB) |
Up to 85 (1m forward) |
Line Type |
Power line UL1015AWG18x2, signal line UL1007AWG22x6 |
Outer Diameter (Φmm) |
100 |
Operations |
Revolving light |
Interface |
NPN open collector |
Cover Material |
Upper part: alloy resin |
Body Material |
Alloy Resin |
Rated Voltage (V) |
DC 24 |
Mounting |
Direct attachment |
Capacity (A) |
2 |
