| Cell Spacing (mm) | Polarity guide: 22.86 |
| Monotaro ID | 8592823 |
| Suitable Wire | For pressure welding: 1.27 mm pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |

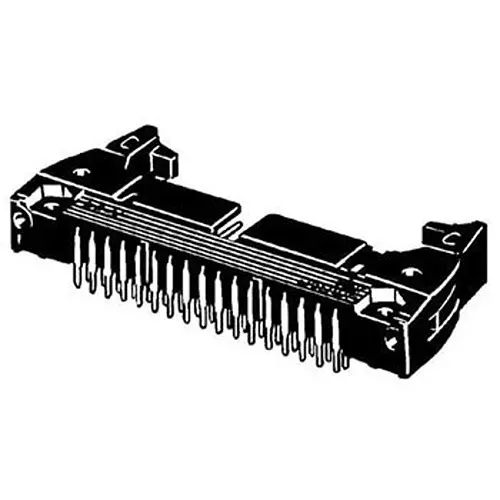

| Shape | MIL type plug (with long hook) |
Cell Spacing (mm) |
Polarity guide: 22.86 |
Monotaro ID |
8592823 |
Suitable Wire |
For pressure welding: 1.27 mm pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |
Shape |
MIL type plug (with long hook) |
Type of Product |
Flat Cable Connector |
No. of Pole |
64-Pole |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Total Insertion Force |
64x1.96N or less |
Withstand Voltage |
500 VAC, 1 min (leakage current 1 mA or less) |
Rated Voltage (V) |
AC300 |
Number of polar slots |
1 |
Standard |
MIL standard (MIL-C-83503) / UL standard (File No. E103202) certified / RoHS compliant |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Shape |
DIP L-shaped terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing at low temperatures) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |

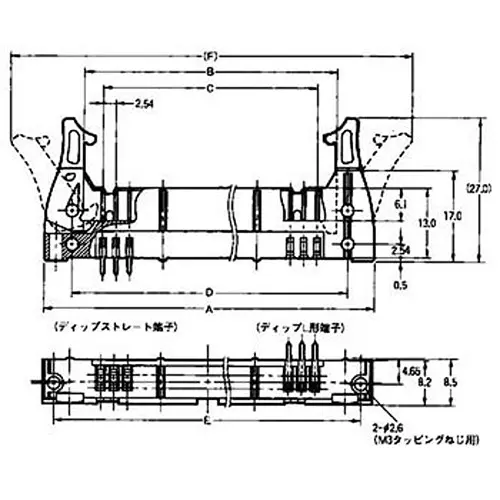

Dimension A (Φmm) |
φ100.6 mm |
Dimension B (Φmm) |
φ86.1 mm |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |
Dimension E (Φmm) |
φ96.5 mm |
Manufacturer Part Number |
XG4A-6434 |
Dimension C |
78.74 mm |
Dimension d |
90.4 mm |
Dimension F (Φmm) |
φ115 mm |
