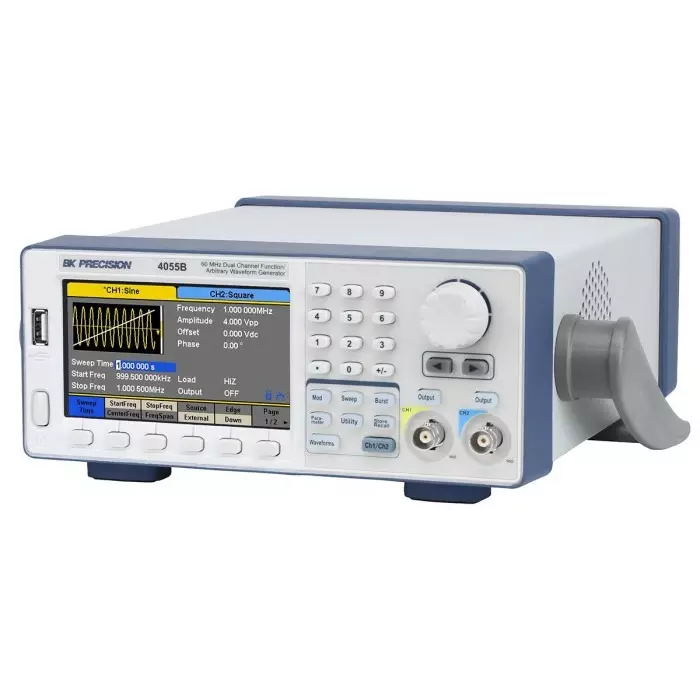

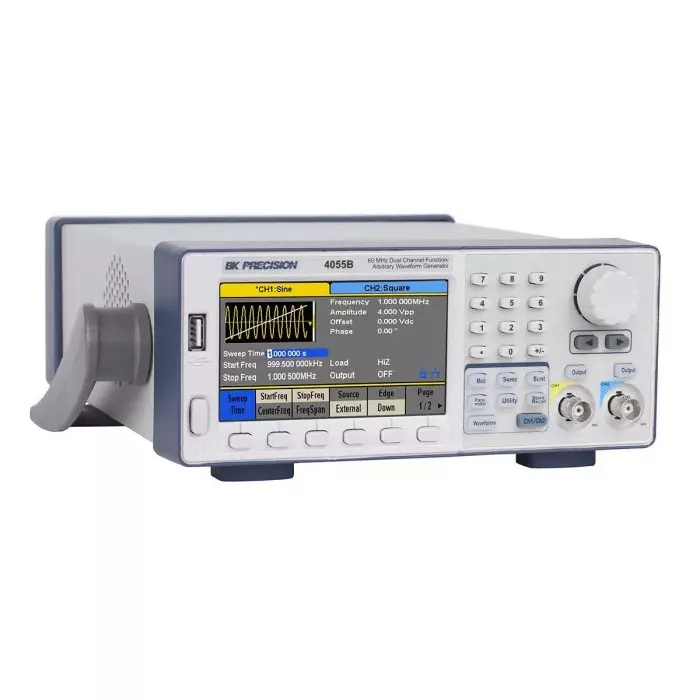

| Type of Product | Arbitrary Waveform Generator |
| Dimension | 213 x 281 x 89mm |
| Sweep | Linear, Logarithmic, Up or Down |
| Display Type | TFT LCD (320 x 240) |
Type of Product |
Arbitrary Waveform Generator |
Dimension |
213 x 281 x 89mm |
Sweep |
Linear, Logarithmic, Up or Down |
Display Type |
TFT LCD (320 x 240) |
Weight |
2.6kg |
Interface Type |
GPIB, USB |
Length |
213mm |
Maximum Operating Temperature |
+40°C |
Country of Origin |
Switzerland |
Width |
281mm |
Minimum Operating Temperature |
0°C |
Height |
89mm |
Minimum pulse width |
16ns |
Resolution |
4 Digit |
Connector Type |
BNC |
Maximum Storage |
10 |
Name of Manufacturer/Packer/Importer |
BK Precision |
Manufacturer Part Number |
BK4055B |
Maximum Sampling Frequency |
125Msps |
Arbitrary Waveforms |
Yes |
Minimum Frequency |
1 µHz |
Input |
Modulation In |
Calibrated |
RSCAL |
Maximum Frequency |
25 MHz, 50MHz |
Minimum Frequency Triangle Ramps |
1µHz |
Maximum Frequency Triangle Ramps |
300kHz |
Waveform Memory per Channel |
16k points |
Rise - Fall Time |
7ns |
Data Entry |
Keypad |
