| Type of Product | Vector Signal Generator |
| Model No | GSG-2060UG |
| Interface | LAN(Socket) / USB(USB-TMC) / GP-IB |
| Output | Built-in (LF) Pulse output |
Type of Product |
Vector Signal Generator |
Model No |
GSG-2060UG |
Interface |
LAN(Socket) / USB(USB-TMC) / GP-IB |
Output |
Built-in (LF) Pulse output |
Frequency Range |
9 kHz to 6GHz |
Country of Origin |
Japan |

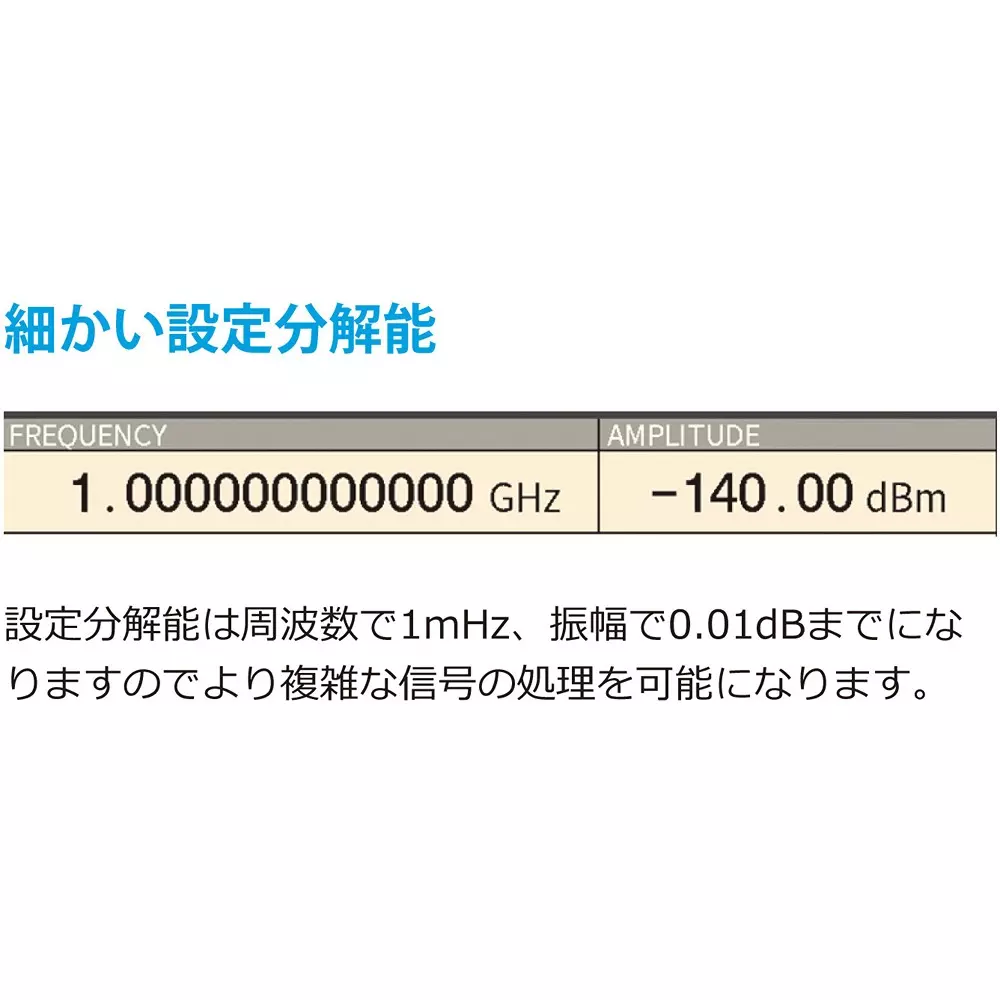

Resolution |
1Hz m |
Name of Manufacturer/Packer/Importer |
Texio Technology Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
17509795 |
Specifications |

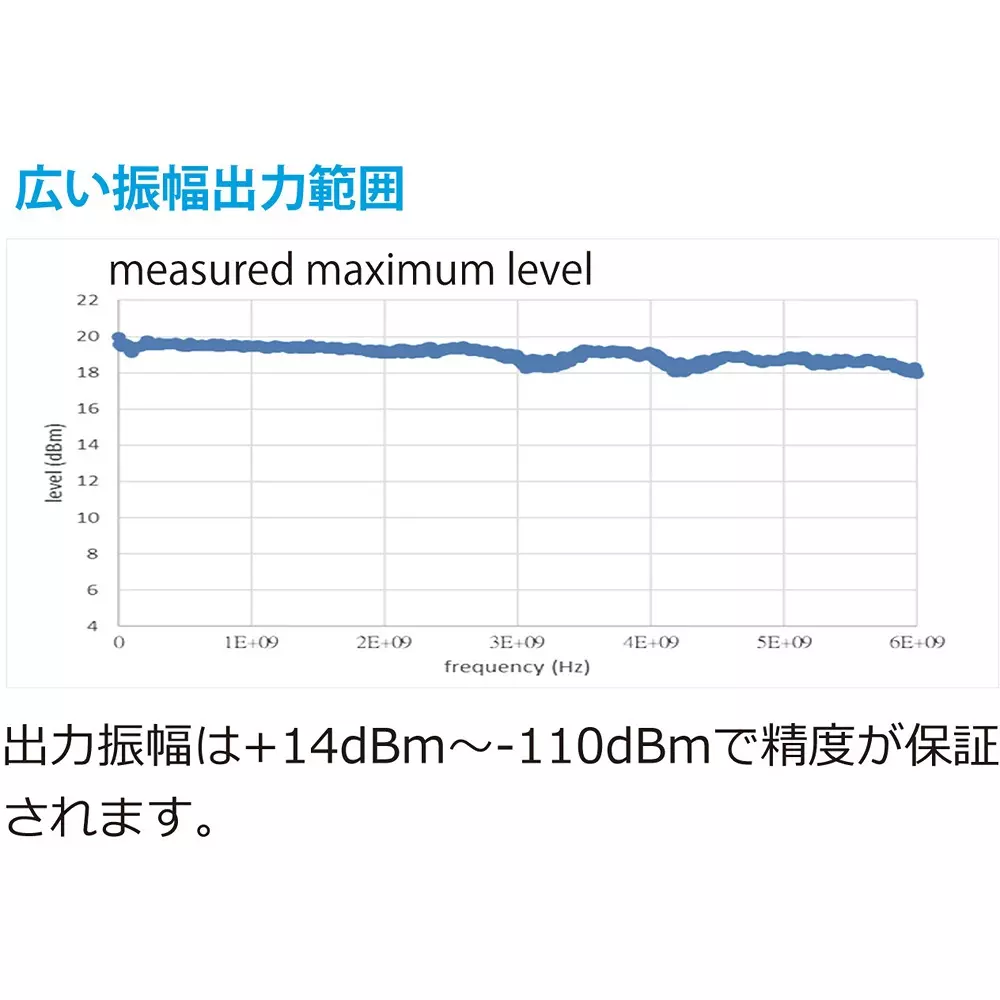

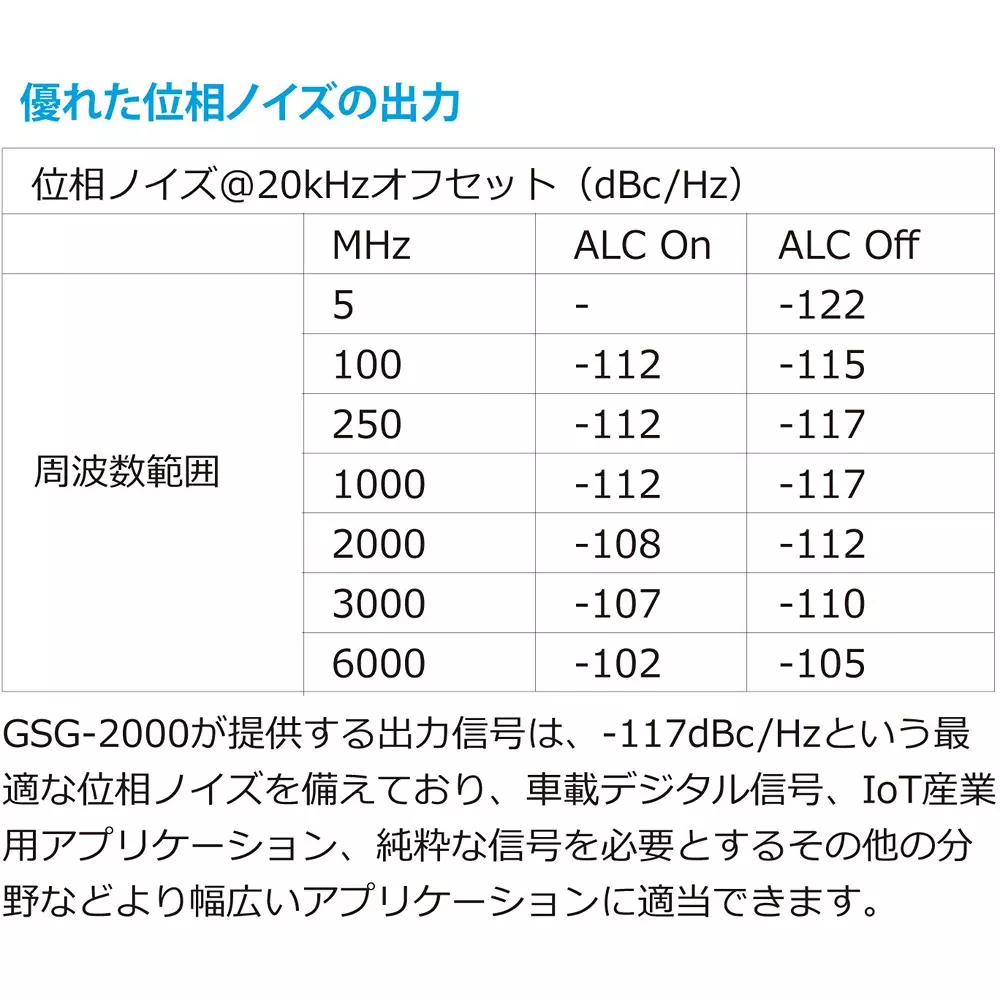

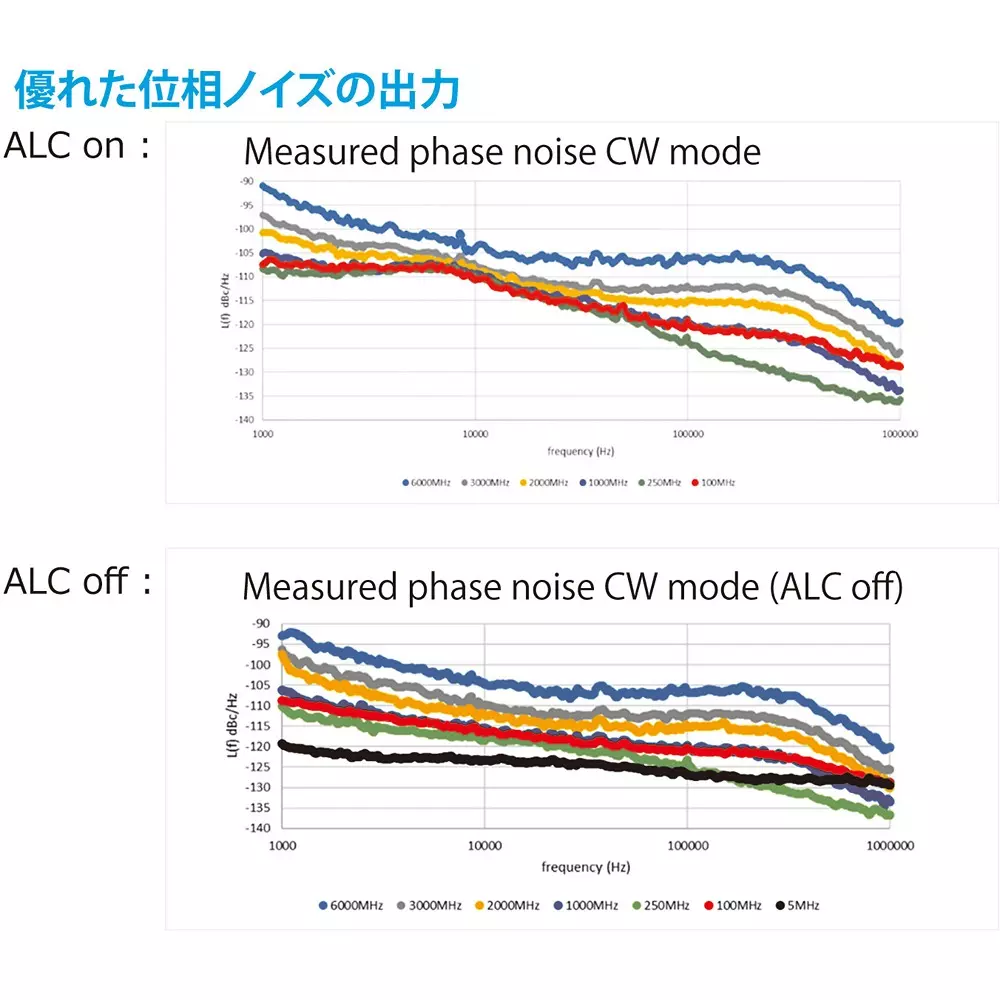

●IQ Modulation Signal Output Support: None ●Phase Noise: <-117dBc/Hz (typ.) @ 1GHz output, 20kHz offset ●Frequency and Amplitude Switching Speed: ≤5ms ●Amplitude Range: -140dBm to +20dBm ●Amplitude Setting Resolution: 0.01dBm, Amplitude Units: dBm, dBμV, Vrms Unit |
RoHS Directive |
Correspondence |
Suitable For |
Built-in AM, FM, and PM analog signal modulation capabilities. |
Temperature stability |
<10ppb temperature stability, 0.1 PPM/year aging rate |
Signal System |
analog |
