Ships within 3 days
View
View
View
View
| Type of Product | DDS Function Generator |
| Model No | DDS-70 |
| Channel | 2 |
| Size | 200 x 68.5 x 75 mm |
Type of Product |
DDS Function Generator |
Model No |
DDS-70 |
Channel |
2 |
Size |
200 x 68.5 x 75 mm |
Type |
AM, FM, PM, FSK |
Country of Origin |
India |
Frequency Stability |
±30 ppm at 0±40℃ |
Output Frequency |
70 MHz |
Sampling time |
500 MSa/s |
Name of Manufacturer/Packer/Importer |
Rameshtha Enterprises |
Communication Interface |
USB Device |
Frequency Resolution |
1μHz or 7 significant figures |
Vertical Resolution |
14 bits |
DC Offset Range (AD+DC) |
±(10 Vpk – Amplitude Vpp/2) high resistance ±(5 Vpk – Amplitude Vpp/2) 50 Ω |
DC Offset Range Resolution |
1mV or 4 digits |
Load impedance |
50Ω (typical) |

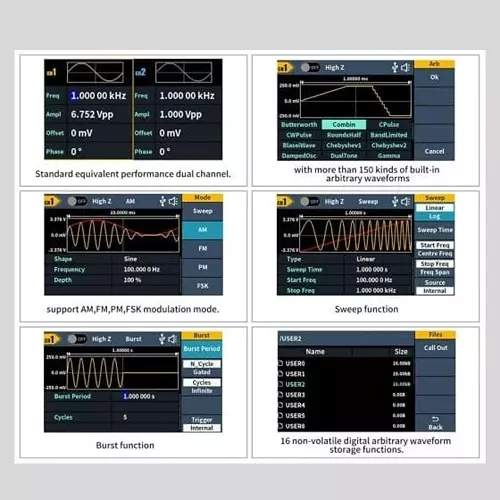

Standard Waveform |
Sine, Square, Pulse, Ramp, Noise |
Frequency Aging Rate |
±30 ppm per year |
Internal Modulation Frequency |
2 mHz to 100 kHz |
