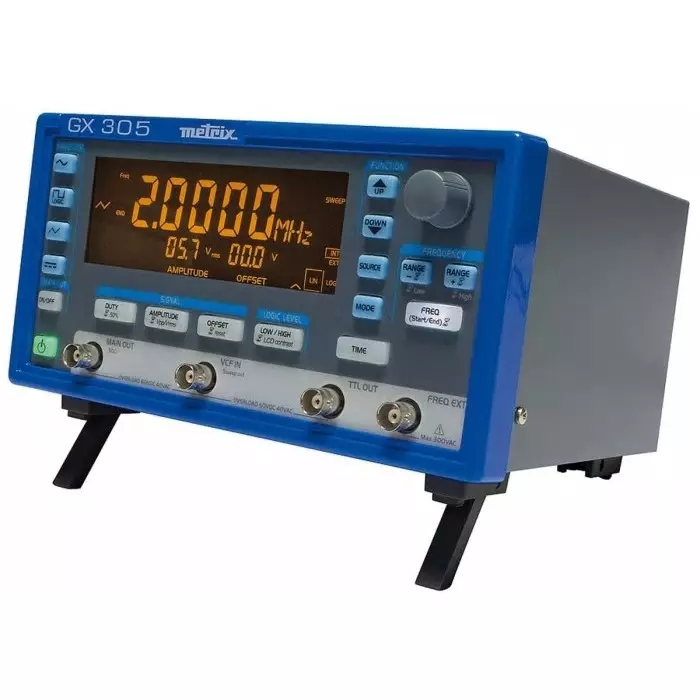

| Type of Product | GX 305 Function Generator |
| Attenuation | \\u003c 5% |
| Dimension | 227 x 116 x 180mm |
| Model No | GX 305 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
GX 305 Function Generator |
Attenuation |
\\u003c 5% |
Dimension |
227 x 116 x 180mm |
Model No |
GX 305 |
Output Amplitude |
From 0 to 20 Vpp |
Output Impedance |
50 Ω |
Weight |
2.8kg |
Interface Type |
Ethernet, USB |
Length |
227mm |
Plug Type |
RJ45 |
Maximum Operating Temperature |
+40°C |
Country of Origin |
France |
Width |
227mm |
Minimum Operating Temperature |
0°C |
Height |
116mm |
Pack of |
Each of 1 Piece |
Name of Manufacturer/Packer/Importer |
Metrix |
Maximum Frequency Range Sinewave |
2MHz |
Maximum Frequency Range Triangle/Saw |
2MHz |
Maximum Frequency Range (Triangle/Saw) |
2MHz |
Minimum Frequency Range Sinewave |
0.001Hz |
Minimum Frequency Range (Sinewave) |
0.001Hz |
Maximum Frequency Range (Sinewave) |
5MHz |
Minimum Frequency Range Triangle/Saw |
0.001Hz |
Maximum Frequency Range Square Pulse and Arbitrary Waveform |
5MHz |
Frequency Range Square Pulse and Arbitrary Waveform |
0.001 Hz - 5 MHz |
TTL Output Level |
5V |
Digital Frequency |
Yes |
Internal and External Amplitude Modulation |
Yes |
Digital Amplitude and Offset |
Yes |
Minimum Frequency Range Square Pulse and Arbitrary Waveform |
0.001 Hz |
Internal Linear and Log Sweep |
Yes |
Variable Sweep |
Yes |
Maximum Frequency Range (Square, Pulse and Arbitrary Waveform) |
5MHz |
Minimum Frequency Range (Square, Pulse and Arbitrary Waveform) |
0.001 Hz |
Frequency Range (Square, Pulse and Arbitrary Waveform) |
0.001 Hz - 5 MHz |
Minimum Frequency Range (Triangle/Saw) |
0.001Hz |
Manufacturer Model Number |
GX305 |
CMOS Output Level |
20V |
Time Base Accuracy |
-1 30 ppm for F \\u003c 10 kHz, -1 20 ppm for F \xe2\x89\xa5 10 kHz |
